These models are for veritcal regulators, or foregrip expansion chambers. Most of these models use tyical 1/2-NPS tank threads which was at one point the standard connection for vertical regs, but has since been left behind by many manufacturers.
Part: CP vertical v1
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: Assembly file for the regulator with all internals. This regulator is the "old style" from around 2005 (I believe). The difference between the older v1 and newer v2 lies with the design of the piston and surrounding reg body middle section. The overall design remained mostly unchanged and the o-rings are the same for both.
Description: Assembly file for the regulator with all internals. This regulator is the "old style" from around 2005 (I believe). The difference between the older v1 and newer v2 lies with the design of the piston and surrounding reg body middle section. The overall design remained mostly unchanged and the o-rings are the same for both.
Part: Centerflag vertical reg
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

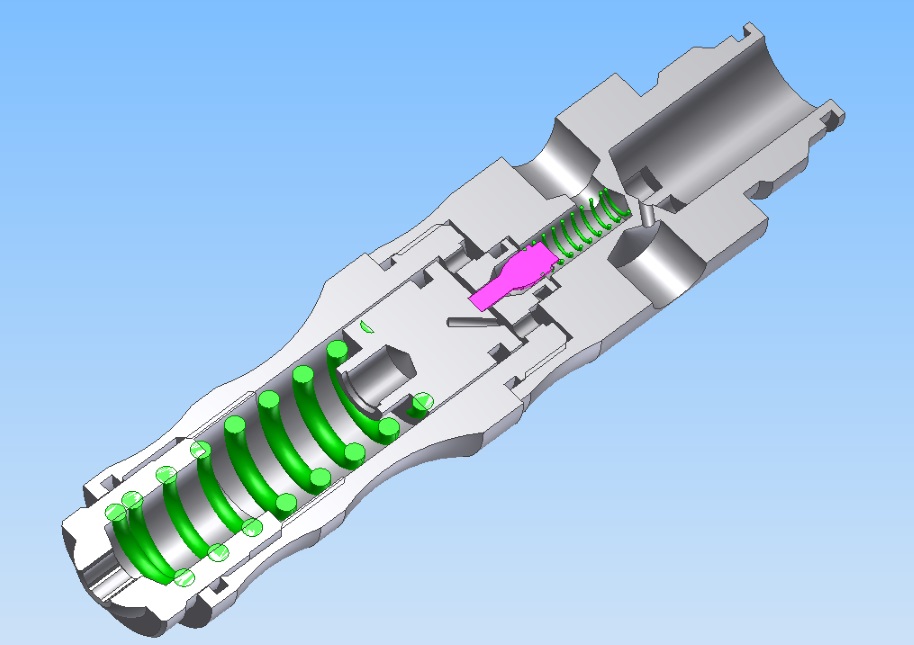

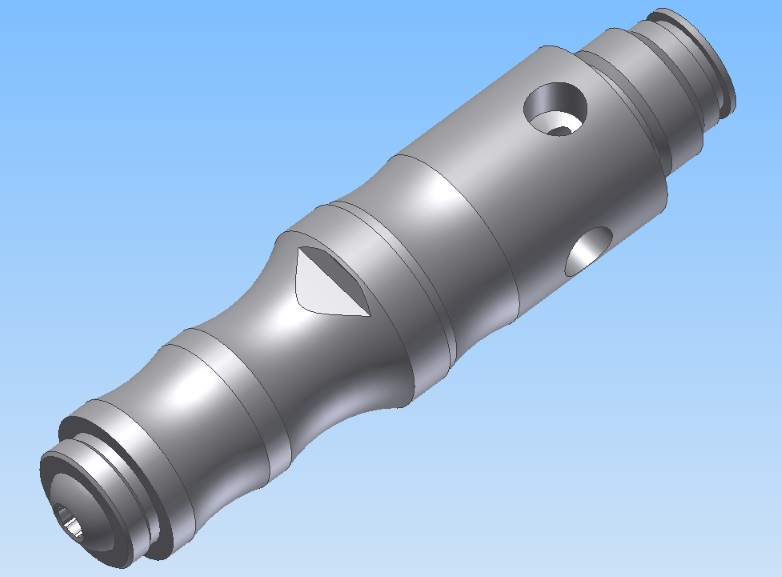

Description: Assembly file for a Centerflag low-pressure regulator. It has gauge ports on the side but they aren't being used in the assembly file.
Description: Assembly file for a Centerflag low-pressure regulator. It has gauge ports on the side but they aren't being used in the assembly file.
Part: Smart Parts Shocker SFT vertical Max-Flo reg
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

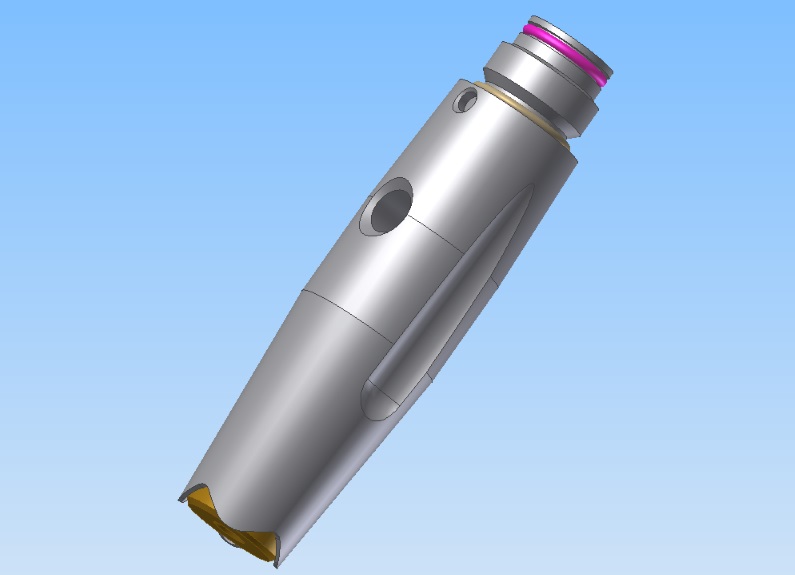

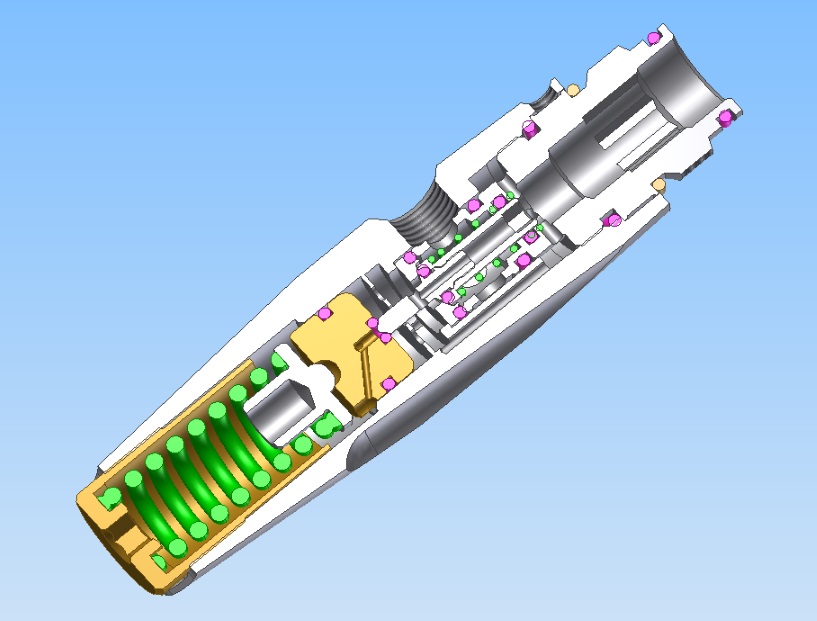

Description: This regulator is used on Shocker SFTs and Nerves. The regulator body is the only part that varies from marker to marker (including private label markers); the model in this assembly file is for a base model Shocker SFT.
This assembly file includes the internal springs, but obviously they aren't accurate depending on the regulator's state.
Updated September 2014 to reflect the two-piece poppet with an o-ring imbedded in the middle.
Description: This regulator is used on Shocker SFTs and Nerves. The regulator body is the only part that varies from marker to marker (including private label markers); the model in this assembly file is for a base model Shocker SFT.
This assembly file includes the internal springs, but obviously they aren't accurate depending on the regulator's state.
Updated September 2014 to reflect the two-piece poppet with an o-ring imbedded in the middle.
Part: Eclipse Ego vertical reg
Formats:
Inventor 2008 assembly (.iam)
Inventor 2008 assembly (.iam)
Created by: James "balla245"

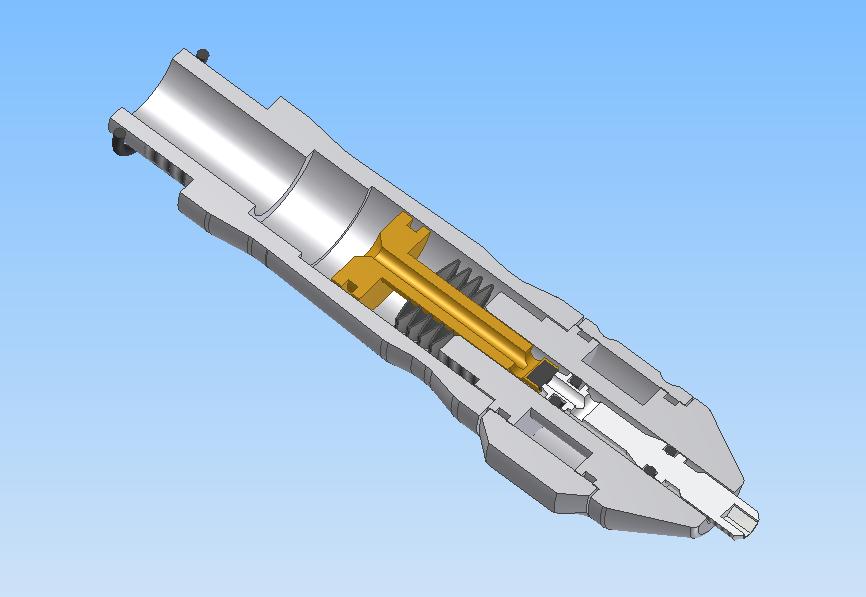

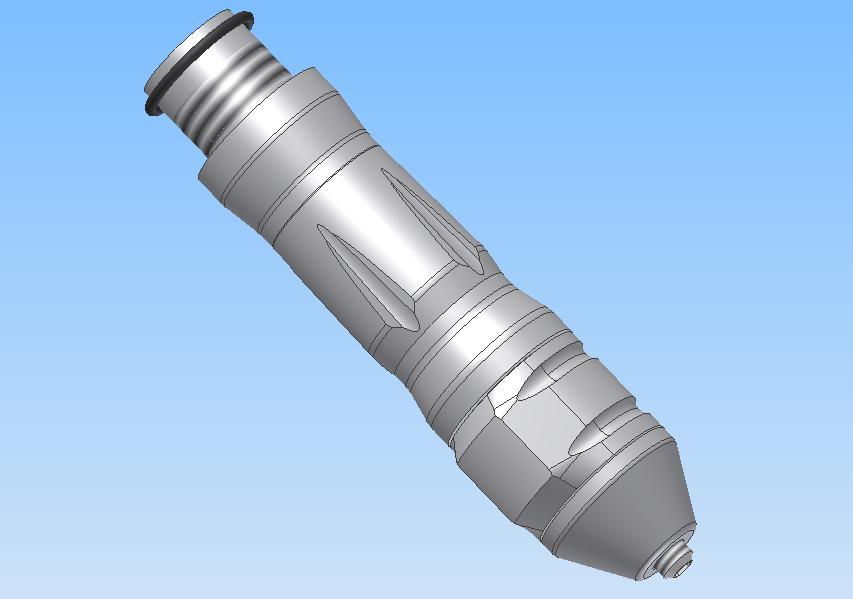

Description: Assembly file for an Ego vertical reg (HPR). The file isn't 100% complete but most features are included, including visuals on the outside. Not all related seals are included, but some are present.
Description: Assembly file for an Ego vertical reg (HPR). The file isn't 100% complete but most features are included, including visuals on the outside. Not all related seals are included, but some are present.
Smart Parts NXT-Ion regulators:
Part: Smart Parts Ion regulator
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

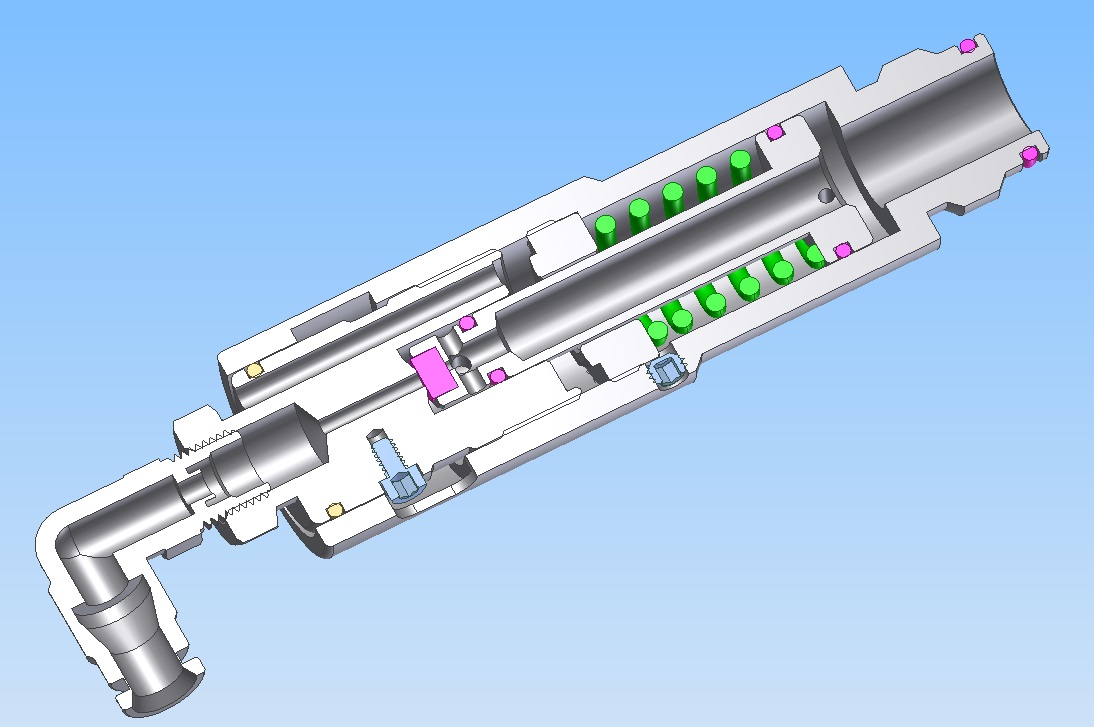

Description: Assembly file for an Ion regulator. This is only the machined internals, no regulator cover is shown.
Description: Assembly file for an Ion regulator. This is only the machined internals, no regulator cover is shown.
Part: Smart Parts Shocker NXT regulator body
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

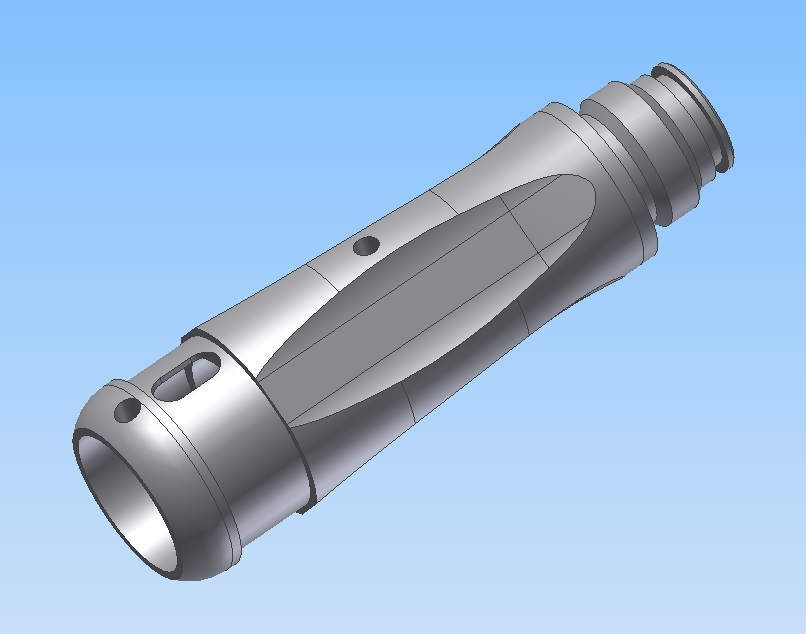

Description: This is functionally the same component as used in the Ion regulator, but the external design has been altered for a better grip shape and different cosmetic milling.
Description: This is functionally the same component as used in the Ion regulator, but the external design has been altered for a better grip shape and different cosmetic milling.
