J4Paintball has created several open-source files for home use, either by 3D printer or other equipment. At the time of this writing, a section of their website is devoted to open source files of this nature.

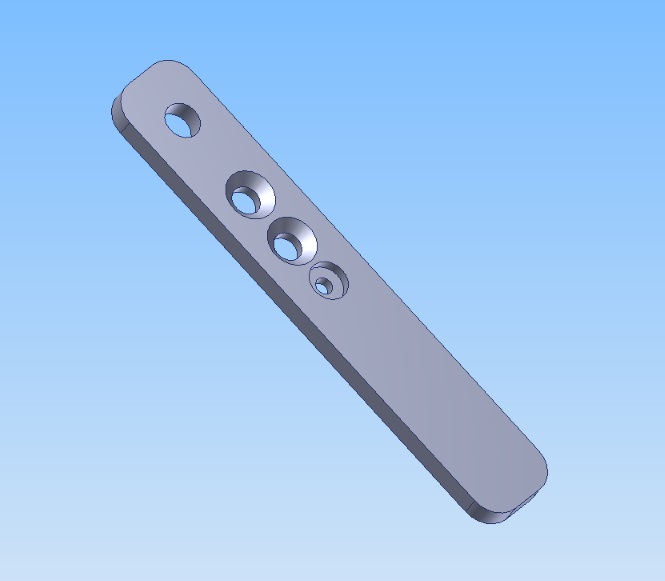

Part: Backcover
Formats:
Solidworks 2013 part (.sldprt)
Solidworks 2013 part (.sldprt)
Created by: Josh 'PBJosh' Coray via J4 Paintball
Description: Official model for the stock back cover component, installed on the rear of a Torque frame.
Description: Official model for the stock back cover component, installed on the rear of a Torque frame.

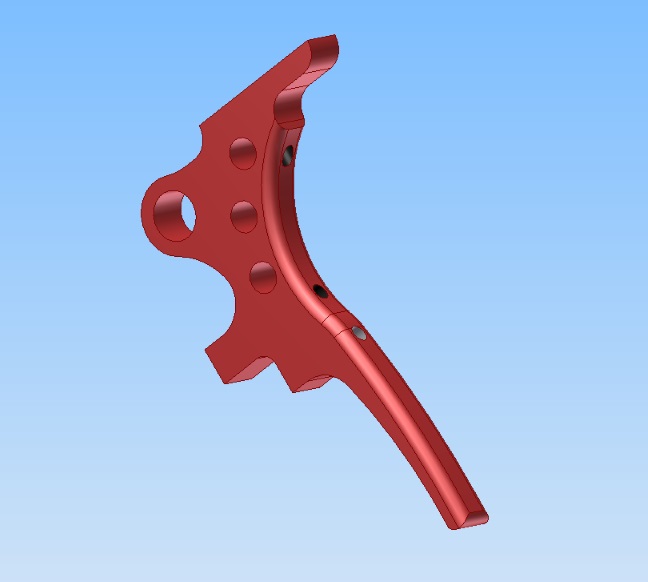

Part: Stock trigger
Formats:
Solidworks 2013 part (.sldprt)
Solidworks 2013 part (.sldprt)
Created by: Josh 'PBJosh' Coray via J4 Paintball
Description: Here's the official Torque model, able to be modified as you see fit. Adjustment screw holes are modeled directly into the file, with a diameter suitable for 4-40 set screws. After creating a 3d printed file you will need to manually tap the hole, and possibly chase through it with a drill bit beforehand (use a drill size #43 for a 4-40 thread).
Description: Here's the official Torque model, able to be modified as you see fit. Adjustment screw holes are modeled directly into the file, with a diameter suitable for 4-40 set screws. After creating a 3d printed file you will need to manually tap the hole, and possibly chase through it with a drill bit beforehand (use a drill size #43 for a 4-40 thread).

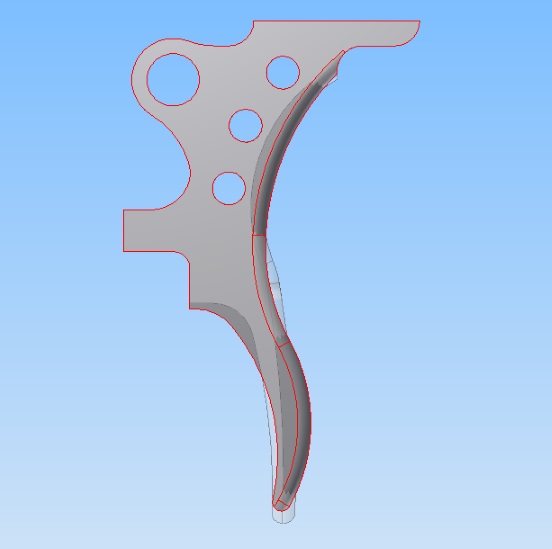

Part: 3d printable trigger, "Style S"
Created by: Ydna
Description: I made a few alternate Torque triggers using the original model as a base. This one is similar to the Torque stock trigger but has a more exaggerated shape.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Description: I made a few alternate Torque triggers using the original model as a base. This one is similar to the Torque stock trigger but has a more exaggerated shape.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.

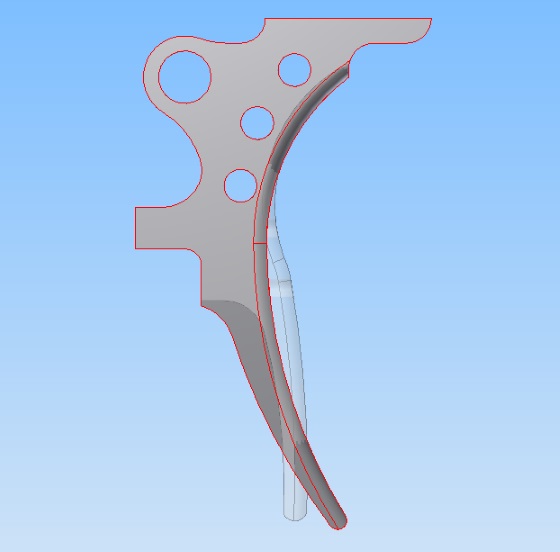

Part: 3d printable trigger, "Style C"
Created by: Ydna
Description: I made a few alternate Torque triggers using the original model as a base. This one is a curved C-shape.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Description: I made a few alternate Torque triggers using the original model as a base. This one is a curved C-shape.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.

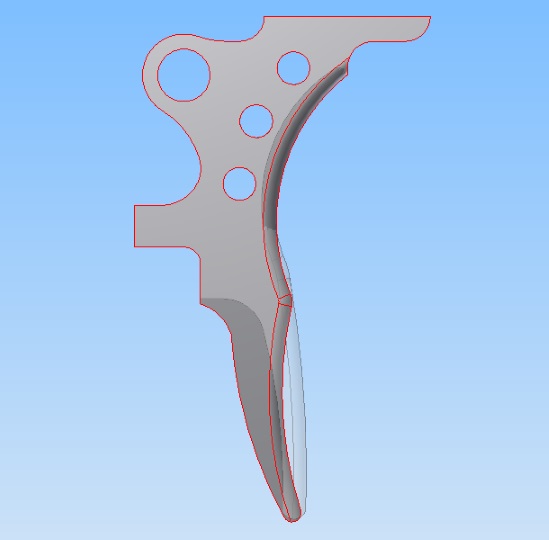

Part: 3d printable trigger, "Style E"
Created by: Ydna
Description: I made a few alternate Torque triggers using the original model as a base. This version is a fairly traditional "standard double trigger", similar to the trigger used by Nerves and Dynasty Shockers.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Description: I made a few alternate Torque triggers using the original model as a base. This version is a fairly traditional "standard double trigger", similar to the trigger used by Nerves and Dynasty Shockers.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.

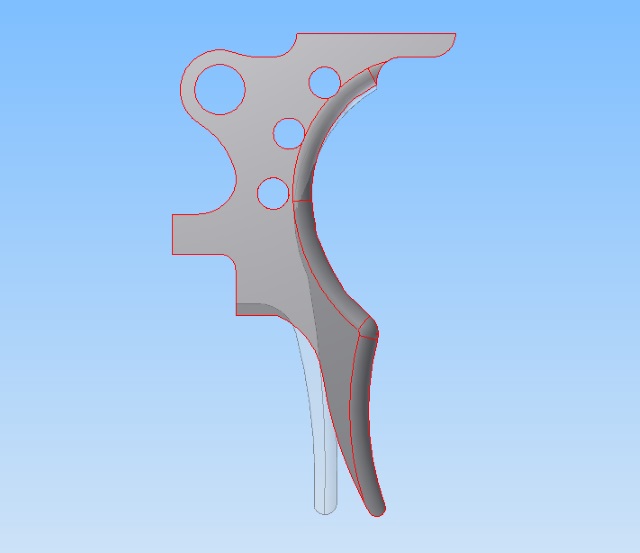

Part: 3d printable trigger, "Style EF"
Created by: Ydna
Description: I made a few alternate Torque triggers using the original model as a base. This one is similar to the standard double trigger but slanted forward toward the bottom.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Description: I made a few alternate Torque triggers using the original model as a base. This one is similar to the standard double trigger but slanted forward toward the bottom.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.

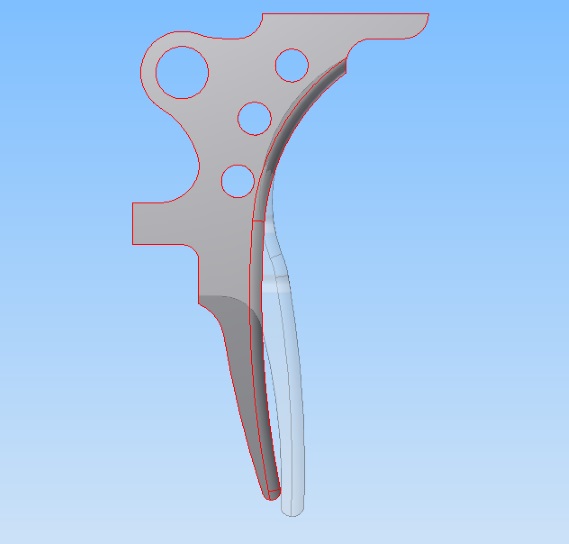

Part: 3d printable trigger, "Style L"
Created by: Ydna
Description: I made a few alternate Torque triggers using the original model as a base. This version is a straight blade trigger with a very slight curve. It's similar to the stock trigger on Luxes or a more straight version of the Shocker SFT stock trigger.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Description: I made a few alternate Torque triggers using the original model as a base. This version is a straight blade trigger with a very slight curve. It's similar to the stock trigger on Luxes or a more straight version of the Shocker SFT stock trigger.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Part: 3d printable trigger, "Style LBT"
Created by: Ydna
Description: I made a few alternate Torque triggers using the original model as a base. This version is similar shape to the Style-L "blade" trigger, but it has a wider base. It's commonly referred to as a beavertail blade; this unique shape is a "love it or hate it" design. A trigger shaped somewhat like this was used on Nasty Shockers back in 2005-2006.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Description: I made a few alternate Torque triggers using the original model as a base. This version is similar shape to the Style-L "blade" trigger, but it has a wider base. It's commonly referred to as a beavertail blade; this unique shape is a "love it or hate it" design. A trigger shaped somewhat like this was used on Nasty Shockers back in 2005-2006.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.

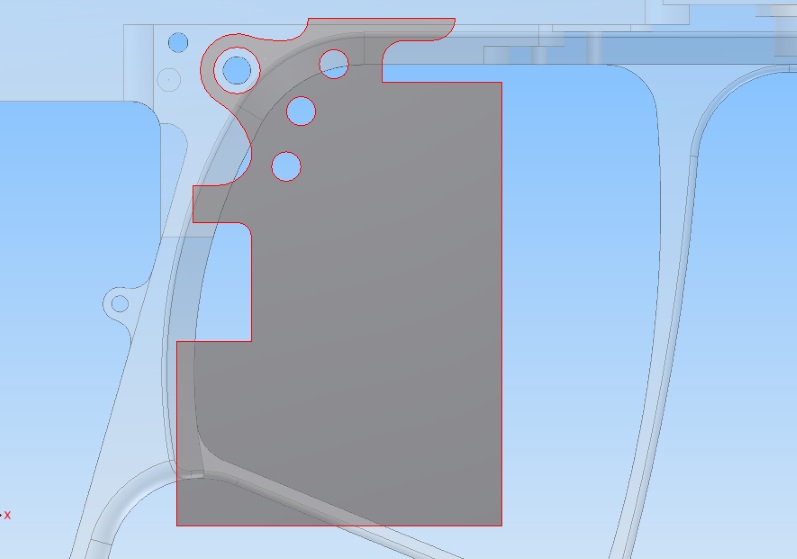

Part: 3d printable trigger solid template
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: I created this template model to use as a starting point when creating new trigger shapes. This model has the "functional" aspects of the trigger, and a big chunk of material on the front which is ripe for modification.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Description: I created this template model to use as a starting point when creating new trigger shapes. This model has the "functional" aspects of the trigger, and a big chunk of material on the front which is ripe for modification.
Please note the screw holes modeled in this trigger are sized for a 6-32 or 6-40 set screw.
Common parts:
Check the CAD file post index for links to universal parts which are compatible between multiple markers. This may include feednecks, regulators, air fittings, solenoids, and others.
