These models are for bottomline "screw-in" tank regulators. They all use 1/2-NPS "tank threads" and mate with an ASA adapter. There are no official specifications for the ASA connection, so every developer has their own minor variations used in their design.

HPA Tank Systems:

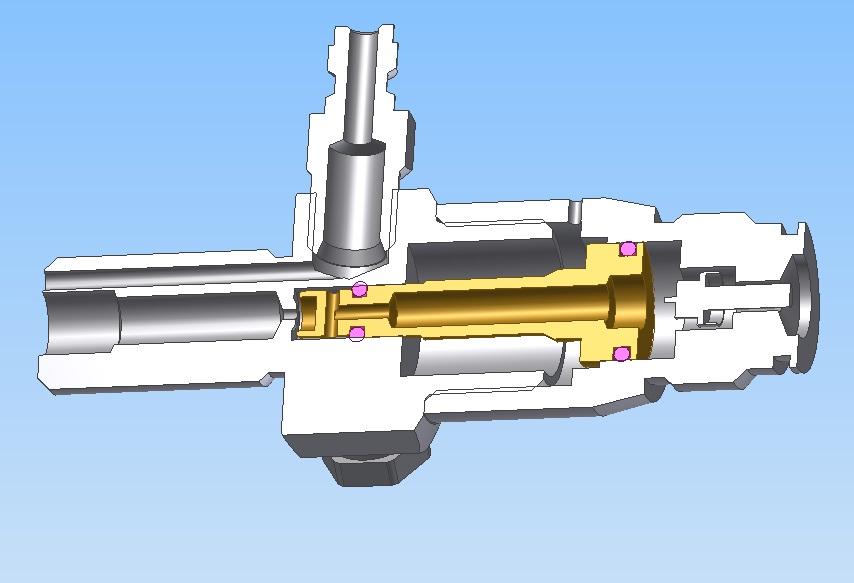

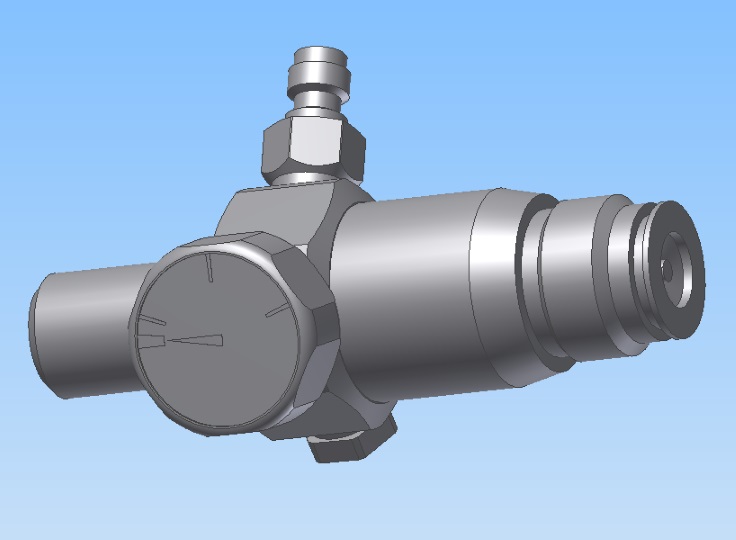

Part: Centerflag tank reg
Centerflag tank reg
Centerflag tank reg
Created by: Ydna
Description: Assembly file for a Centerflag preset tank regulator with most internals. The o-rings used in the assembly file may not be accurate.

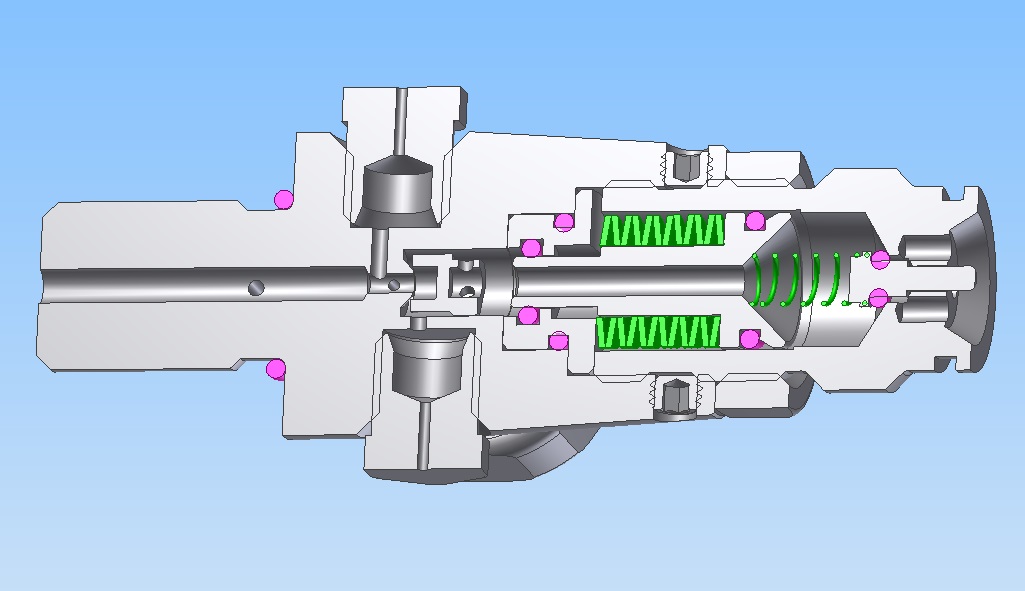

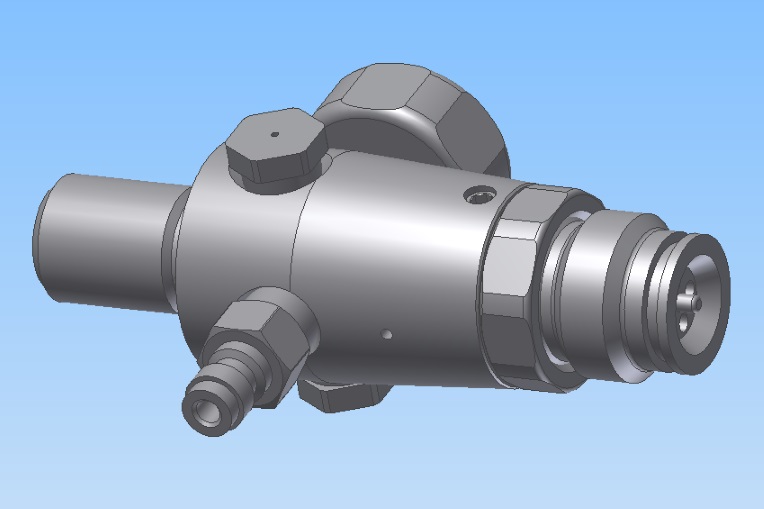

Part: CP tank reg
CP tank reg
CP tank reg
Created by: Ydna
Description: Assembly file for a CP preset tank regulator with most internals. I couldn't get the base seal apart so I didn't model it.

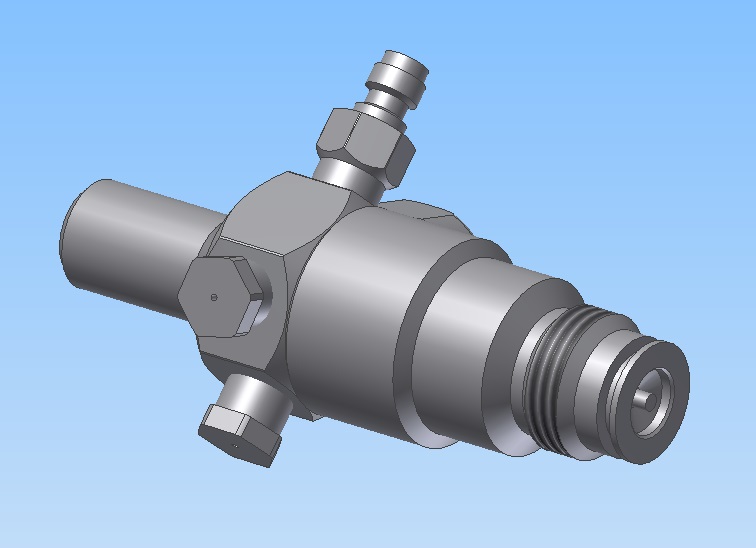

Part: Crossfire tank reg demo
Crossfire tank reg demo
Created by: Ydna
Description: Assembly file that uses outside dimensions for a CP preset tank regulator. There are no internals.

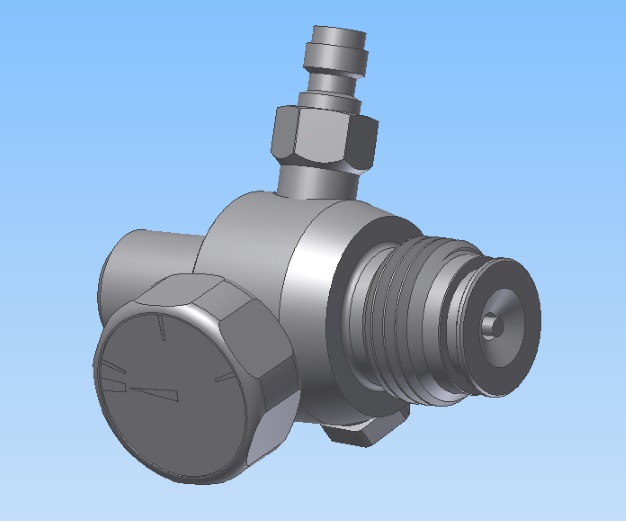

Part: Guerilla Air Myth tank reg demo
Guerilla Air Myth tank reg demo
Created by: Ydna
Description: Assembly file that uses outside dimensions for a Guerilla Air Myth preset tank regulator. There are no internals.

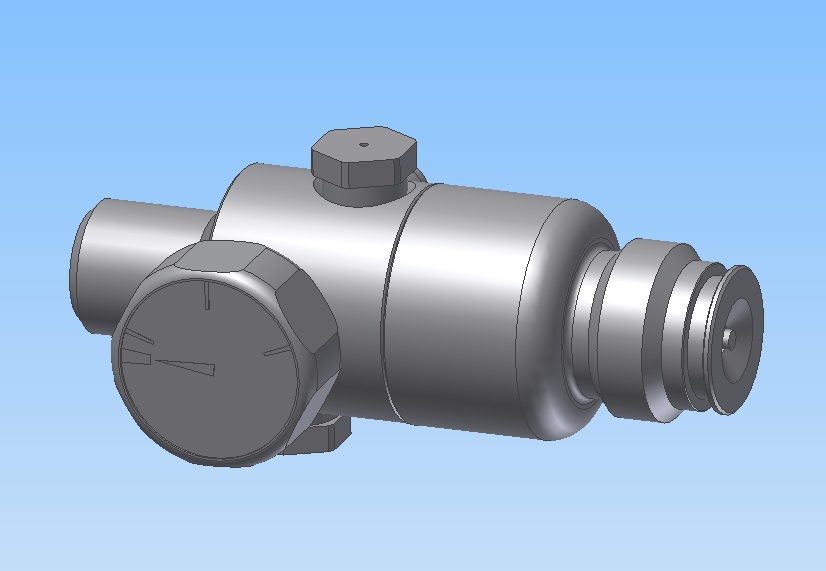

Part: PMI Pure Energy tank reg demo
PMI Pure Energy tank reg demo
Created by: Ydna
Description: Assembly file that uses outside dimensions for a PMI Pure Energy preset tank regulator. There are no internals.

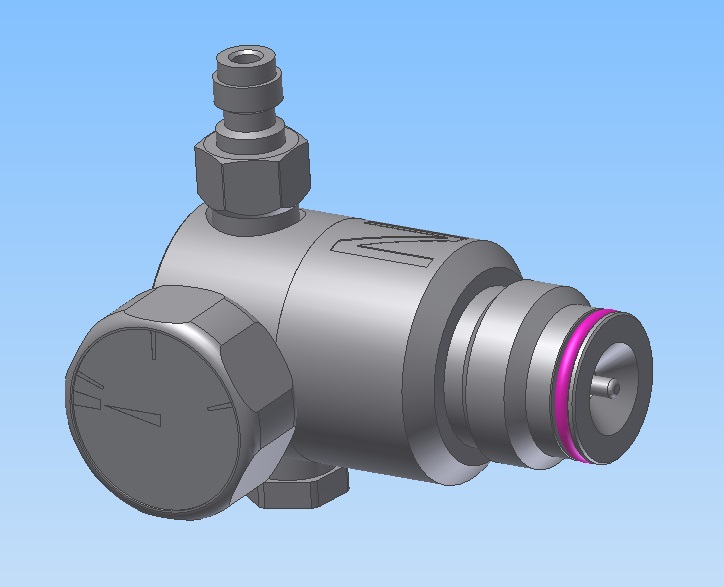

Part: Ninja v1 tank reg demo
Ninja v1 tank reg demo
Created by: Ydna
Description: Assembly file that uses outside dimensions for a Ninja v1 regulator. This is their original tank reg system which predates the "Pro" regs. There are no internals.

Part: Ninja Pro-v2 tank reg demo
Ninja Pro-v2 tank reg
Ninja Pro-v2 tank reg
Created by: Ydna
Description: Assembly file for a Ninja Pro-v2 preset tank regulator with most internals. Piston dimensions may not be accurate.

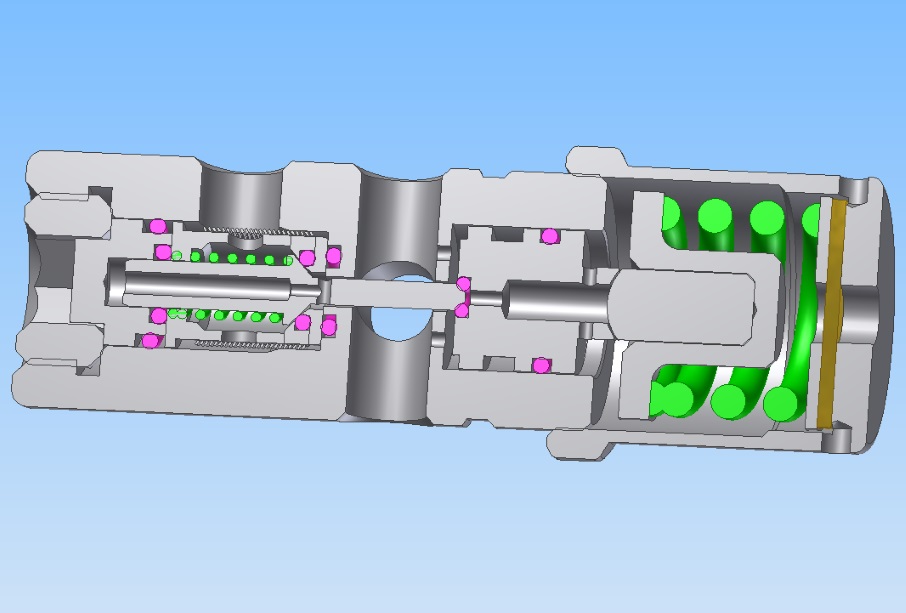

Part: Smart Parts Max-Flo manifold regulator
Smart Parts Max-Flo manifold regulator
Smart Parts Max-Flo manifold regulator
Created by: Ydna
Description: This regulator was used between 1998-2003 on Shocker Sports, Ultimate-package Shocker SFTs (2003 only), and classic Impulses. A variation of this was also used as the classic Impulse vertical regulator until around 2004. The adjustment endcap has changed a few times over the years, one version of which is modeled here (what I refer to as the "2000 series" short endcap). The same components were also used with the Max-Flo 4500 tank systems, and the short-lived Max-Flo 3000 systems. I don't have the models up for the actual "manifold" components though.
Update: O-rings added in September 2014.

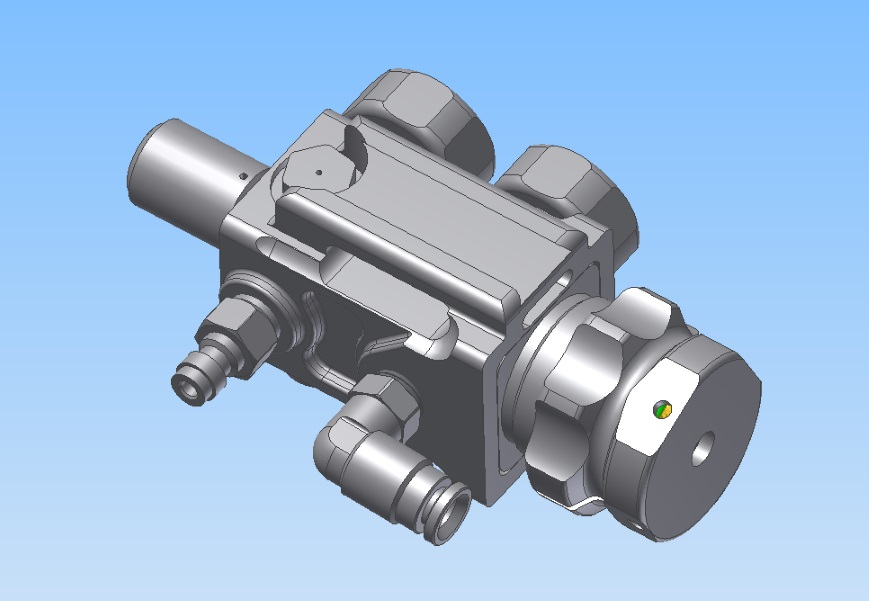

Part: Smart Parts Max-Flo Inline (MF-I) regulator
Smart Parts Max-Flo Inline (MF-I) regulator
Smart Parts Max-Flo Inline (MF-I) regulator
Created by: Ydna
Description: Assembly model for a Max-Flo Inline adjustable regulator system. The parts used in this model are the high-pressure output version with a smaller piston and surrounding housing.
Updated in September 2014 to reflect the two-piece poppet with an o-ring imbedded in the middle.

Part: HPA tank, 68 cubic inch, standard length
HPA tank, 68 cubic inch, standard length
Created by: Ydna
Description: A common 68-cu HPA tank.

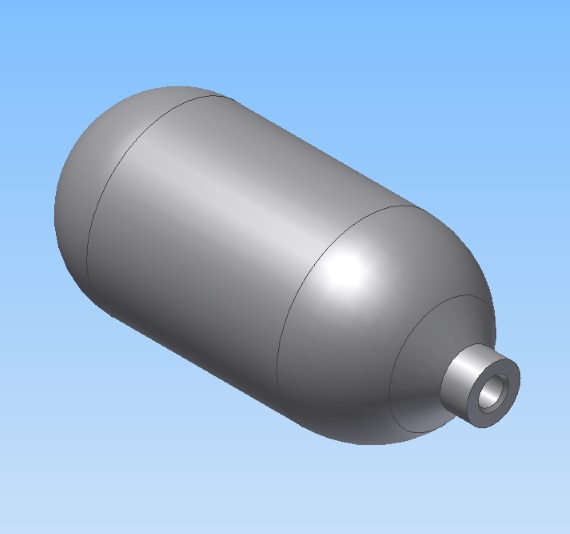

Part: HPA tank, 45 cubic inch
HPA tank, 45 cubic inch
Created by: Ydna
Description: A common 45-cu HPA tank.

CO2 Tank Systems:

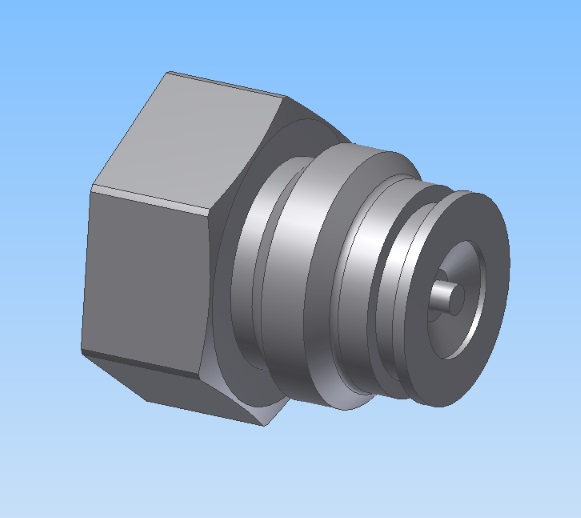

Part: CO2 tank valve demo
CO2 tank valve demo
Created by: Ydna
Description: This file uses outside dimensions for a typical CO2 tank valve. These vary between manufacturers but the differences are generally minor.

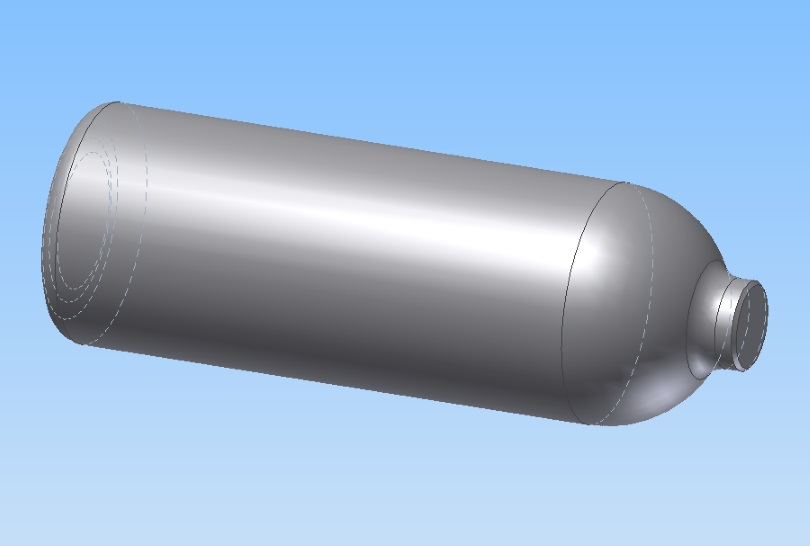

Part: CO2 tank, 20-ounce
CO2 tank, 20-ounce
Created by: Ydna
Description: A common 20 ounce CO2 tank.

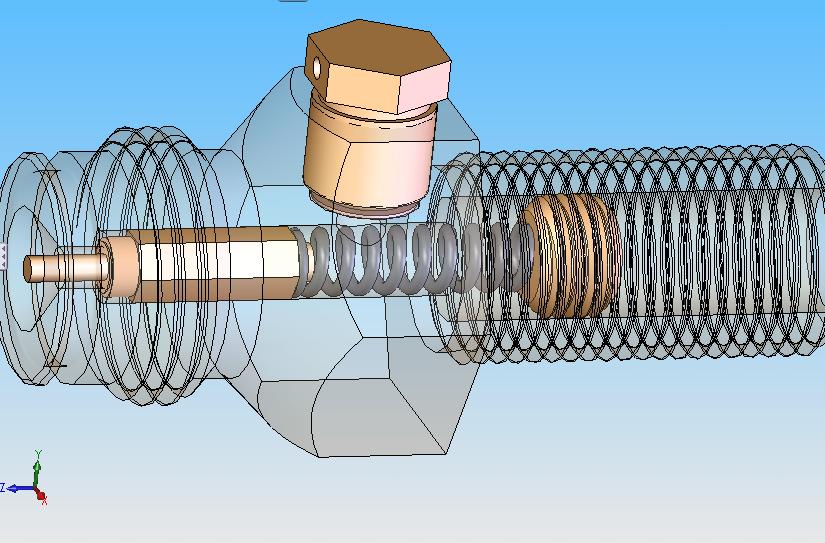

Part: CO2 tank assembly
CO2 tank assembly
CO2 tank assembly
Created by: Ydna
Description: This is a Catalina CO2 tank assembly, with all internal components, but no o-rings. Included is an assembly file for the CO2 valve, then another larger assembly file that includes both the CO2 valve assembly as well as the tank part file.
