Models for the Dye Proto Rail marker internals.

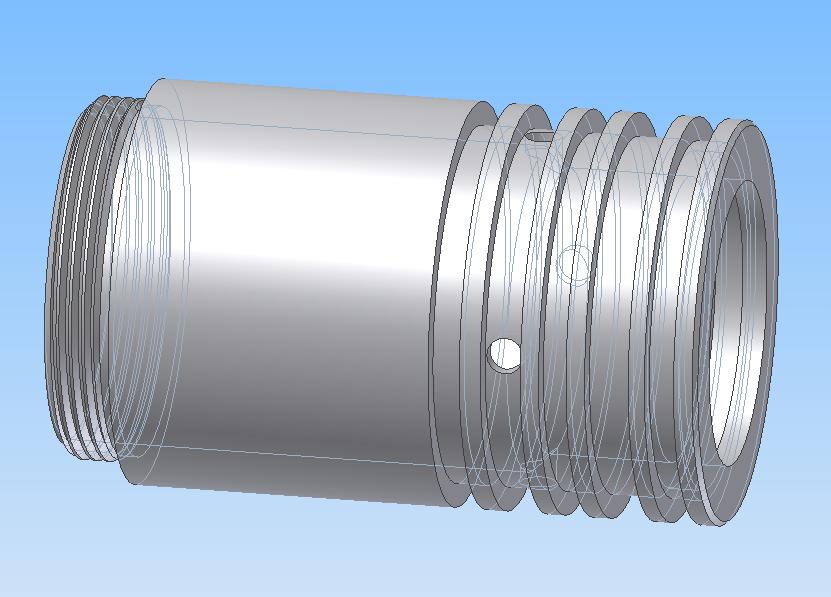

Part: Bolt can
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Bolt can (aka sleeve) that fits around the bolt itself. This threads up with the dump chamber housing.
Description: Bolt can (aka sleeve) that fits around the bolt itself. This threads up with the dump chamber housing.

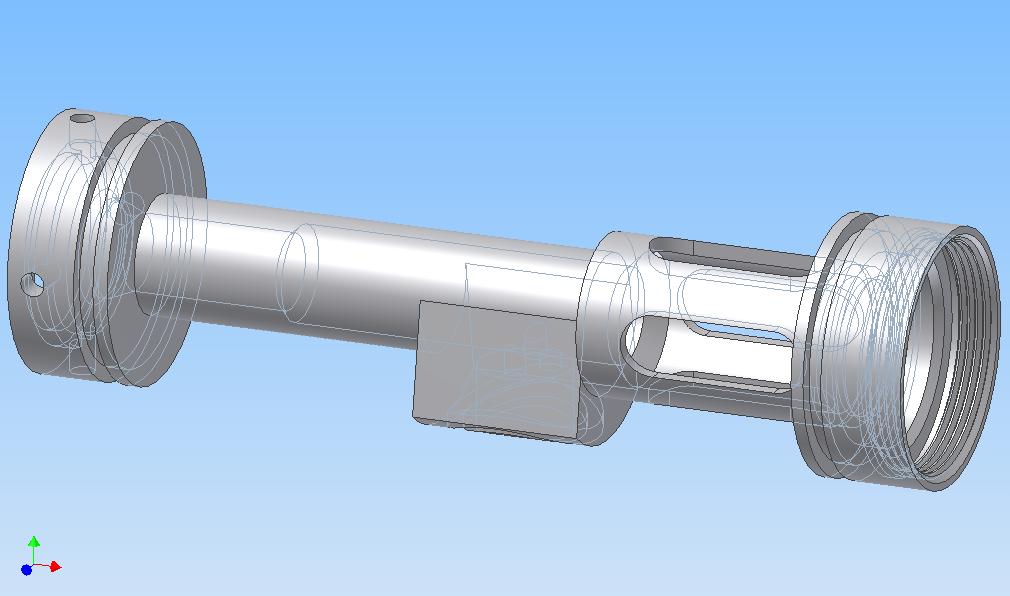

Part: Dump housing
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Semi-demo model for the dump housing partition. THe only inaccurate thing about this model is the side-sealing o-ring groove that's milled into the bottom of the component. The shape is accurate but in reality it's a ball-rounded groove cut around the side.
Description: Semi-demo model for the dump housing partition. THe only inaccurate thing about this model is the side-sealing o-ring groove that's milled into the bottom of the component. The shape is accurate but in reality it's a ball-rounded groove cut around the side.
Part: NDZ Endcap
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Endcap from NDZ. Included is the ball rounding handscrew on the rear as well as the quadriple-lead body threading. Set screws and o-rings not included.
Description: Endcap from NDZ. Included is the ball rounding handscrew on the rear as well as the quadriple-lead body threading. Set screws and o-rings not included.
