Here's some reverse-engineered models made for Invet/Empire Mini components. Many items are shared with Axes and Mini-GS markers too.
Part: Invert solenoid assembly
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

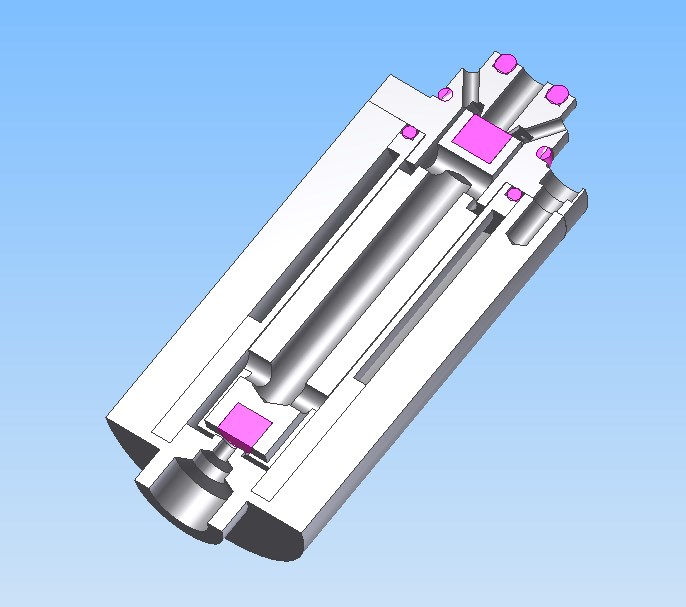

Description: A model showing the Mini solenoid and its internals. This is also applicable to the BT TM7 and TM15, Empire Axe, and Mini-GS.
Description: A model showing the Mini solenoid and its internals. This is also applicable to the BT TM7 and TM15, Empire Axe, and Mini-GS.
Part: Foregrip assembly
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

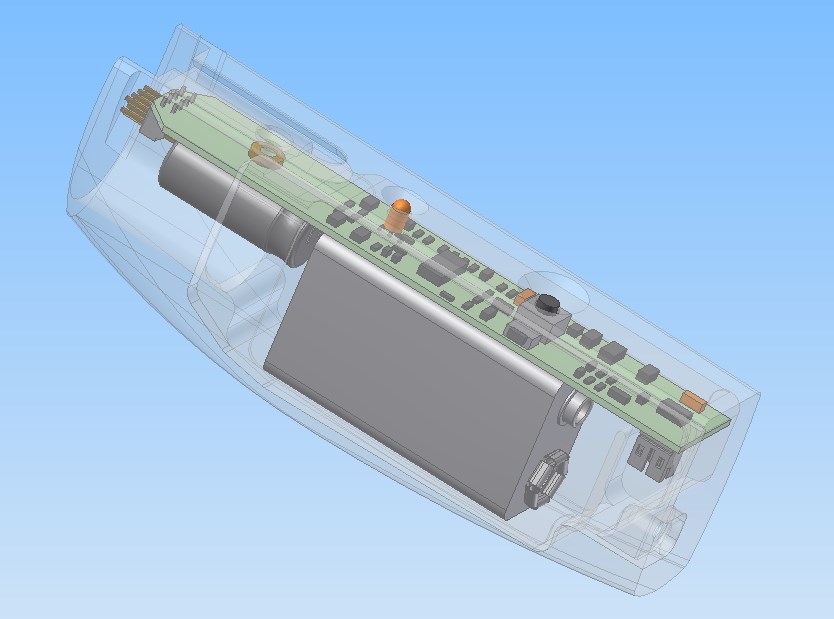

Description: Foregrip components along with the marker's mainboard. The board was one of the original Optimas Mini boards from 2006.
Description: Foregrip components along with the marker's mainboard. The board was one of the original Optimas Mini boards from 2006.

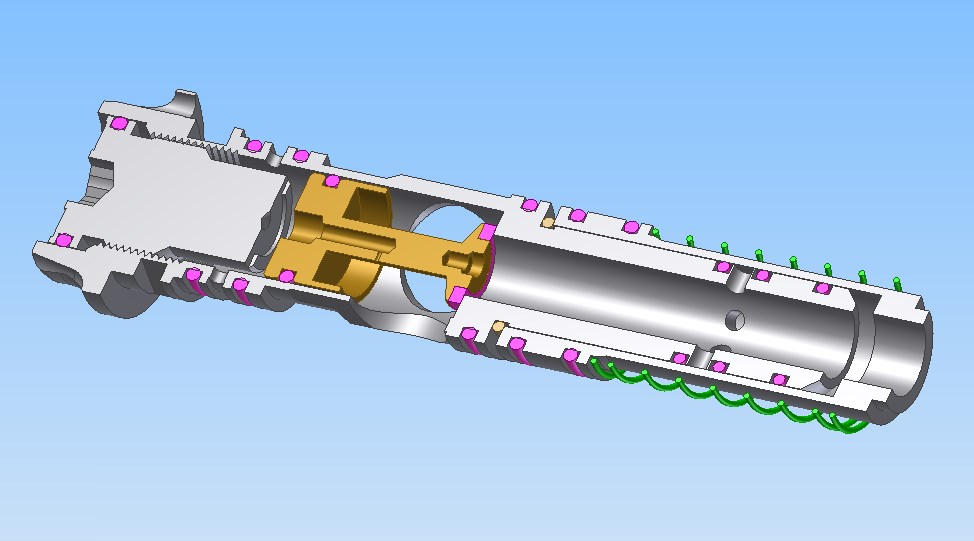

Part: Mini stock firing assembly
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: These models contain the bolt, bolt guide, firing poppet, and some associated parts. Please note the poppet is the original "version-1" which has a smaller air port, no spring, and a non-removeable front cupseal. Additinoally, the bolt spring is modeled in the marker's idle position (it's neither uncompressed nor fully compressed).
Description: These models contain the bolt, bolt guide, firing poppet, and some associated parts. Please note the poppet is the original "version-1" which has a smaller air port, no spring, and a non-removeable front cupseal. Additinoally, the bolt spring is modeled in the marker's idle position (it's neither uncompressed nor fully compressed).
Part: Frame (stock)
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna

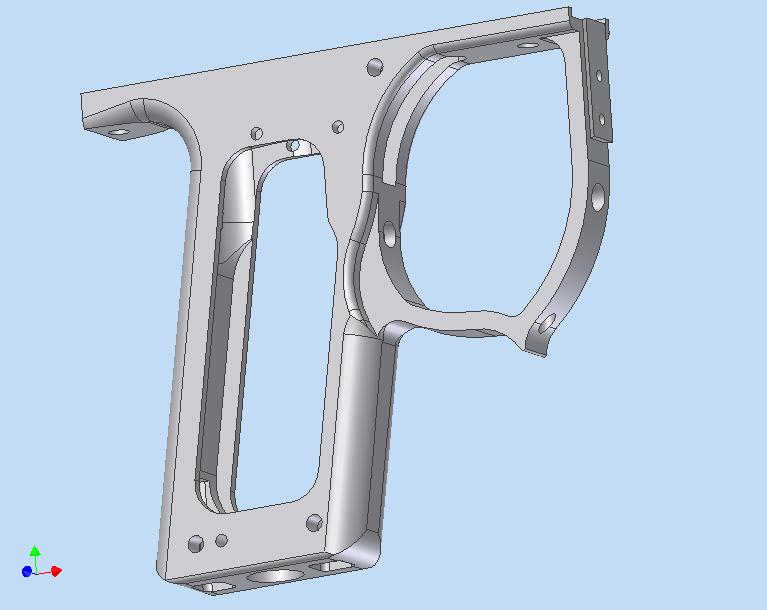

Description: Stock frame. This is reasonably accurate however some of the general shape was estimated in order to make the final part look correct.
Description: Stock frame. This is reasonably accurate however some of the general shape was estimated in order to make the final part look correct.
Part: Air transfer plate
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna

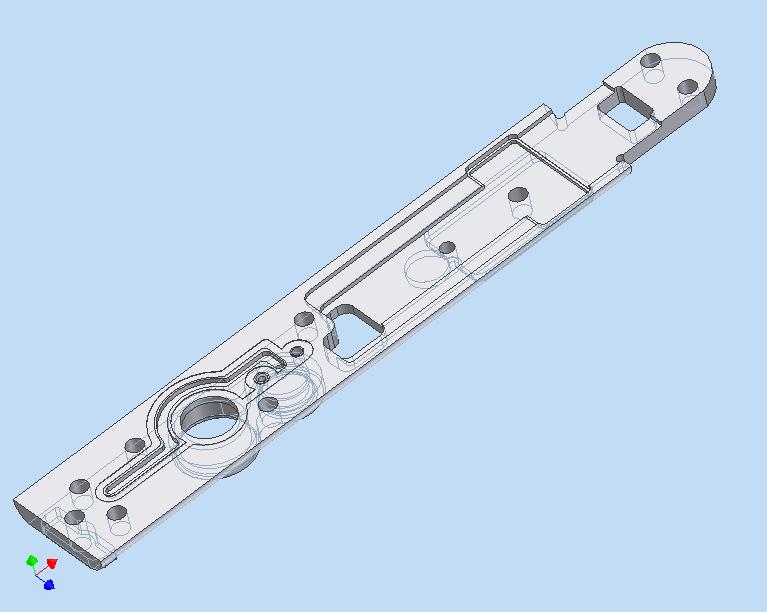

Description: Air transfer plate, mounted to the bottom of the body. As with the body, this part may not be perfectly accurate, especially with the gasket shape.
Description: Air transfer plate, mounted to the bottom of the body. As with the body, this part may not be perfectly accurate, especially with the gasket shape.

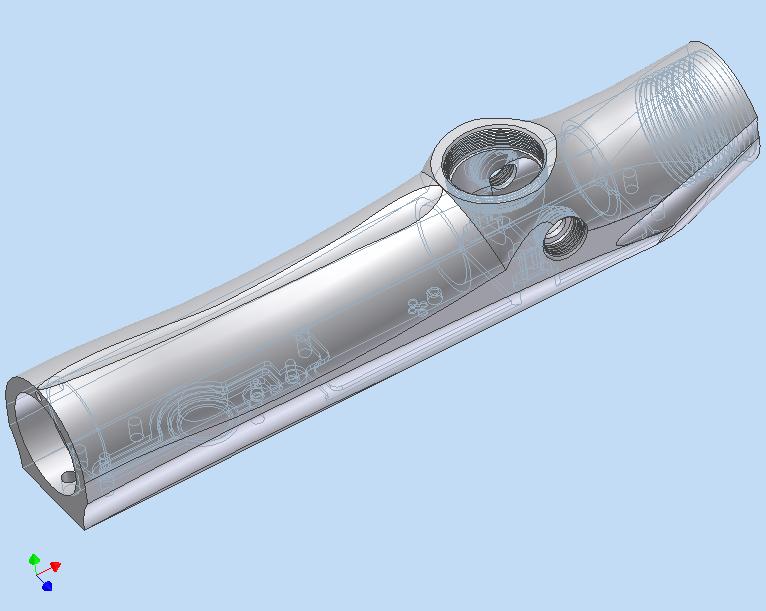

Part: Body
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: A reasonably-accurate model for the marker body. The cosmetics are an approximation but the internals are fairly correct. I'm not sure if the transfer plate gasket is accurate or not, as I've never verified the shape at this time.
Description: A reasonably-accurate model for the marker body. The cosmetics are an approximation but the internals are fairly correct. I'm not sure if the transfer plate gasket is accurate or not, as I've never verified the shape at this time.

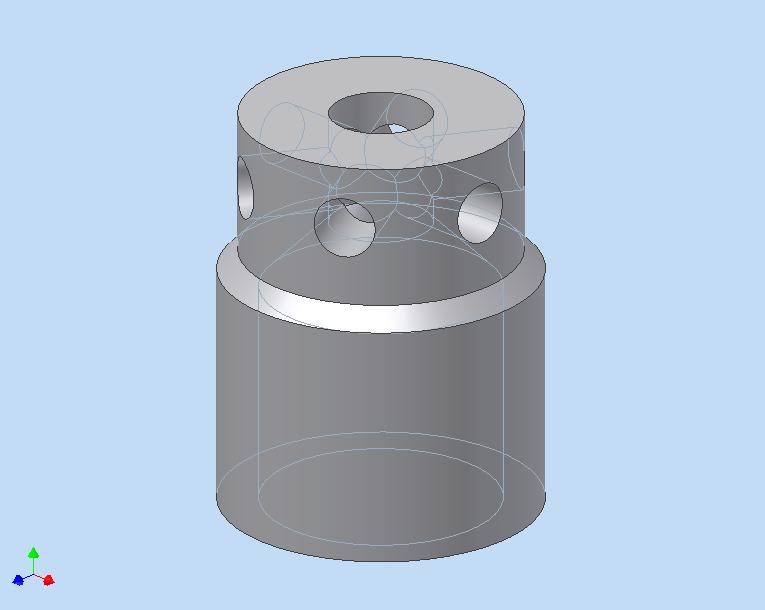

Part: Solenoid flow restrictor
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Small plastic flow restrictor, used in the body's solenoid output port.
Description: Small plastic flow restrictor, used in the body's solenoid output port.
Part: Trigger demo
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna

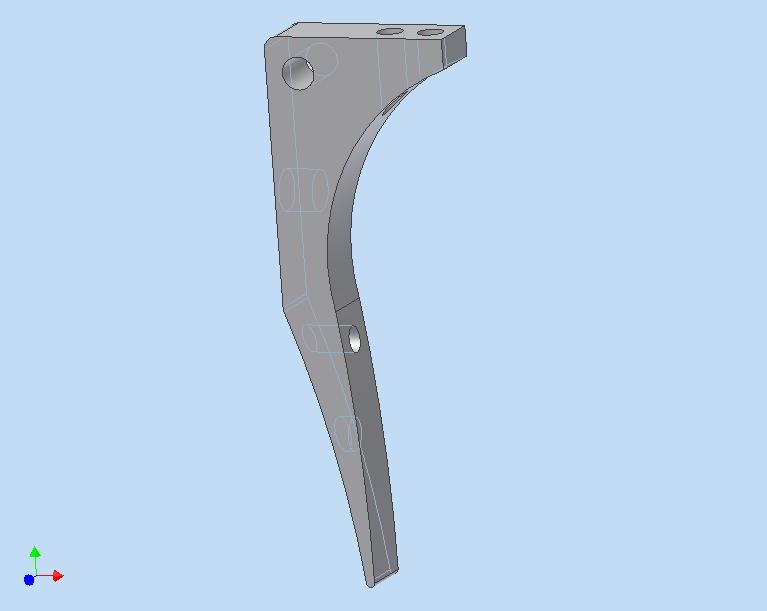

Description: Visual model for the stock trigger.
Description: Visual model for the stock trigger.
Part: Frame air chamber bottom
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna

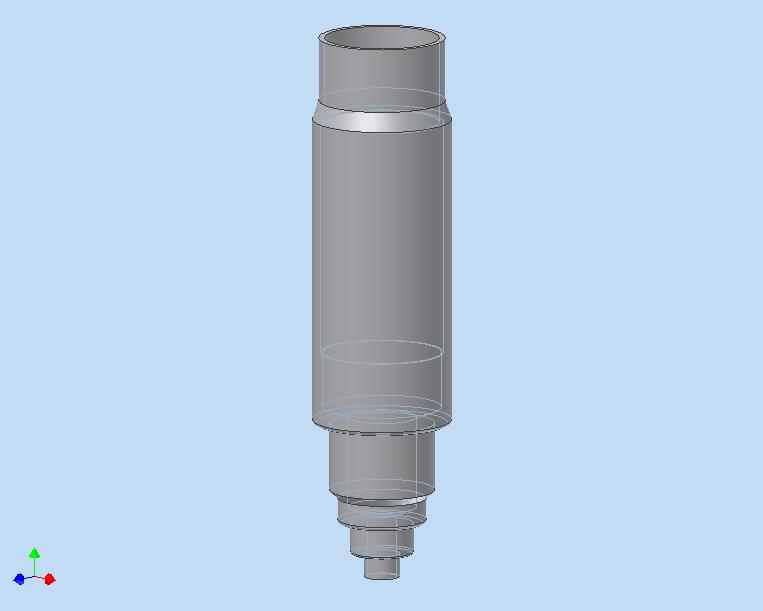

Description: Bottom air chamber inside the frame (mounts above the bottomline). No threading.
Description: Bottom air chamber inside the frame (mounts above the bottomline). No threading.
Part: Frame air chamber top
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna

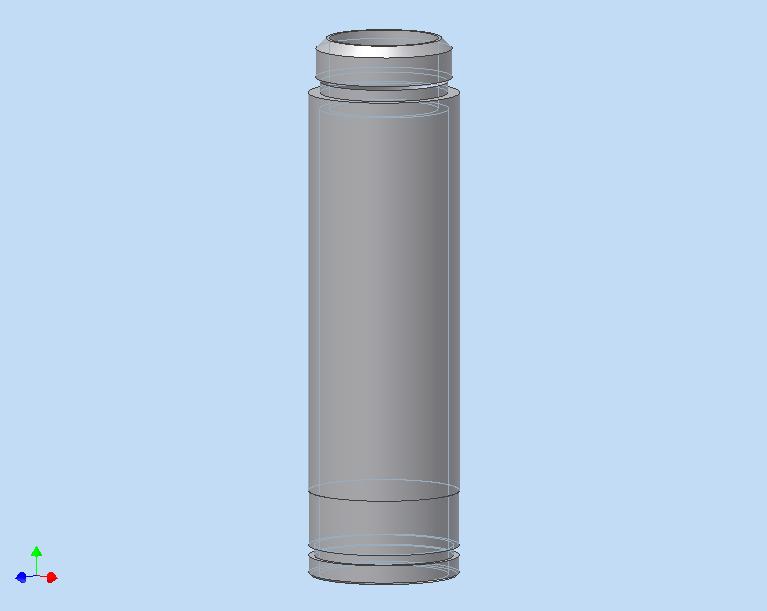

Description: Top air chamber inside the frame (mounts to the transfer plate). No threading.
Description: Top air chamber inside the frame (mounts to the transfer plate). No threading.

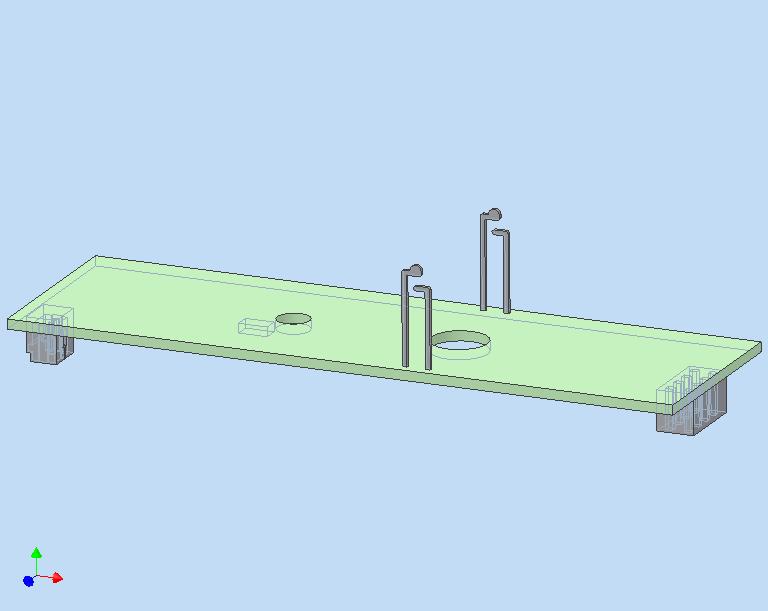

Part: Stock sensor board
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Model for the sensor board. This includes the eye element "internals" but the transparent eye lenses are a separate component.
Description: Model for the sensor board. This includes the eye element "internals" but the transparent eye lenses are a separate component.
Part: Stock sensor board eyes
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna

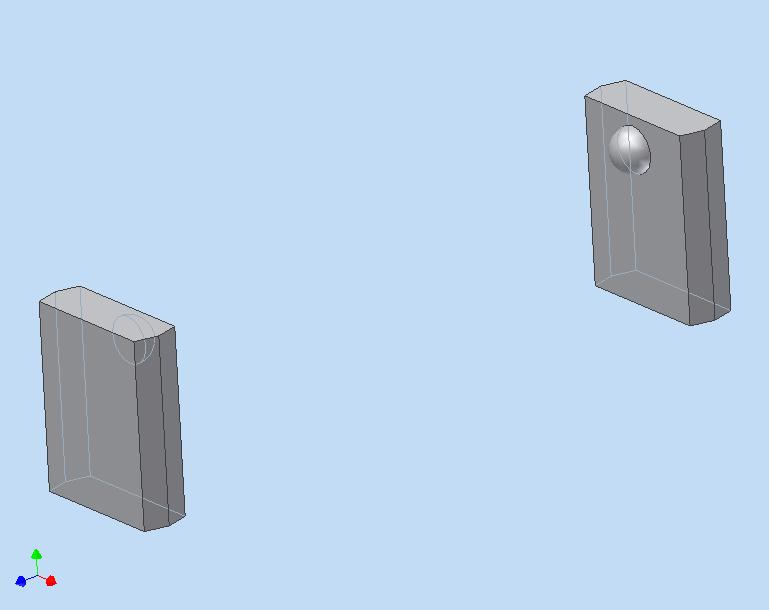

Description: Eye "lenses" for the stock board. I created separate entities so the lenses can be made transparent, as they are in reality.
Description: Eye "lenses" for the stock board. I created separate entities so the lenses can be made transparent, as they are in reality.
Common parts:
Check the CAD file post index for links to universal parts which are compatible between multiple markers. This may include feednecks, regulators, air fittings, solenoids, and others.
