These files are parts are used by many markers as generic accessories. Most of them have accurate external dimensions (critical parts) but little to no actual internal features since they're just demo models.
Marker Parts:

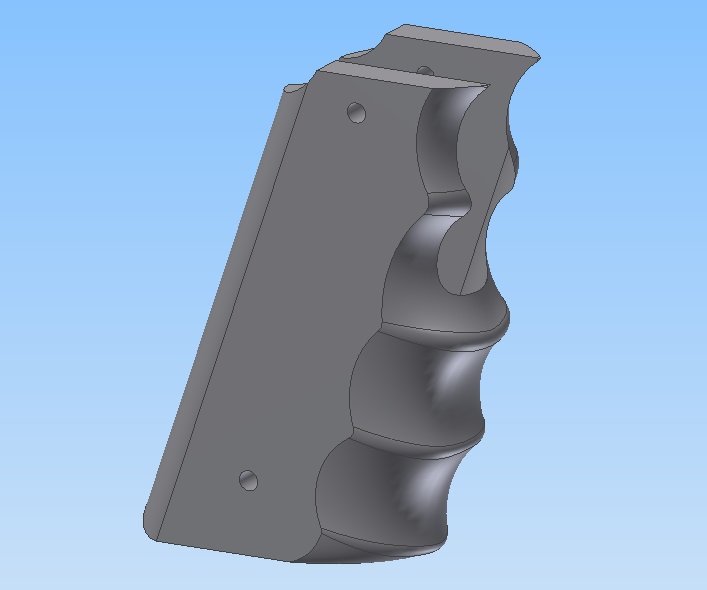

Part: Smart Parts 45-style grip wraps
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: This is a quick approximation of a grip wraps pair. The screw hole placement might not be 100% perfect, but it's close. Regardless, I wouldn't recommend replying on this model for perfect screw hole placement.
Description: This is a quick approximation of a grip wraps pair. The screw hole placement might not be 100% perfect, but it's close. Regardless, I wouldn't recommend replying on this model for perfect screw hole placement.

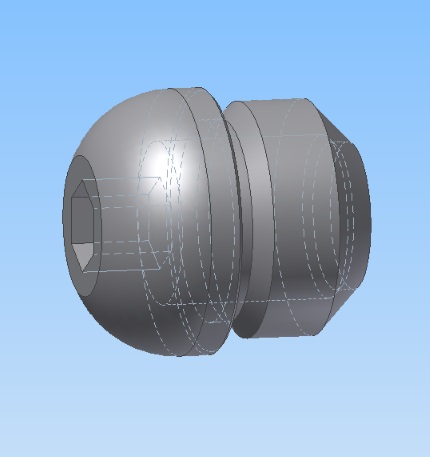

Part: Smart Parts 3/8 "long" style ball detent
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: This model shows a threaded ball detent used on many markers including some from Smart Parts, Autocockers, and few others. This is the "long" style ball detent which was used on Shocker SFTs and classic Impulses. No ball!
Description: This model shows a threaded ball detent used on many markers including some from Smart Parts, Autocockers, and few others. This is the "long" style ball detent which was used on Shocker SFTs and classic Impulses. No ball!
Pneumatics:
Part: Microgauge
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: A typical microgauge (modeled after the SP version) with a short stem. Longer stem gauges were also used in paintball at one time, but not in many years.
Description: A typical microgauge (modeled after the SP version) with a short stem. Longer stem gauges were also used in paintball at one time, but not in many years.

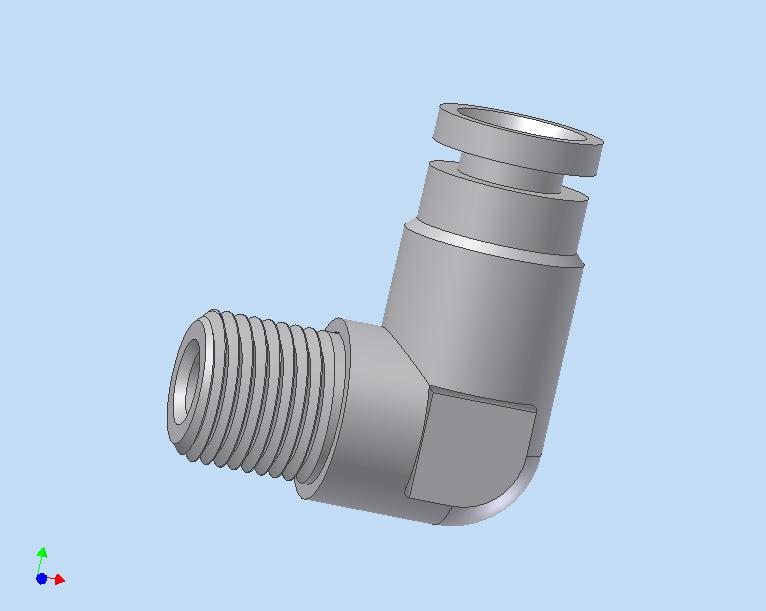

Part: Norgren macroline fitting - fixed elbow
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: A fixed 90º elbow macroline fitting, for standard 1/4" [OD] macroline hose.
Description: A fixed 90º elbow macroline fitting, for standard 1/4" [OD] macroline hose.
Part: Norgren macroline fitting - straight
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Straight fitting for 1/4" [OD] macroline hose.
Description: Straight fitting for 1/4" [OD] macroline hose.
Part: Norgren macroline fitting - swivel elbow
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Swiveling-elbow 90º fitting, for 1/4" [OD] macroline hose. The fitting doesn't swivel in the model, but the dimensions are there.
Description: Swiveling-elbow 90º fitting, for 1/4" [OD] macroline hose. The fitting doesn't swivel in the model, but the dimensions are there.

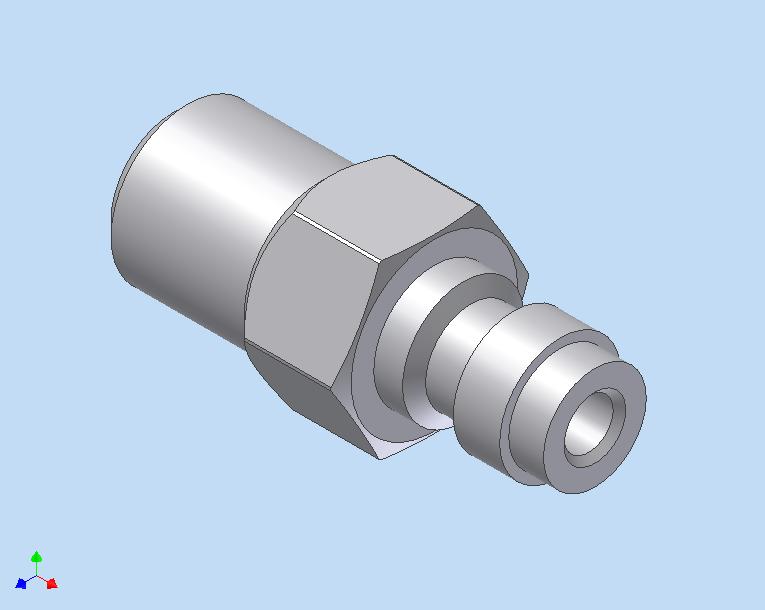

Part: Quick-disconnect fitting, male
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Male end of the QD assembly. This can also be used as a demo model for a fill nipple (it was actually modeled after a fill nipple but there are subtle differences between them).
Description: Male end of the QD assembly. This can also be used as a demo model for a fill nipple (it was actually modeled after a fill nipple but there are subtle differences between them).
Part: Burst disk demo
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Demo model for a typical burst disk. The outside threads are 3/8-24 UN.
Description: Demo model for a typical burst disk. The outside threads are 3/8-24 UN.
Part: Gasline plug screw
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Threaded set screws such as this may be used to seal unwanted 1/8" NPT ports on various pressure components.
Description: Threaded set screws such as this may be used to seal unwanted 1/8" NPT ports on various pressure components.
Bottomline & ASA:
Part: Smart Parts drop forward bar
Formats:
Inventor 2008 part (.ipt)
Inventor 2008 part (.ipt)
Created by: Ydna
Description: This was Smart Parts "drop forward bar" from 2001-2002. It fits a standard bottomline screw setup. Jewel not included in the model.
Description: This was Smart Parts "drop forward bar" from 2001-2002. It fits a standard bottomline screw setup. Jewel not included in the model.

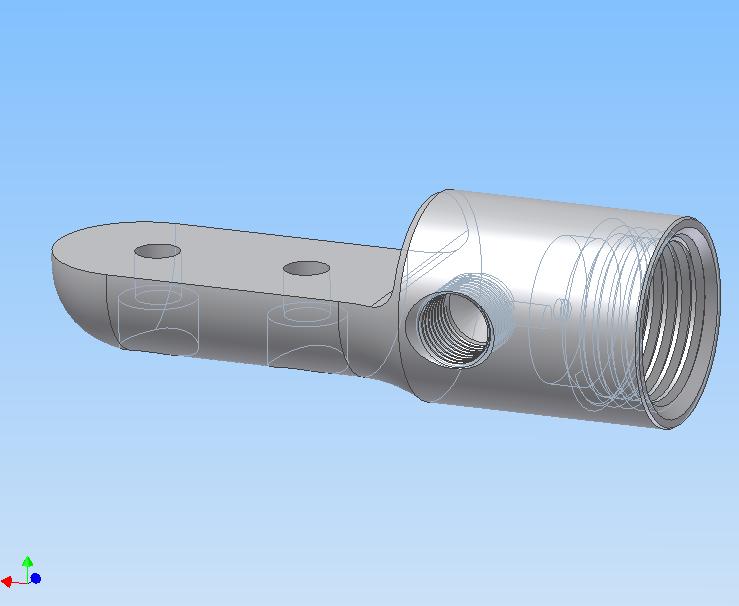

Part: ASA adapter (duckbill-style)
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: This model is for a basic ASA duckbill tank adapter. The part used for the model was the factory ASA from an original Impulse and Ion.
Description: This model is for a basic ASA duckbill tank adapter. The part used for the model was the factory ASA from an original Impulse and Ion.

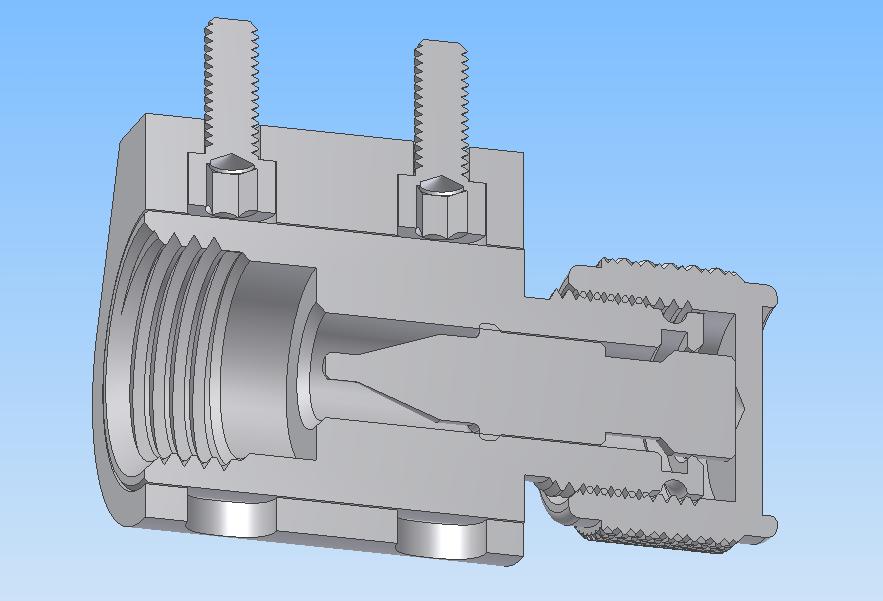

Part: Check-it Unimount ASA
Formats:
Inventor 2008 assembly (.iam)
Inventor 2008 assembly (.iam)
Created by: Ydna
Description: One of the original "unibody" style ASAs, this one from Check-it Products. The model includes a pair of bottomline screws, however the locking set screws aren't included. The models are reasonably accurate but I didn't double-check anything so there might be some inconsistencies. O-rings not included.
Description: One of the original "unibody" style ASAs, this one from Check-it Products. The model includes a pair of bottomline screws, however the locking set screws aren't included. The models are reasonably accurate but I didn't double-check anything so there might be some inconsistencies. O-rings not included.
Part: Unknown Shutoff ASA
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: Assembly file for some type of generic shutoff-style ASA adapter. I'm not sure of the manufacturer.
Description: Assembly file for some type of generic shutoff-style ASA adapter. I'm not sure of the manufacturer.
Part: ASA thread spec, male
Formats:
AutoCAD exchange format (.dxf)
AutoCAD exchange format (.dxf)
Created by: Have Blue
Description: Typical thread profile for an air source adapter's (ASA) male end.
Description: Typical thread profile for an air source adapter's (ASA) male end.

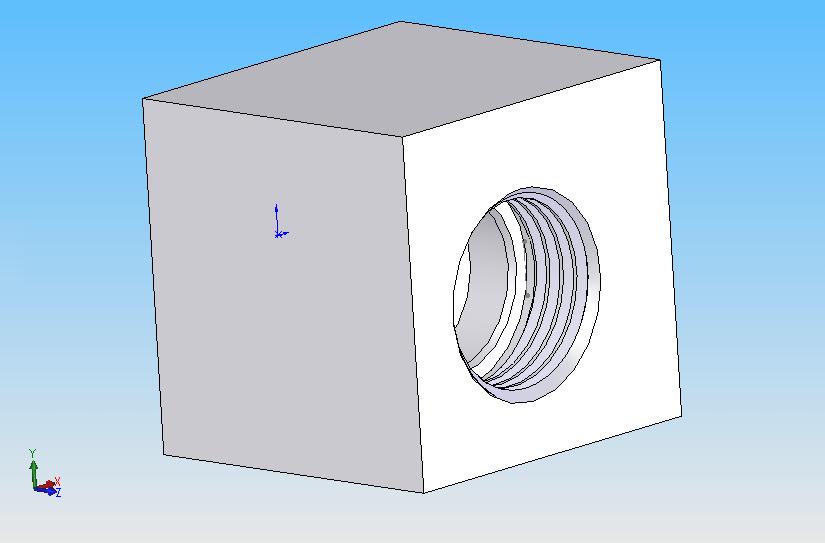

Part: ASA thread spec, female
Formats:
SolidWorks library feature (.sldlfp)
SolidWorks library feature (.sldlfp)
Created by: Baldusi
Description: Typical thread profile for an air source adapter's (ASA) female receiving end.
Description: Typical thread profile for an air source adapter's (ASA) female receiving end.
Part: Dovetail rail spec
Formats:
Solidworks part (.sldprt)
Solidworks part (.sldprt)
Created by: Manike
Description: An example dovetail part created to show the approximate size of dovetail components. Please note there is no official standard for the dovetail size so this is only one possible representation.
Description: An example dovetail part created to show the approximate size of dovetail components. Please note there is no official standard for the dovetail size so this is only one possible representation.
QEV Valves:
Part: Clippard MEV-2 QEV demo
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Demo model for a Clippard QEV. The ports are threaded 10-32 (as well as the QEV stem).
Description: Demo model for a Clippard QEV. The ports are threaded 10-32 (as well as the QEV stem).

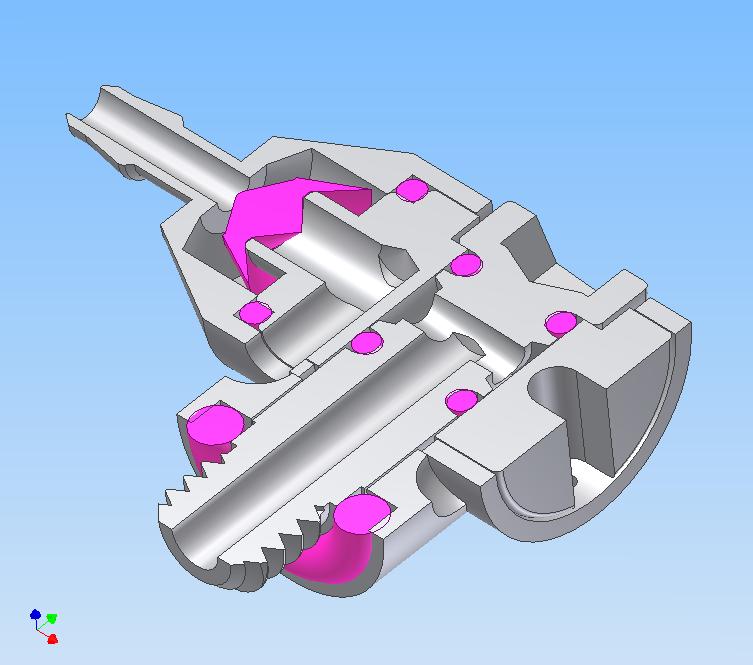

Part: SP 360º QEV Assembly
Formats:
Inventor 2008 Assembly (.iam)
Inventor 2008 Assembly (.iam)
Created by: Ydna
Description: Inventor assembly file for the 360º QEV. This contains the QEV components, seals, and poppet; also contained is an assrmbly structure that holds them all together with constraints.
Description: Inventor assembly file for the 360º QEV. This contains the QEV components, seals, and poppet; also contained is an assrmbly structure that holds them all together with constraints.
