Here are some semi-generic components used in an ICD Freestyle marker.

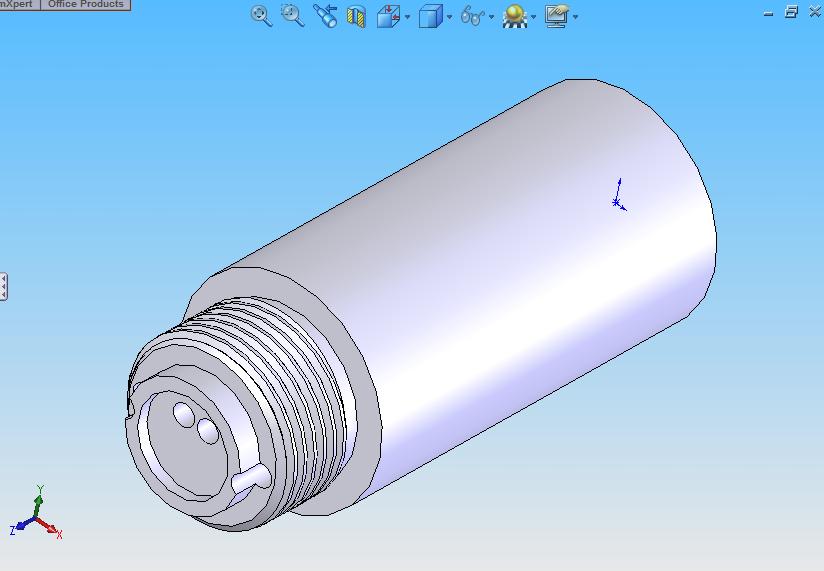

Part: JDS LPR demo
Formats:
Solidworks part (.sldprt)
Solidworks part (.sldprt)
Created by: Baldusi
Description: Demo model for a Freestyel LPR, in this case a JDS version. This has accurate porting and threading features, but no internals are included.
Description: Demo model for a Freestyel LPR, in this case a JDS version. This has accurate porting and threading features, but no internals are included.

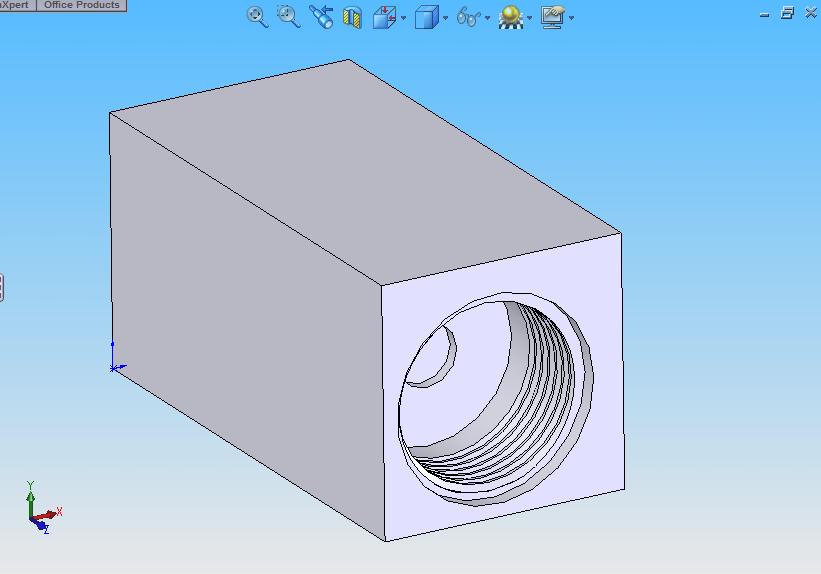

Part: Freestyle LPR threading specification
Formats:
Solidworks library feature (.sldlfp)
Solidworks library feature (.sldlfp)
Created by: Baldusi
Description: Thread spec for the LPR's female side located in the body. This also includes the base which seals using an o-ring (accurate, I assume).
Description: Thread spec for the LPR's female side located in the body. This also includes the base which seals using an o-ring (accurate, I assume).
Part: ICD Feedneck thread specification
Formats:
Solidworks library feature (.sldlfp)
Solidworks library feature (.sldlfp)
Created by: Baldusi
Description: Thread spec for the ICD feedneck, female side.
Description: Thread spec for the ICD feedneck, female side.
Common parts:
Check the CAD file post index for links to universal parts which are compatible between multiple markers. This may include feednecks, regulators, air fittings, solenoids, and others.
