Generic Feednecks CAD ZDSPB.com > Tech index > CAD file post > Generic Feednecks

This page contains information on the feedneck specifications used on paintball markers. Multiple markers use the same feedneck dimensions, so this page was created to reduce redundancy between marker pages.
Warning: Although the same feedneck specification may be shared between multiple markers, feednecks are often incompatible between different markers due to the amount of material surrounding the feedport. For instance, private label markers may use different cosmetic milling around their marker breech, which may prevent a "stubby" feedneck from being installed on a marker with significantly more material around its feedport. In the past, feednecks were only categorized by their threading, but this is NOT enogh information to determine whether a feedneck will fit a particular marker body due to height differences.

Thread
specification:
Used on these markers...
13/16"-32 UN Smart Parts Impulse classic
Smart Parts Ion, Epiphany
Smart Parts Shocker SFT, Nerve
Smart Parts Shocker Sport vertical feed 2001-2002
ICD Bushmaster
Invert/Empire Mini, Mini-GS, Axe, AxePro, Axe 2.0
PMI Piranha
Evil Omen
Spyder VS1, VS2, VS3, RS, RSX
PGI Mayehm
AirStar Nova
Classic Intimidator
M21x0.75mm WDP Angel LED, LCD, IR3, A1, G7, Arc
AGD ULE / Tac-One Automag
AGD X-Mag
Deadlywind Dallara, Karta
Fastback Autococker
AIM Autococker
FBM Autococker
CCM "old" threads
7/8"-16 UN Autococker SR bodies
7/8"-20 UN CCM "new" threads
7/8"-20 UN male Bob Long Protege
7/8"-27 UN WarMachine Assault-80
7/8"-32 UN Smart Parts Shocker NXT
DLX Luxe
Smart Parts Ion XE, EOS
Shocktech retro Autococker bodies
29/32"-20 UN AKALMP Excalibur, Viking
AKALMP Merlin
29/32"-32 UN FEP Quest
15/16"-20 UN MacDev Cyborg?
15/16"-32 UN GenE Matrix, Dye DM3
Dye DM (all models)
Proto Matrix PM (all models)
1.063"-20 UN male STO Autococker
"UN" denotes UNified imperial threads which use inches for diameter measurement. Metric threads are denoted using an M-diameter in millimeters.
Unified imperial threads are described using their number of threads-per-inch.
Metric threads are defined by their pitch distance, which is the length of each thread helix lead.

Mount style: Used on these markers...
Eclipse latch mount - small Eclipse Ego5, Ego6
Eclipse latch mount Eclipse Ego 7 and later
Eclipse Etha
Eclipse Etek Eclipse LV1, LV1.1
Smart Parts 09 Impulse (close enough)
Eclipse latch mount - "low profile" Eclipse LV1.5
Eclipse Geo
Eclipse CS1, CS1.5
Empire latch mount Empire Sniper, Resurrection
Empire Vanquish
Shocker RSX/XLS/CVO (close enough)
Nummech marker bodies
J4 Torque
Bob Long / BLAST / Field One
"No-groove" latch mount
BLAST G6R
BLAST Insight NG
BLAST MVP
BLAST Marq VCOM
BALST Onslaught
Bob Long / BLAST / Field One
"Groove" latch mount
Field One Marq VCOM 2018+
Field One Force
HK TREX latch mount HK TREX VCOM

Note: Empire feednecks are generally compatible with the Eclipse mount. However, Eclipse feednecks aren't compatible with Empire mounts because of their height.

13/16"-32 UN threaded feedneck:

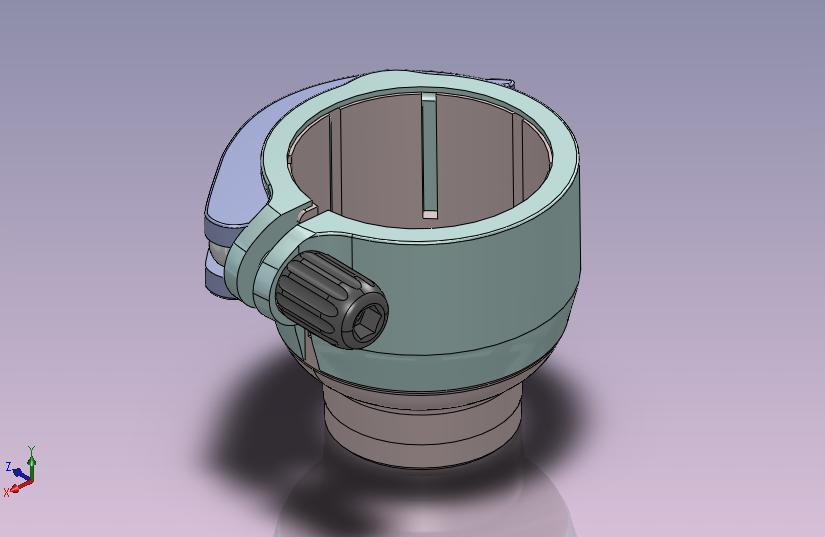

Part: Smart Parts Q-lock
Smart Parts Q-lock
Created by: unknown
Description: This is an assembly model for the Smart Parts Q-lock feedneck. The ZIP archive contains Solidworks part documents but there is no native geometry inside the files; they're all imported from another CAD program then converted to SLDPRT files. You can move and arrange the files, but not edit them natively.

Part: ICD feedneck spec
ICD feedneck spec
Created by: Brenden "Spitlebug" Gansner

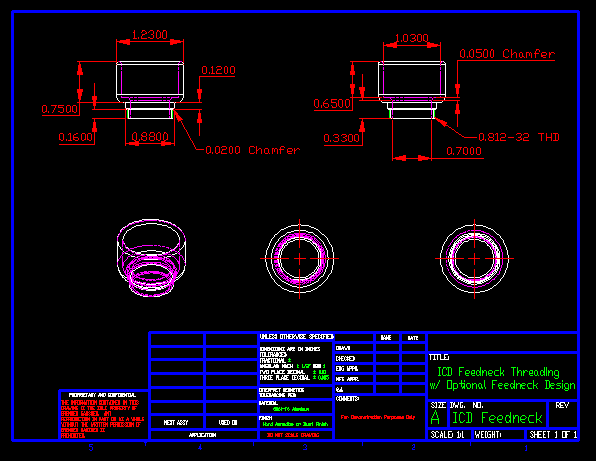

Description: 2d feedneck specification drawing. This is used on the B2K4 as well as other ICD markers.

Part: ICD Feedneck thread specification
ICD Feedneck thread specification
Created by: Baldusi

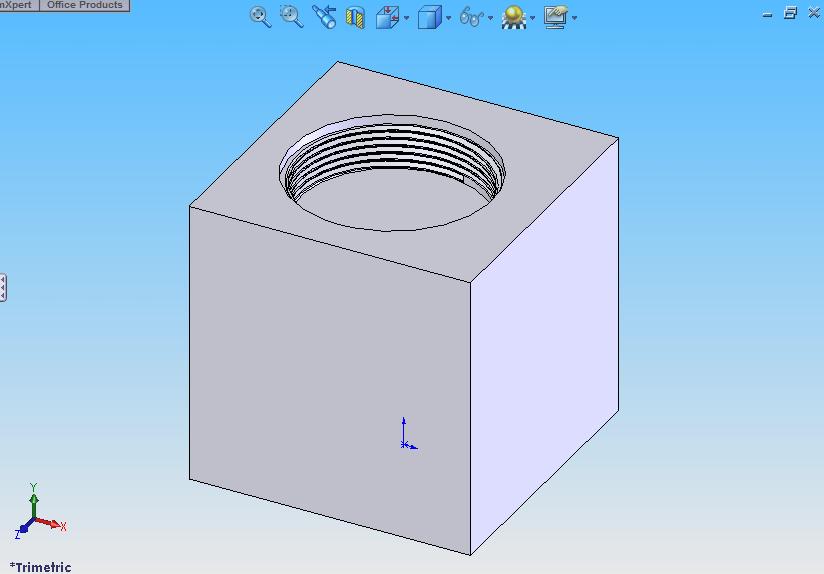

Description: Thread spec for the ICD feedneck, female side.

Part: Axe classic feedneck body
Axe classic feedneck body
Created by: Ydna

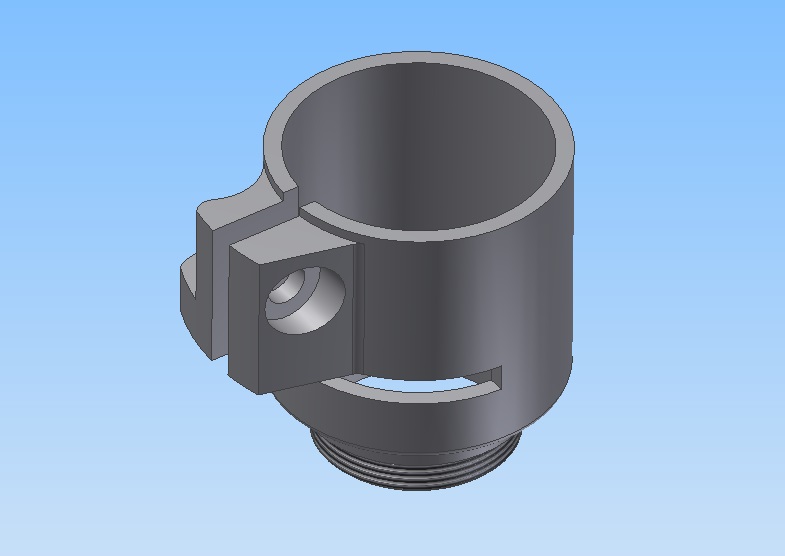

Description: This feedneck comes on most Empire Axe classic markers. The model is only for the housing component, no cam lever included. A similar version of this was also used with Invert/Empire Mini classic markers. Note that newer MiniGS and Axe Pro markers used the Empire accessory feedneck boss system.

Eclipse boss-latch feedneck:

Part: Etek3 feedneck boss
Etek3 feedneck boss
Created by: Ydna

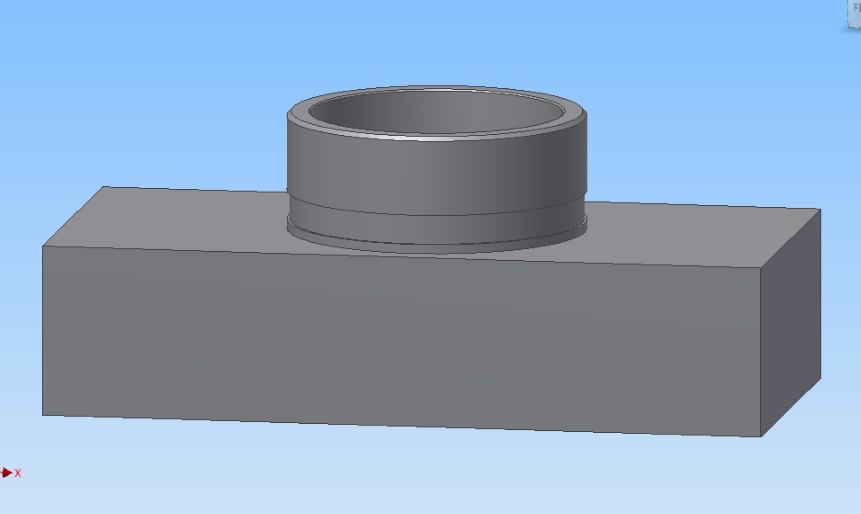

Description: This model was created using measurements from an Etek3 LT marker body. It should represent the same feedneck boss used by other Eclipse markers using a compatible feedneck.

Part: Emek PAL feedneck demo model
Emek PAL feedneck demo model
Created by: Ydna

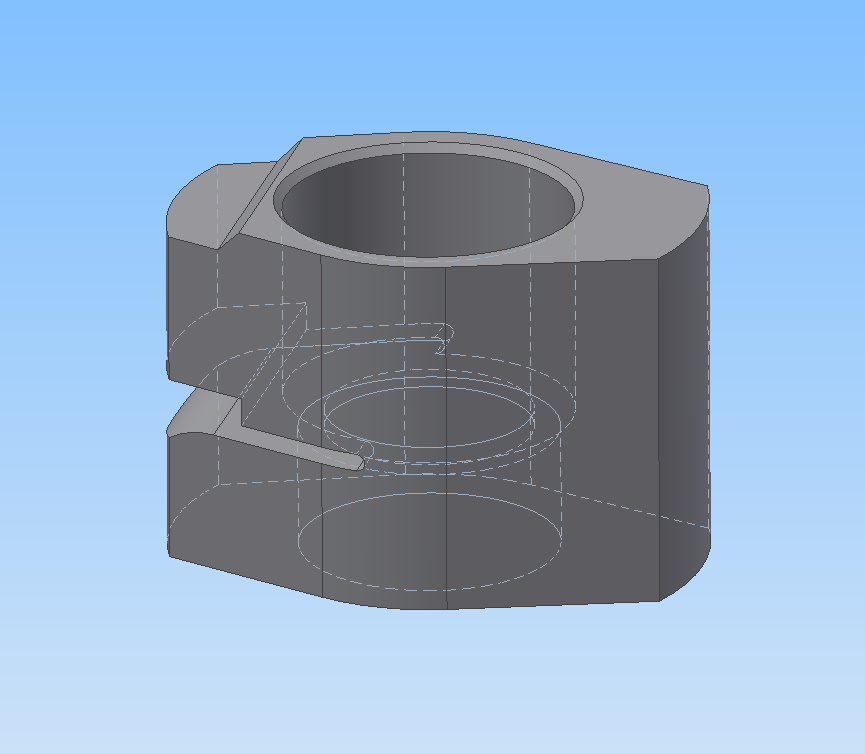

Description: A demo model for the Emek PAL feedneck. Essentially this model represents the outside shape only; the internal measurements are only approximations.

Empire boss-latch feedneck:

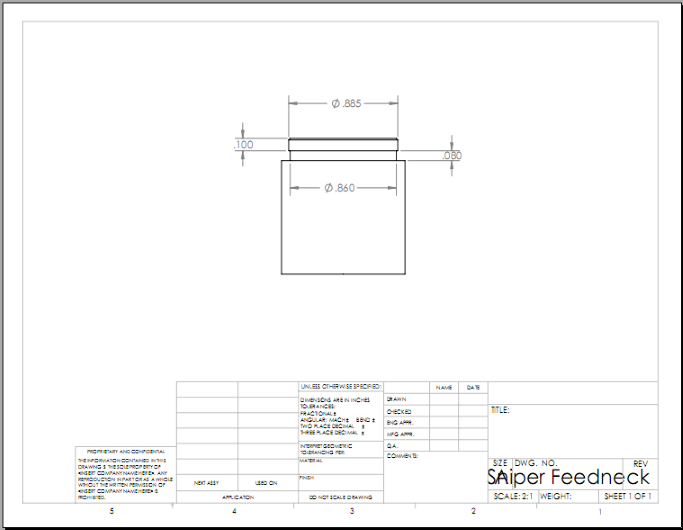

Part: Empire Sniper feedneck boss
Formats:
PDF file (.pdf)
Empire Sniper feedneck boss
Created by: PBSteve
Description: This is a reverse-engineered print made using measurements from an Empire Sniper.

Part: Nummech Unilock feedneck
Nummech Unilock feedneck
Created by: Ydna via Nummech Products

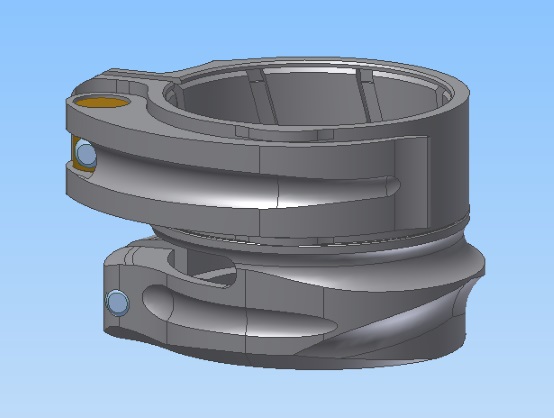

Description: Nummech's boss-latching feedneck using a separate cap ring component.

M21x.75mm threaded feedneck:

Part: Angel feedneck specification
Angel feedneck specification
Created by: Baldusi

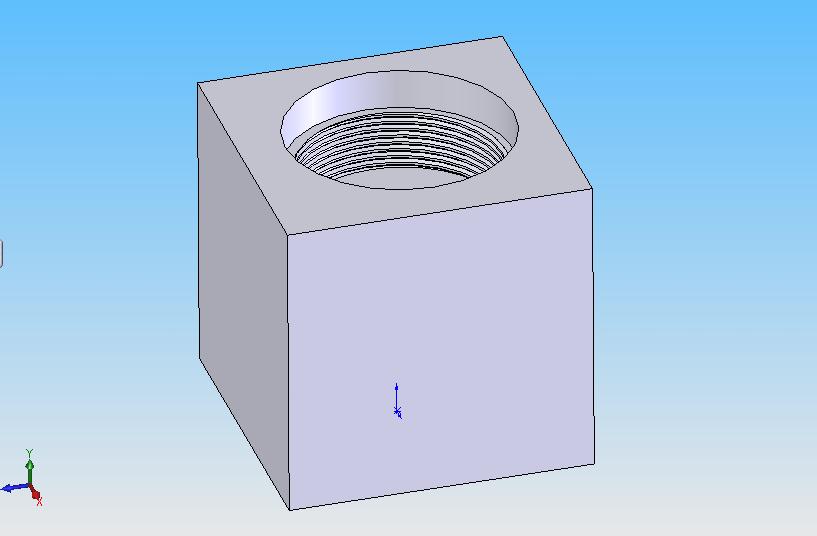

Description: Demo model for the female receiving threads on Angel feednecks.

29/32"-20 UN threaded feedneck:

Part: AKALMP feedneck specification
AKALMP feedneck specification

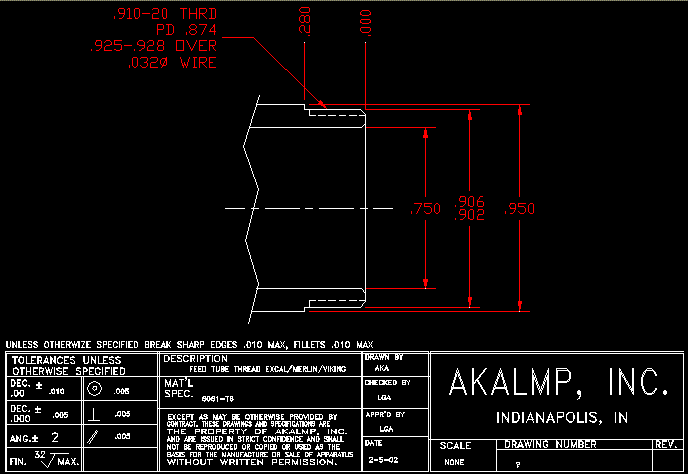

Created by: AKALMP Inc.
Description: Official release for the AKALMP feedneck, specifically the male feedneck itself.
