Here are some common electronics parts that I've used in the past.

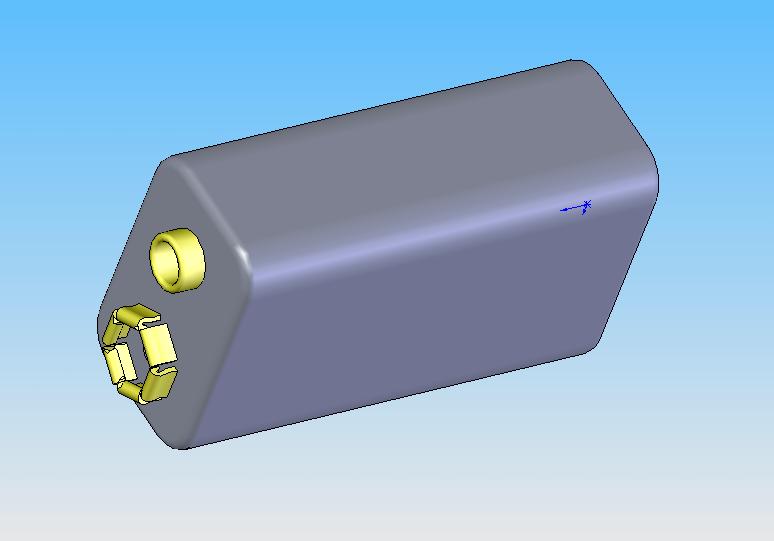

Part: Nine volt battery
Formats:
SolidWorks part (.sldprt)
SolidWorks part (.sldprt)
Created by: Baldusi
Description: A typical nine volt battery.
Description: A typical nine volt battery.
Part: KM2 Predator-Morlock board
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Multi-purpose Predator-Morlock (aka. Mini-Morlock) board from KM2. This isn't a perfect model, it's just visual in terms of dimensions, but it'll do the job. THe model shows all the correct components in their relative position, as well as a completely accurate layout for the circuit etching.
Description: Multi-purpose Predator-Morlock (aka. Mini-Morlock) board from KM2. This isn't a perfect model, it's just visual in terms of dimensions, but it'll do the job. THe model shows all the correct components in their relative position, as well as a completely accurate layout for the circuit etching.

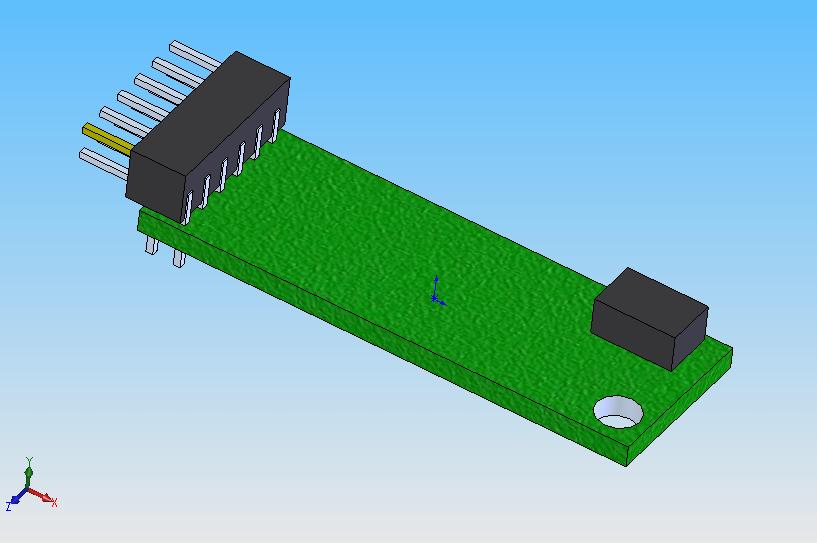

Part: KM2 Predator-Morlock board
Formats:
SolidWorks part (.sldprt)
SolidWorks part (.sldprt)
Created by: Baldusi
Description: Same demo type model as above, although a more conservative version for SW.
Description: Same demo type model as above, although a more conservative version for SW.

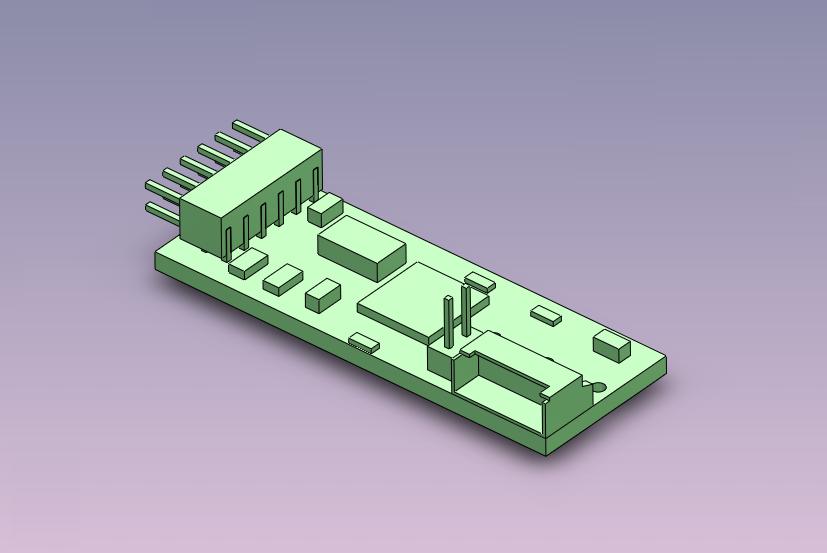

Part: Chaos 2k7 board
Formats:
SolidWorks 2008 part (.sldprt)
SolidWorks 2008 part (.sldprt)
Created by: Ydna
Description: Vaporworks Chaos board, 2007 version. This is a Bushmaster board but also has custom-install use in customized modifications (so long as the solenoid coil is small enough to be run by this board). Uses the same connector header as Morlocks (12-point Milligrid).
Description: Vaporworks Chaos board, 2007 version. This is a Bushmaster board but also has custom-install use in customized modifications (so long as the solenoid coil is small enough to be run by this board). Uses the same connector header as Morlocks (12-point Milligrid).

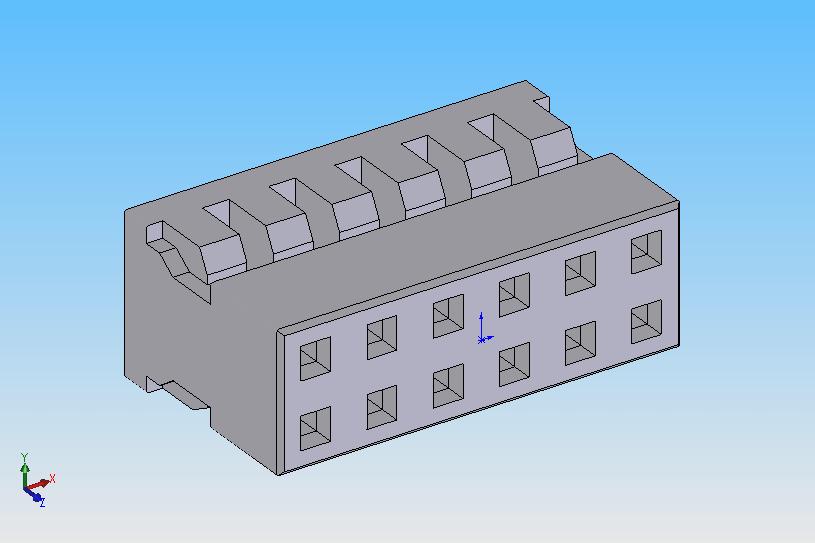

Part: Milligrid 12-pin header housing
Formats:
SolidWorks part (.sldprt)
SolidWorks part (.sldprt)
Created by: Baldusi
Description: This plastic header housing is used with 2-mm pitch headers such as those used on Morlock boards, Bushmaster boards (Chaos etc) and others.
Description: This plastic header housing is used with 2-mm pitch headers such as those used on Morlock boards, Bushmaster boards (Chaos etc) and others.

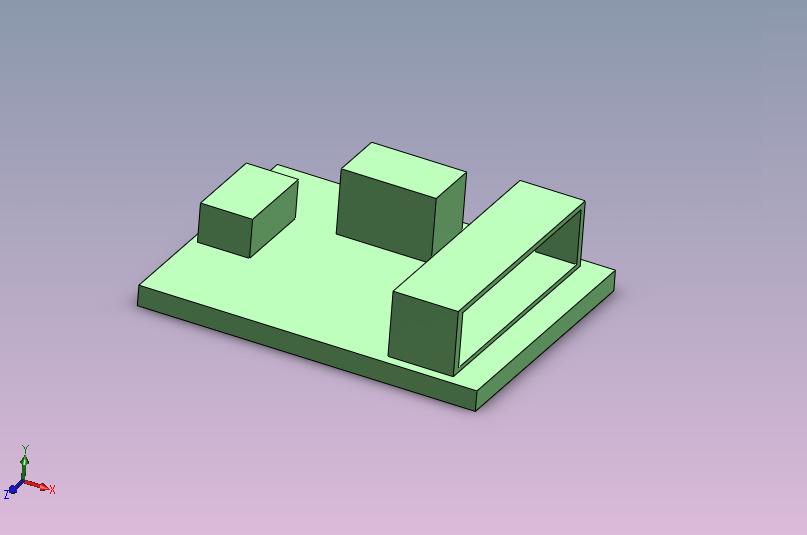

Part: Universal T-board demo
Created by: Ydna
Description: Visual model to show the approximate size of a Universal T-board.
Description: Visual model to show the approximate size of a Universal T-board.

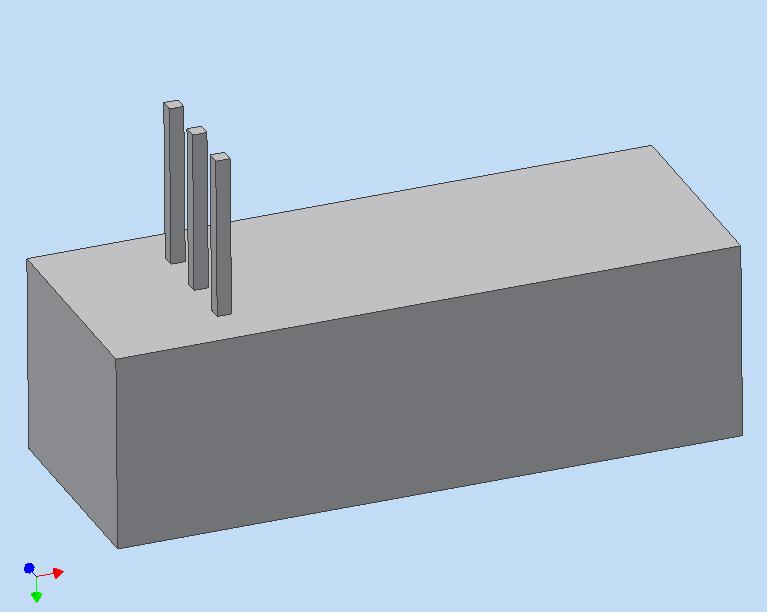

Part: Pulse RF transmitter
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Model for the Draxus Pulse hopper's RF trnasmitter/receiver module.
Description: Model for the Draxus Pulse hopper's RF trnasmitter/receiver module.

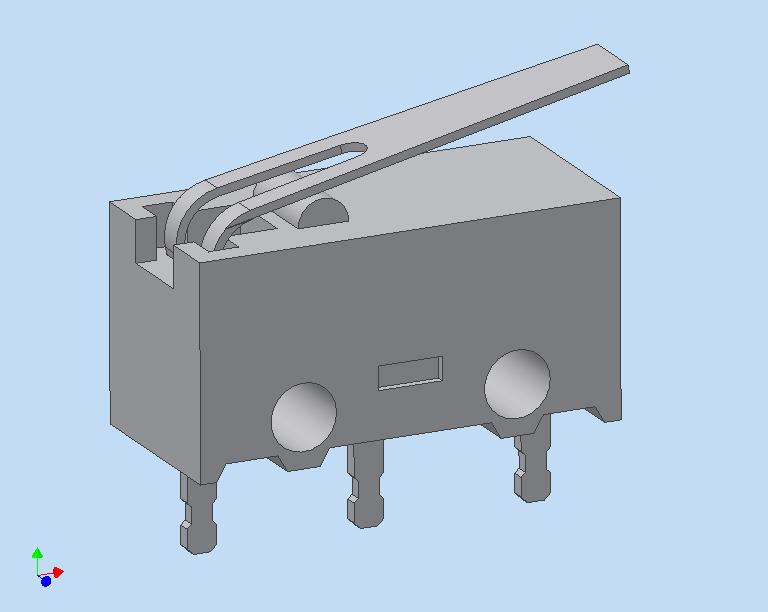

Part: Omron trigger microswitch
Formats:
Inventor 10 part file (.ipt)
Inventor 10 part file (.ipt)
Created by: Ydna
Description: Subminiature, lever-action switch that is used by most electronic markers. This is technically a switch made by Omron (subtle differences in other manufacturers). This was just a quick visual model, but all the major dimensions are correct.
Description: Subminiature, lever-action switch that is used by most electronic markers. This is technically a switch made by Omron (subtle differences in other manufacturers). This was just a quick visual model, but all the major dimensions are correct.
Part: Omron trigger microswitch
Formats:
SolidWorks Assembly file (.sldasm)
SolidWorks Assembly file (.sldasm)
Created by: Baldusi
Description: This assembly model contains two parts, the switch base and the switch lever, which is moveable.
Description: This assembly model contains two parts, the switch base and the switch lever, which is moveable.
Optoelectronics:

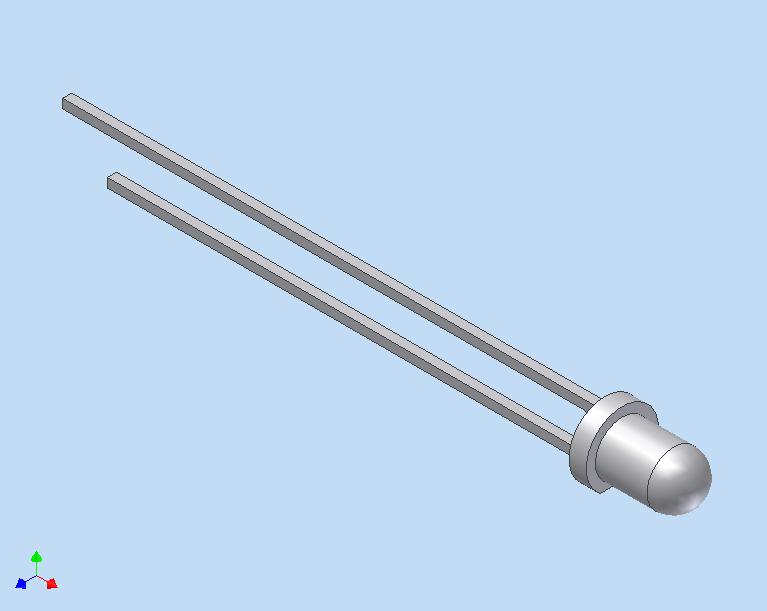

Part: 3-mm LED
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Typical 3-mm LED. Sometimes they use a smaller "lip" section, but it varies from manufacturer to manufacturer.
Description: Typical 3-mm LED. Sometimes they use a smaller "lip" section, but it varies from manufacturer to manufacturer.
Part: Fairchild QRD1114
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: A square reflective eye from Fairchild, part number QRD1114. These work very well with morlock boards. THey come with longer wire leads but the model includes them as "trimmed".
Description: A square reflective eye from Fairchild, part number QRD1114. These work very well with morlock boards. THey come with longer wire leads but the model includes them as "trimmed".
