Ego models contributed mostly by Balla245. Approximately half of the models are individual part files; the other half consist of assembly files in WinZip form with included o-rings. Most of these files are considered "demo" since some lack threading and occasional dimensions are estimated, but the models work perfect for visual purposes (and more).
Part: Body demo
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: James "balla245"
Description: Visual model for an Ego body, designed to be used with the below internal components. The visuals are incomplete however this will serve as a housing to view an assembly of the internal files.
Description: Visual model for an Ego body, designed to be used with the below internal components. The visuals are incomplete however this will serve as a housing to view an assembly of the internal files.

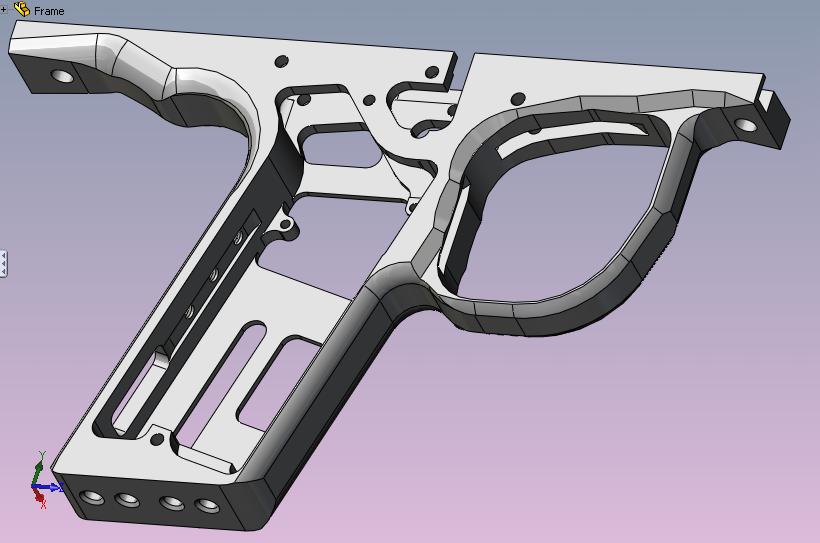

Part: 05 Ego frame
Formats:
SolidWorks 2008 part (.sldprt)
SolidWorks 2008 part (.sldprt)
Created by: Ydna
Description: Ego frame model. Thanks to P8ntbal4me for submitting the part to be measured.
Description: Ego frame model. Thanks to P8ntbal4me for submitting the part to be measured.

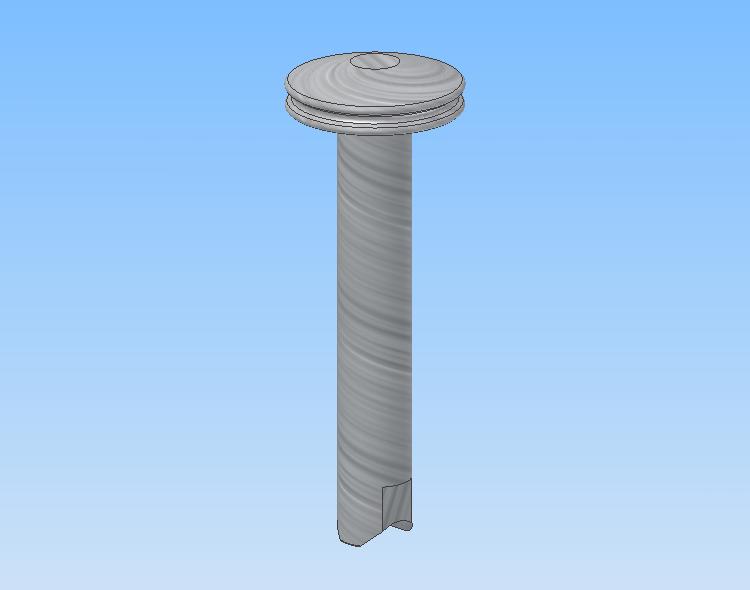

Part: Bolt pin
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: James "balla245"

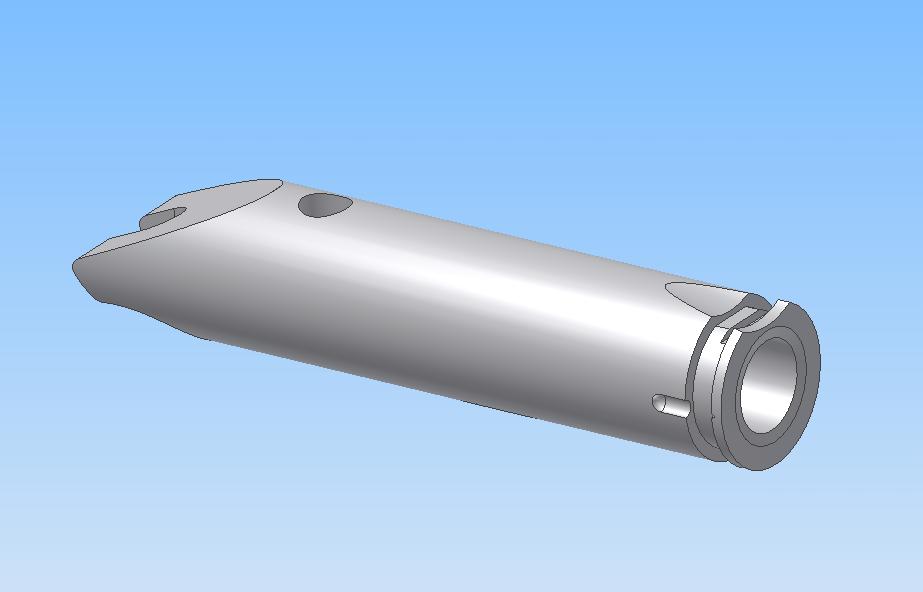

Description: Bolt pin for the above bolt model.
Description: Bolt pin for the above bolt model.

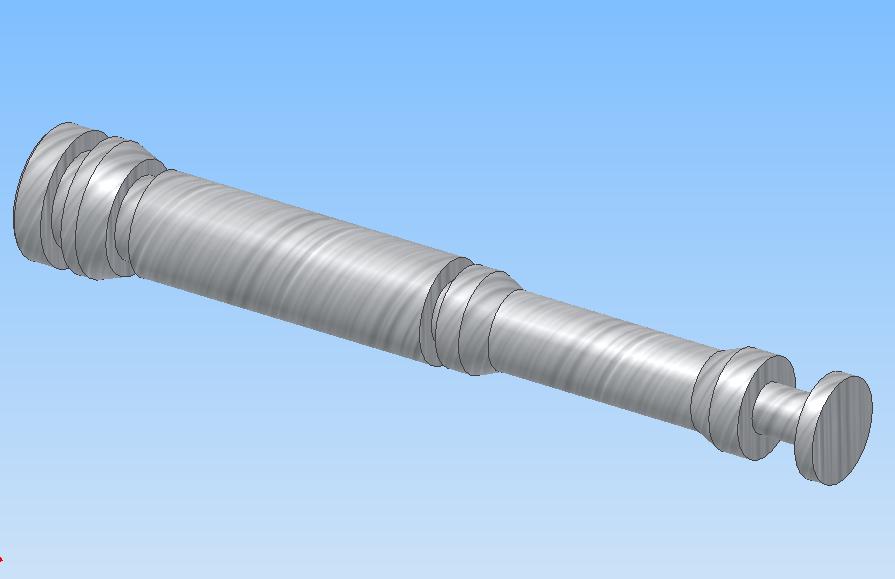

Part: Ram
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: James "balla245"
Description: Ram shaft (no o-rings or bumper).
Description: Ram shaft (no o-rings or bumper).

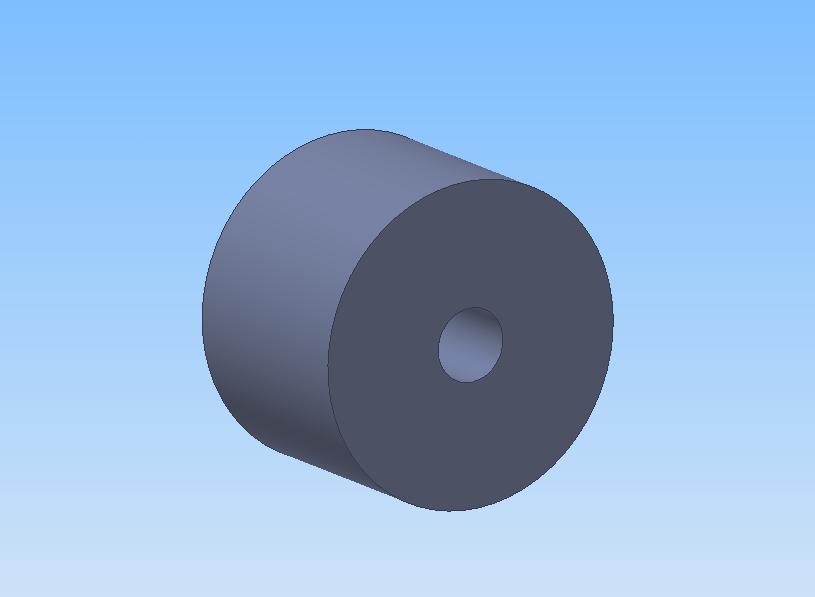

Part: Ram bumper
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: James "balla245"
Description: Polymer bumper that fits in back of the above ram.
Description: Polymer bumper that fits in back of the above ram.
Part: Ram endcap
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: James "balla245"
Description: Ram endcap component.
Description: Ram endcap component.
Part: Valve housing
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: James "balla245"
Description: Valve housing, no o-rings.
Description: Valve housing, no o-rings.

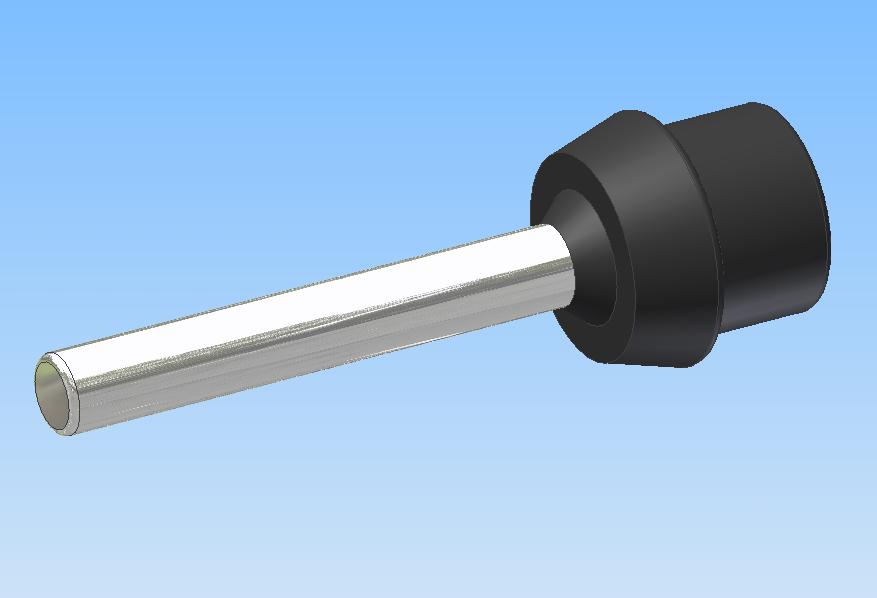

Part: Valve stem
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: James "balla245"
Description: Valve poppet and stem model.
Description: Valve poppet and stem model.
Part: Valve spring
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: James "balla245"
Description: Demo model for the valve return spring.
Description: Demo model for the valve return spring.

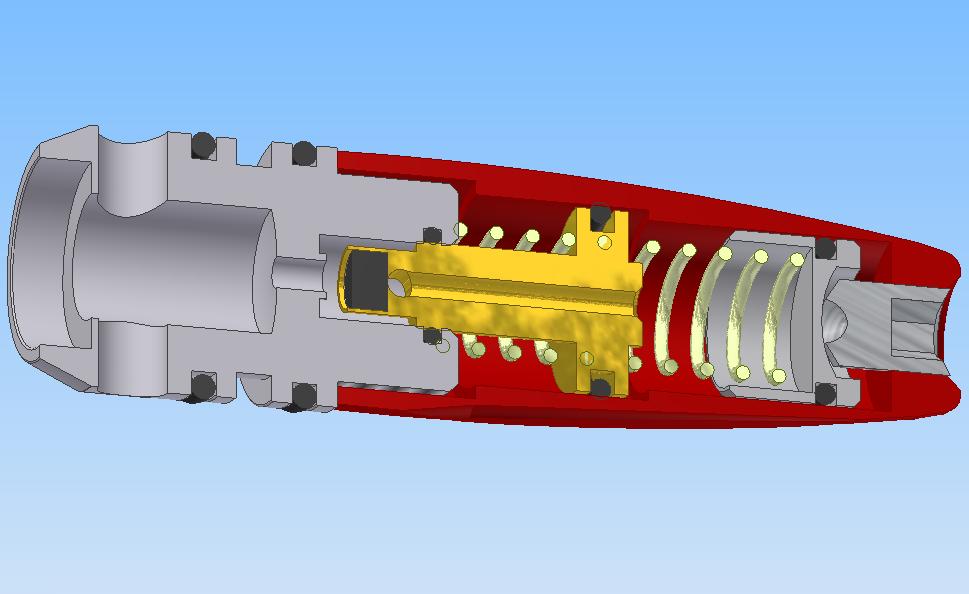

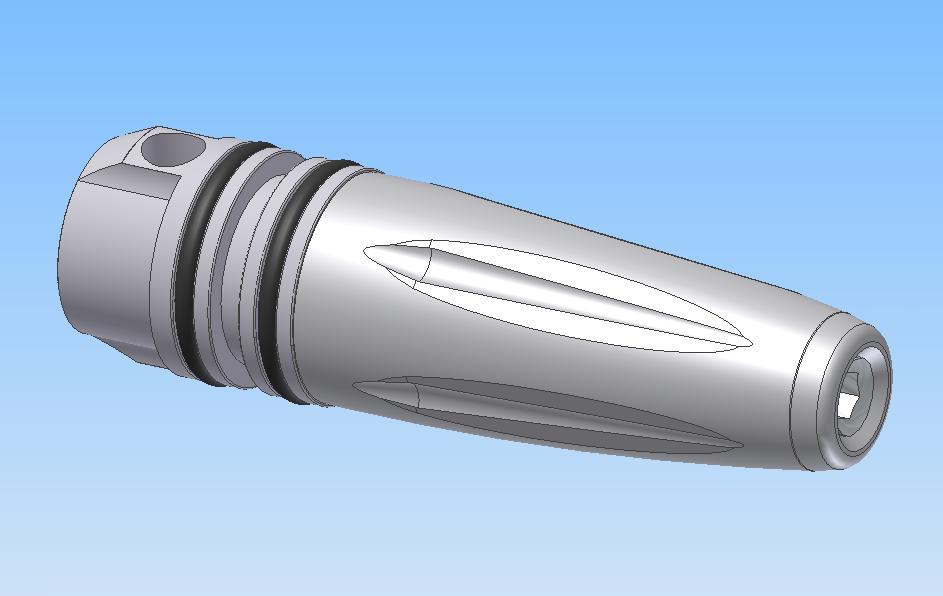

Part: LPR reg assembly
Formats:
Inventor 2008 assembly (.iam)
Inventor 2008 assembly (.iam)
Created by: James "balla245"
Description: Assembly file for an Ego LPR. The file contains the parts pictured, including possible demo parts for the internal springs and related o-rings.
Description: Assembly file for an Ego LPR. The file contains the parts pictured, including possible demo parts for the internal springs and related o-rings.
Part: Ego 06 Virtue board demo
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: This was made with some quick measurements of a Virtue board made for a 2006 Ego. This is very similar to 2005 boards too, although the trigger microswitch is different.
Description: This was made with some quick measurements of a Virtue board made for a 2006 Ego. This is very similar to 2005 boards too, although the trigger microswitch is different.
Common parts:
Check the CAD file post index for links to universal parts which are compatible between multiple markers. This may include feednecks, regulators, air fittings, solenoids, and others.
