2003 Dye DM3 Matrix models. Some may be compatible with the previous Matrix versions, but I don't know which in specific.

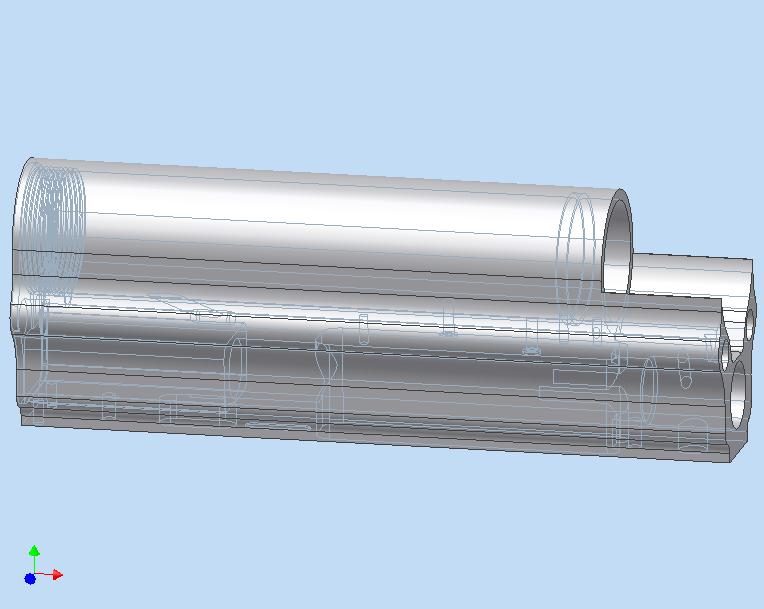

Part: DM3 body
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: DM3 body. I'm not exactly sure if the cosmetics are correct (I made this from a milled body) but it shouldn't matter much. Not all the threading is present.
Description: DM3 body. I'm not exactly sure if the cosmetics are correct (I made this from a milled body) but it shouldn't matter much. Not all the threading is present.

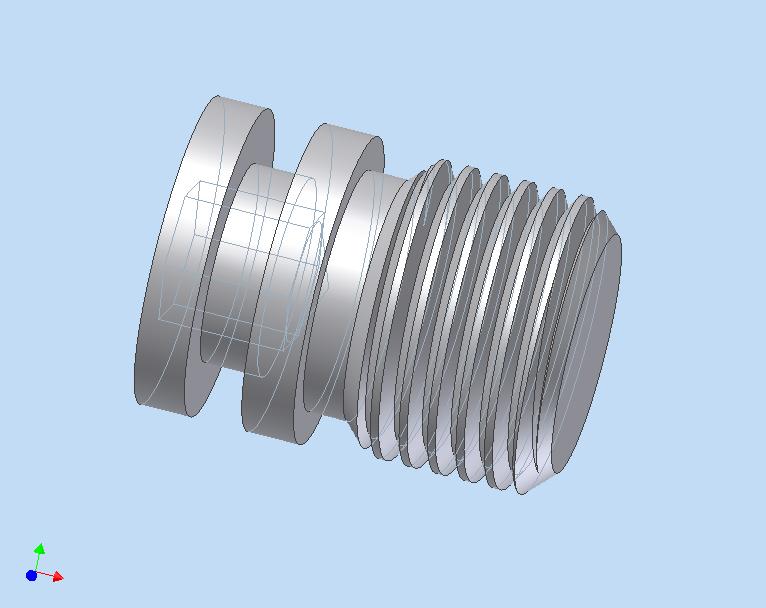

Part: Manifold plug (short)
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Air chamber manifold plug (three of the four plugs).
Description: Air chamber manifold plug (three of the four plugs).

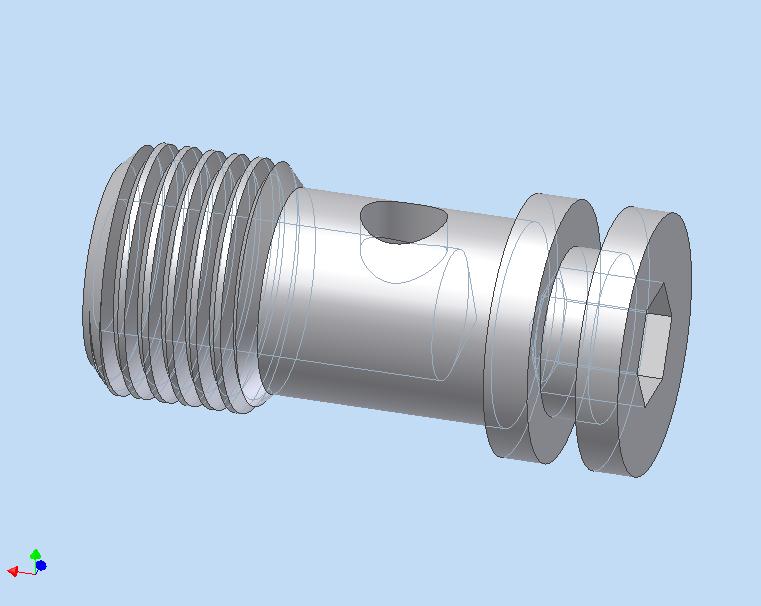

Part: Manifold plug (long)
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Air chamber manifold plug (long plug in the front right chamber).
Description: Air chamber manifold plug (long plug in the front right chamber).

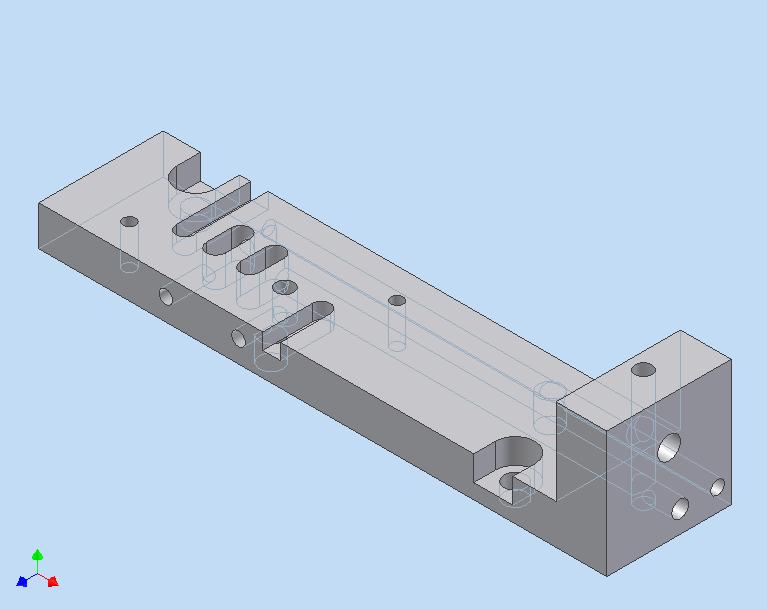

Part: Solenoid manifold
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Solenoid manifold. I think this is reasonably accurate but I've never really double-checked so it may be off.
Description: Solenoid manifold. I think this is reasonably accurate but I've never really double-checked so it may be off.

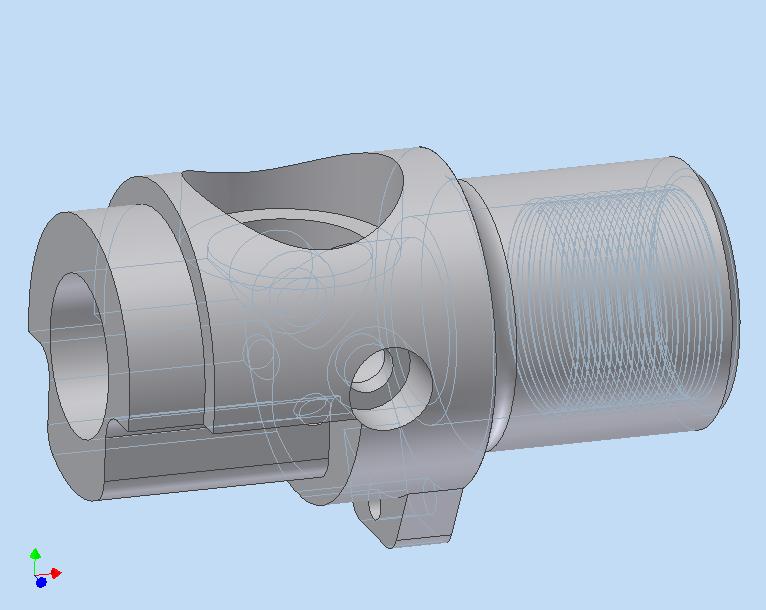

Part: Breech section
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Breech section, It's accurate except for the feedneck bore, which is an approximation.
Description: Breech section, It's accurate except for the feedneck bore, which is an approximation.
Part: Breech knob
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Breech knob, partially threaded, but accurate otherwise.
Description: Breech knob, partially threaded, but accurate otherwise.
Firing Assembly:

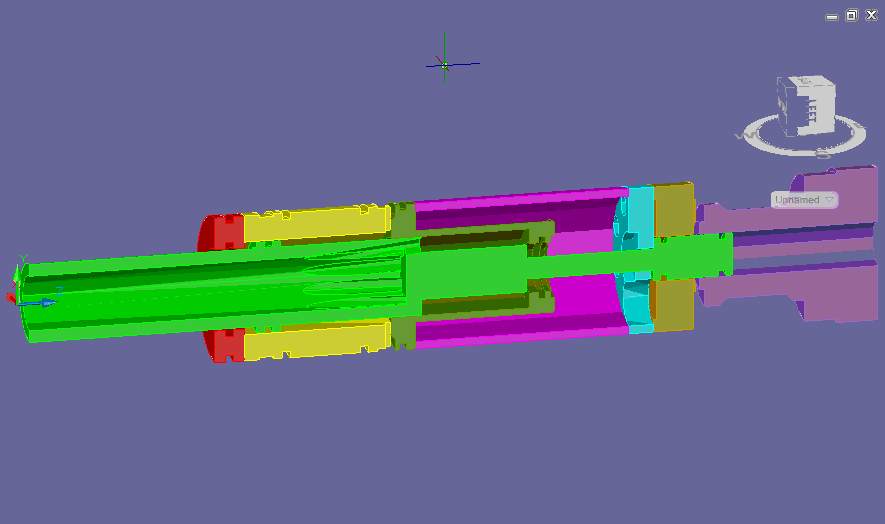

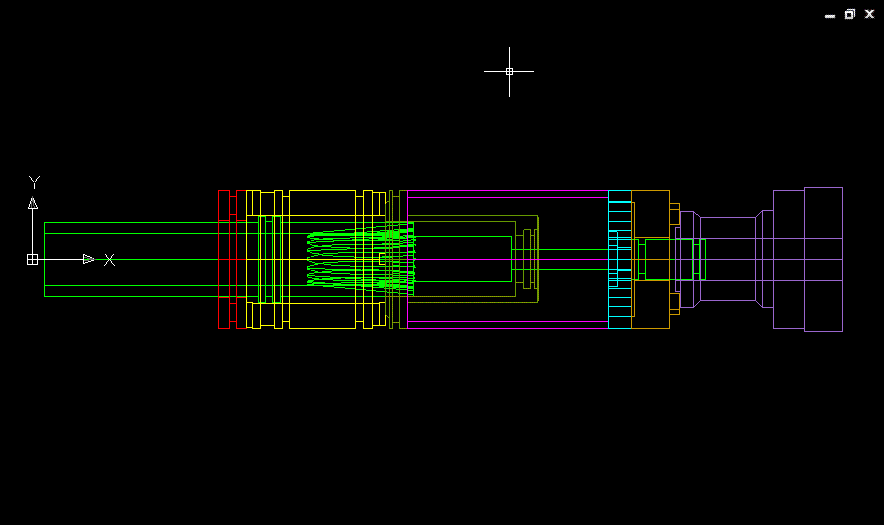

Part: Bolt assembly
Formats:
AutoCAD 3d solid (.dwg)
AutoCAD 3d solid (.dwg)
Created by: y0da900
Description: This model includes each of the firing assembly's components in a 3d solid view. Each component has its own layer so they can be altered or moved around independantly from the others.
Description: This model includes each of the firing assembly's components in a 3d solid view. Each component has its own layer so they can be altered or moved around independantly from the others.
Common parts:
Check the CAD file post index for links to universal parts which are compatible between multiple markers. This may include feednecks, regulators, air fittings, solenoids, and others.
