These are generic barrel models that can be used from marker to marker. The threading specifications are accurate enough to be functional on other markers, but is not guaranteed to be a production standard.
Thread Specifications:

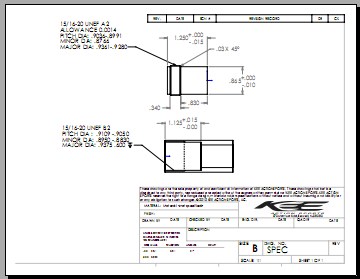

Part: Autococker barrel spec
Formats:
PDF document (.pdf)
PDF document (.pdf)
Created by: Manike
Description: Dimensions used by KEE and Empire markers for their Autococker barrel threads. At the time of this writing, such markers would include Mini, Axe, Empire Sniper, BT TM markers, Resurrection Autococker, and Vanquish.
Description: Dimensions used by KEE and Empire markers for their Autococker barrel threads. At the time of this writing, such markers would include Mini, Axe, Empire Sniper, BT TM markers, Resurrection Autococker, and Vanquish.
Part: Smart Parts barrel front spec
Formats:
PDF document (.pdf)
PDF document (.pdf)
Created by: Ydna
Description: Sample dimensions used for the male and female threads on All American fronts and Freak fronts made by Smart Parts. Note that these dimensions can also be used with the Empire Superfreak barrel fronts. The thread specification is 7/8"-32 double lead.
Also note that these barrel fronts have a small depression in their starting end which holds a Freak insert. To make All American backs compatible with this depression, AA backs have a small protrusion that takes up the unused space. This is only necessary if you were to make a barrel back that connects to a SP barrel front as shown.
Description: Sample dimensions used for the male and female threads on All American fronts and Freak fronts made by Smart Parts. Note that these dimensions can also be used with the Empire Superfreak barrel fronts. The thread specification is 7/8"-32 double lead.
Also note that these barrel fronts have a small depression in their starting end which holds a Freak insert. To make All American backs compatible with this depression, AA backs have a small protrusion that takes up the unused space. This is only necessary if you were to make a barrel back that connects to a SP barrel front as shown.
Part: Dye barrel front spec
Formats:
PDF document (.pdf)
PDF document (.pdf)
Created by: Ydna

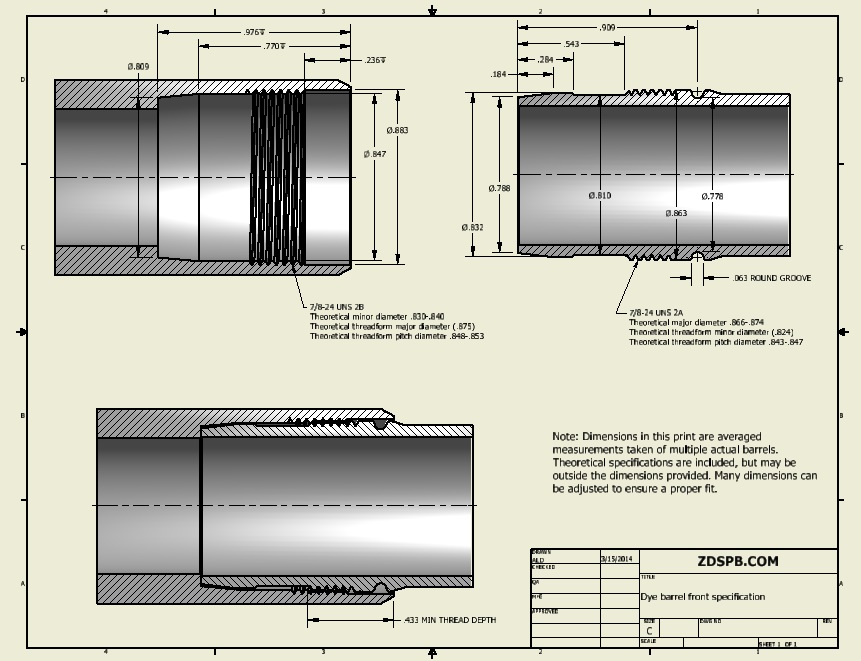

Description: Sample dimensions used for the male and female threads on a Dye Boomstick front. The thread specification is 7/8"-24.
Description: Sample dimensions used for the male and female threads on a Dye Boomstick front. The thread specification is 7/8"-24.
Misc barrel thread info:
A5/Prolite/Procarbine/BT barrel threads: 7/8"-20
Angel barrel threading: M24 x 2mm
G7 Fly Angel barrel threading: M22 x 1.25mm, 6H
Autococker barrel threading: 15/16"-20
Shocker barrel threading: 15/16"-16 double lead
Impulse/Ion/Luxe/ShockerNXT barrel threading: 15/16"-12 double lead
SP barrel front threading: 7/8"-32 double lead
Phantom barrel threading: 7/8"-14 ACME
Dye barrel front threading: 7/8"-24
Spyder barrel threading: M22 x 1.5mm
A5/Prolite/Procarbine/BT barrel threads: 7/8"-20
Angel barrel threading: M24 x 2mm
G7 Fly Angel barrel threading: M22 x 1.25mm, 6H
Autococker barrel threading: 15/16"-20
Shocker barrel threading: 15/16"-16 double lead
Impulse/Ion/Luxe/ShockerNXT barrel threading: 15/16"-12 double lead
SP barrel front threading: 7/8"-32 double lead
Phantom barrel threading: 7/8"-14 ACME
Dye barrel front threading: 7/8"-24
Spyder barrel threading: M22 x 1.5mm
One-piece barrels:

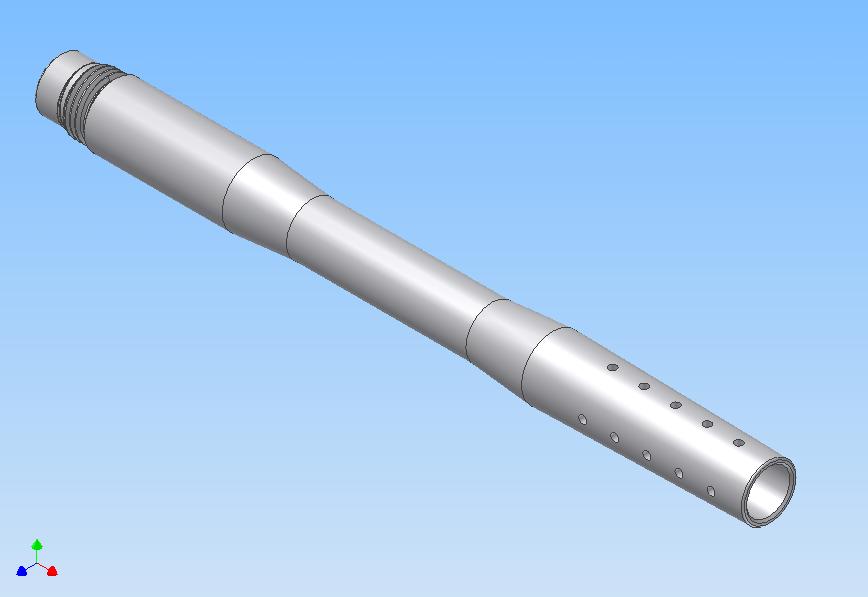

Part: Ion stock barrel
Created by: Ydna
Description: Powder-coated one-piece barrel that appears on most Ions from the factory (some others came with SP Progressive barrels). This is a good demo for other SP barrels made from their 2006 series styles with flared muzzles.
Description: Powder-coated one-piece barrel that appears on most Ions from the factory (some others came with SP Progressive barrels). This is a good demo for other SP barrels made from their 2006 series styles with flared muzzles.

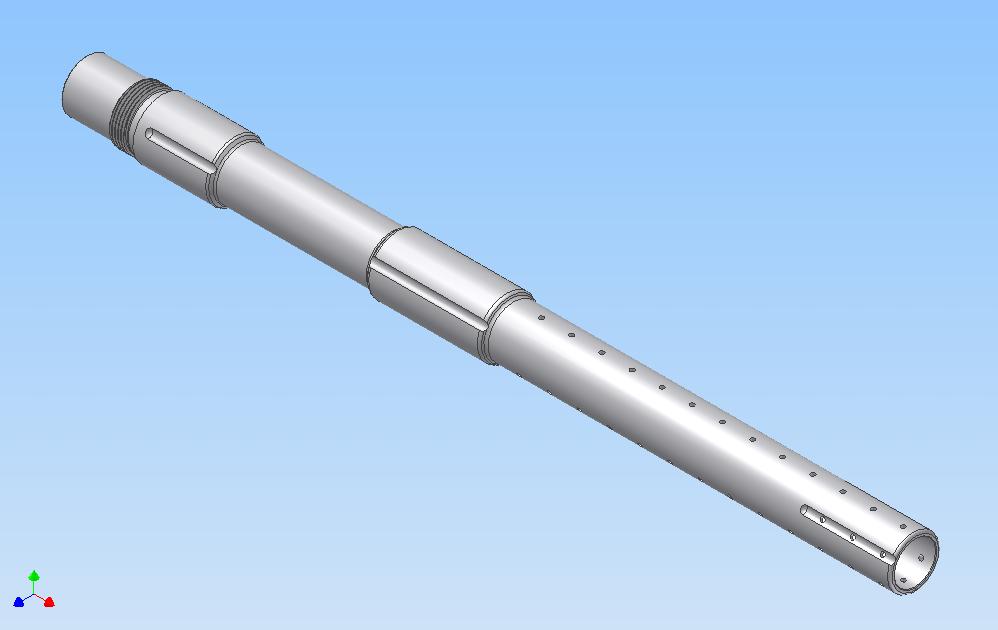

Part: CP barrel
Created by: Ydna
Description: A one-piece Autococker-threaded barrel made by Custom Products. This particular was made for the FEP Quest marker.
Description: A one-piece Autococker-threaded barrel made by Custom Products. This particular was made for the FEP Quest marker.

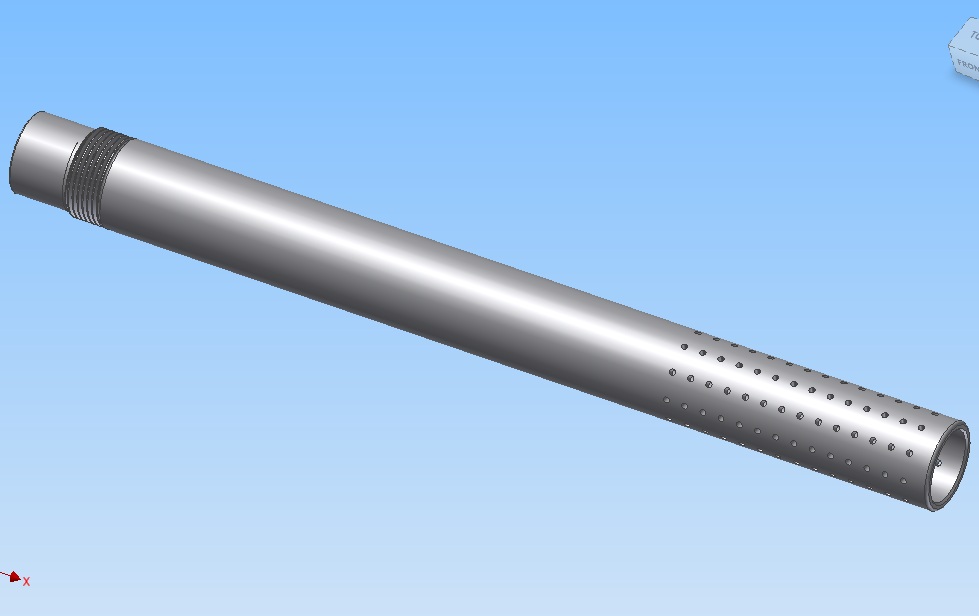

Part: Tippmann X7 Phenom stock barrel
Formats:
ACIS/SAT file (.sat)
ACIS/SAT file (.sat)
Created by: Ydna
Description: One-piece barrel found on Tippmann X7 Phenom markers out-of-the-box. Barrel thread is the same as A-5 and BT markers.
Description: One-piece barrel found on Tippmann X7 Phenom markers out-of-the-box. Barrel thread is the same as A-5 and BT markers.
Smart Parts Two-Piece Barrels:
These barrel backs and fronts are designed to mate with one-another to create a full barrel.

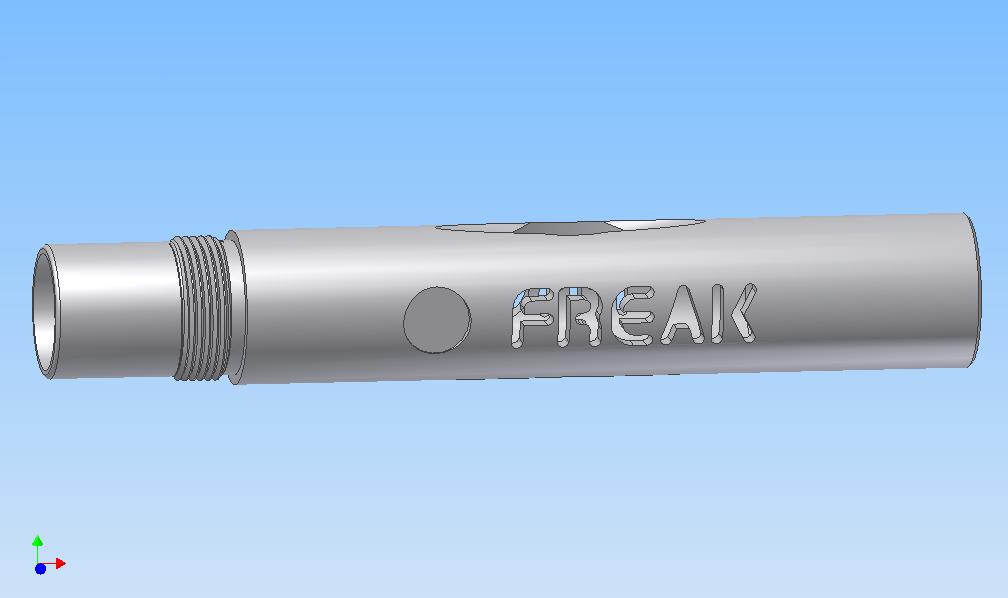

Part: Autococker Freak back
Created by: Ydna
Description: Aluminum freak back (series 2002) with Autococker threading. Jewel not included.
Description: Aluminum freak back (series 2002) with Autococker threading. Jewel not included.

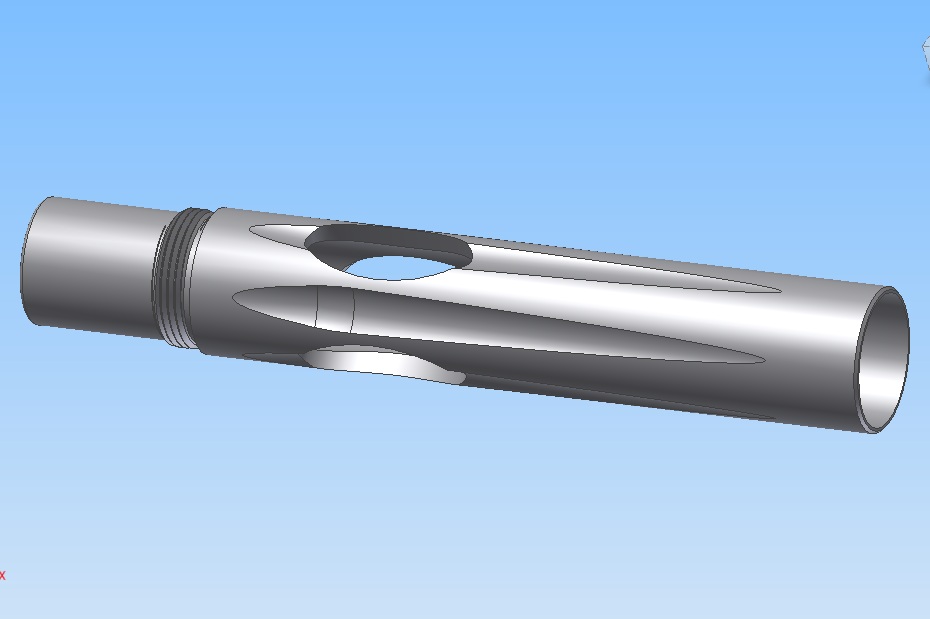

Part: Autococker SuperFreak back
Formats:
ACIS/SAT file (.sat)
ACIS/SAT file (.sat)
Created by: Ydna
Description: Empire's Superfreak barrel back (standard version that could be purchased off-the-shelf).
Description: Empire's Superfreak barrel back (standard version that could be purchased off-the-shelf).

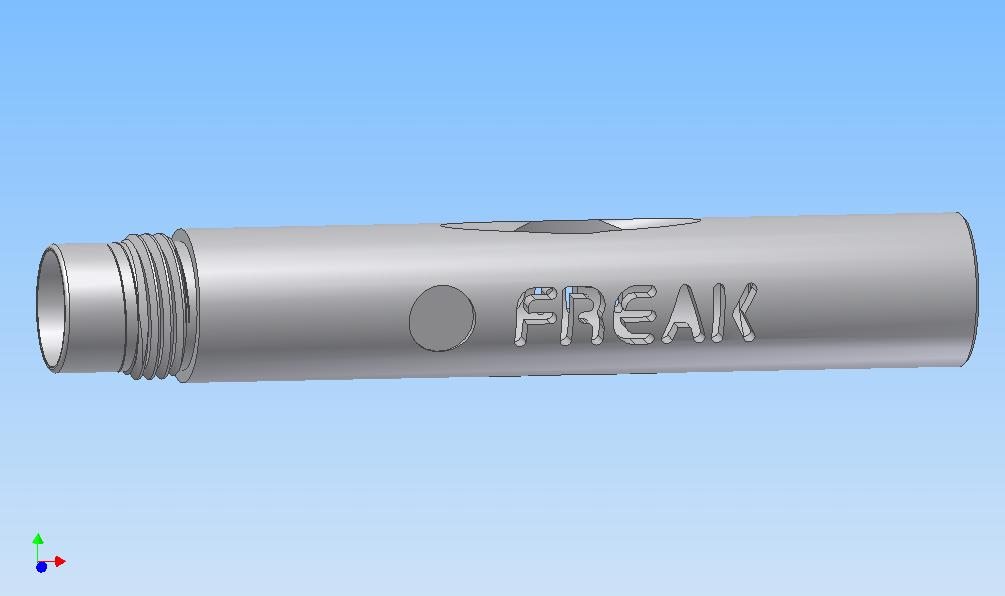

Part: Impulse Freak back
Created by: Ydna
Description: Aluminum freak back (series 2002) with Impulse/Ion/Nerve/NXT/Luxe threading. Jewel not included.
Description: Aluminum freak back (series 2002) with Impulse/Ion/Nerve/NXT/Luxe threading. Jewel not included.

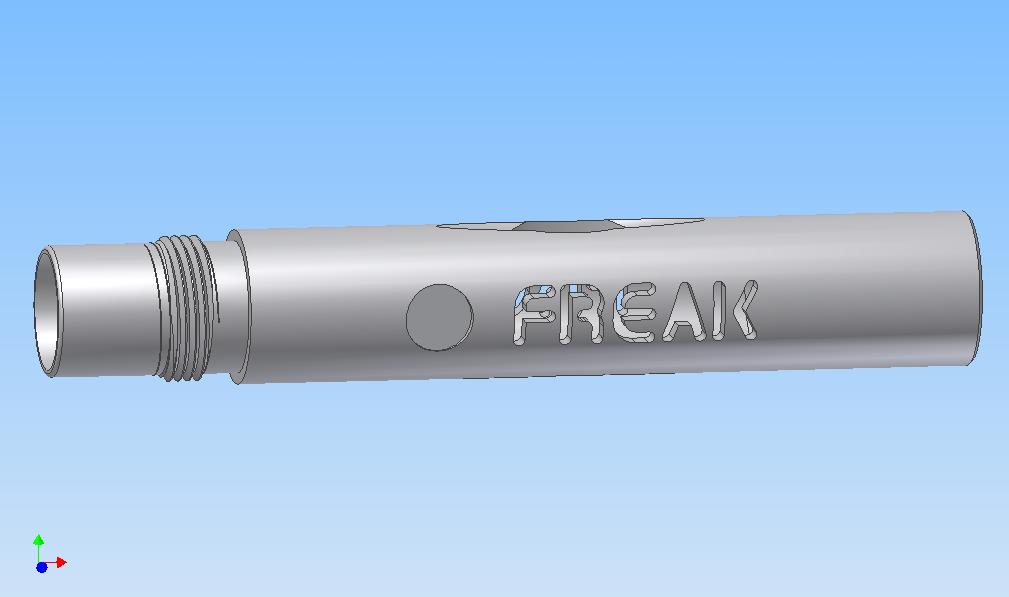

Part: Shocker Freak back
Created by: Ydna
Description: Aluminum freak back (series 2002) with Shocker threading. Jewel not included.
Description: Aluminum freak back (series 2002) with Shocker threading. Jewel not included.

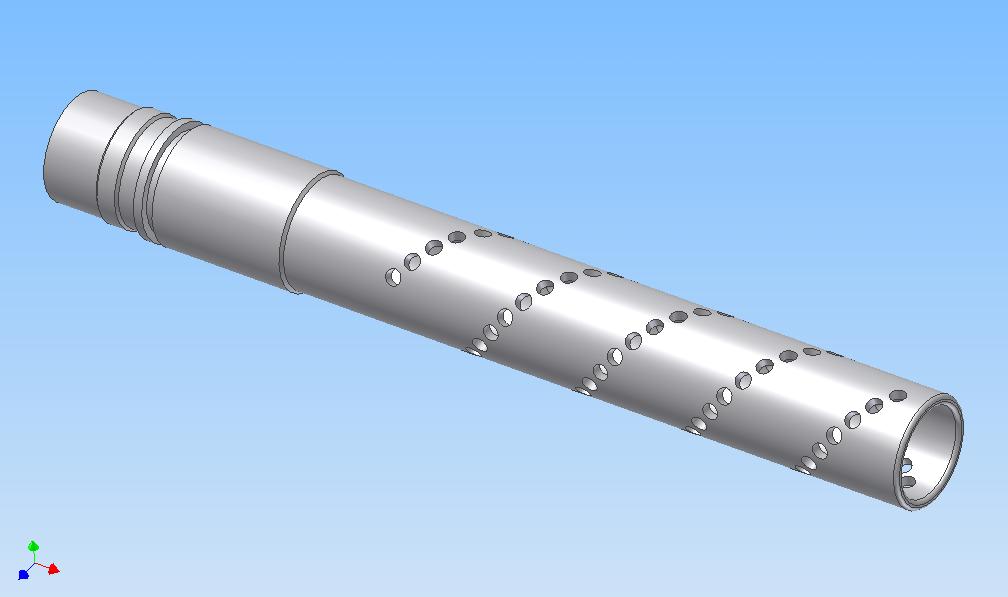

Part: All American 12 inch front
Created by: Ydna
Description: All American style barrel front for an SP back. This is a short 12 inch version (which only makes a 12 inch barrel when mated with an AA back).
Description: All American style barrel front for an SP back. This is a short 12 inch version (which only makes a 12 inch barrel when mated with an AA back).

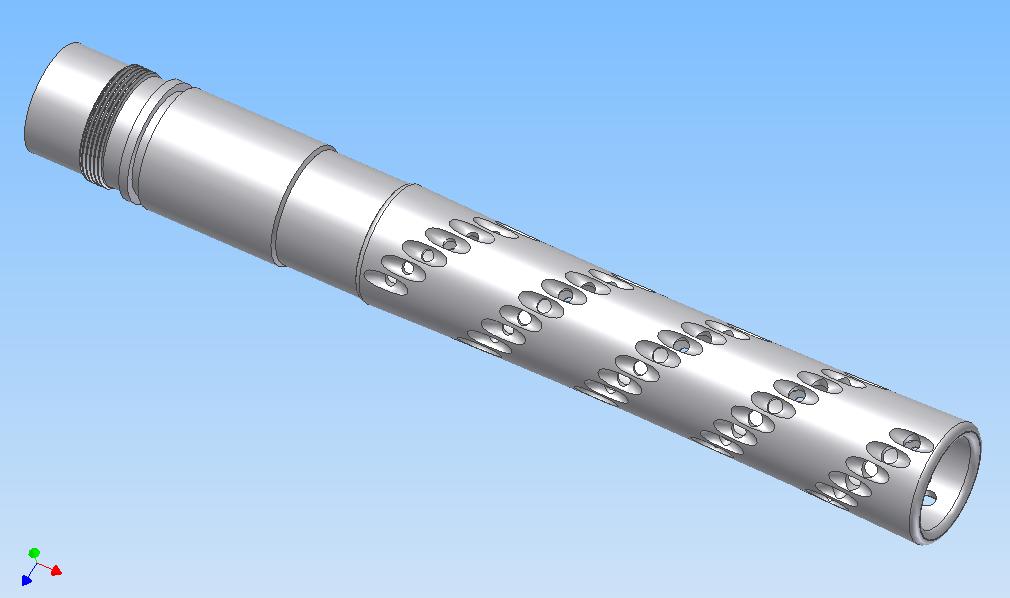

Part: Freak 12 inch front
Created by: Ydna
Description: Freak style barrel front for an SP back. This is a short 12 inch version (which only makes a 12 inch barrel when mated with a Freak back)
Description: Freak style barrel front for an SP back. This is a short 12 inch version (which only makes a 12 inch barrel when mated with a Freak back)

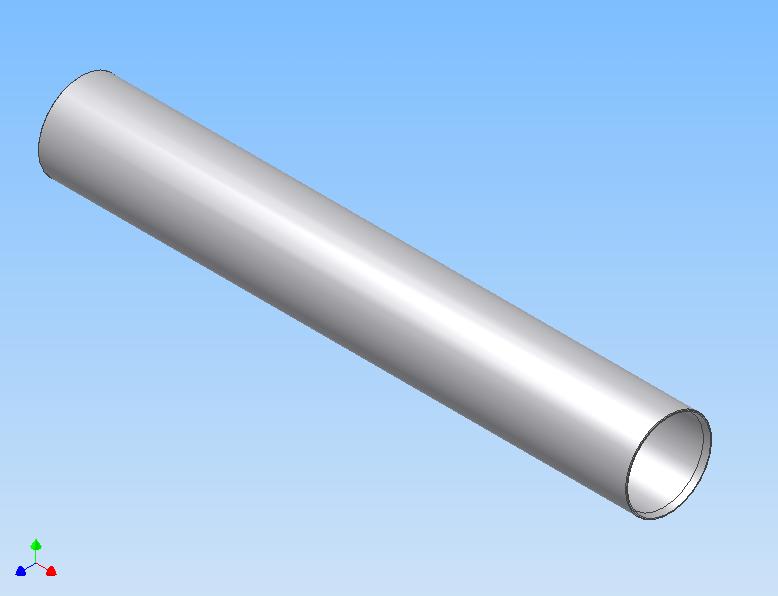

Part: Freak insert, 0.689
Created by: Ydna
Description: Model for a typical aluminum freak insert, this one happens to be the 0.689 [blue] model. For the record, the outside diameter of other Freak inserts isn't as critical of a dimension compared to the inside diameter (the bore size) and thus it isn't as tightly controlled. Sometimes, one-piece non-SP barrels that have been retrofitted to hold Freak inserts will not work very well with EVERY insert out there.
Description: Model for a typical aluminum freak insert, this one happens to be the 0.689 [blue] model. For the record, the outside diameter of other Freak inserts isn't as critical of a dimension compared to the inside diameter (the bore size) and thus it isn't as tightly controlled. Sometimes, one-piece non-SP barrels that have been retrofitted to hold Freak inserts will not work very well with EVERY insert out there.
Dye Two-Piece Barrels:

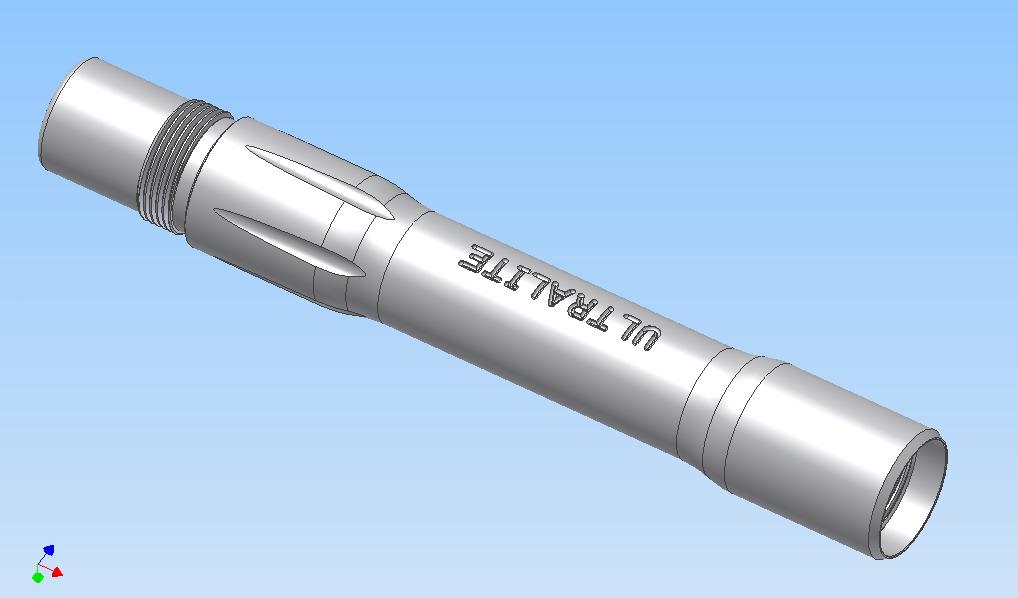

Part: Ultralite back
Created by: Ydna
Description: Ultralite barrel back, threaded for Autococker-thread markers.
Description: Ultralite barrel back, threaded for Autococker-thread markers.

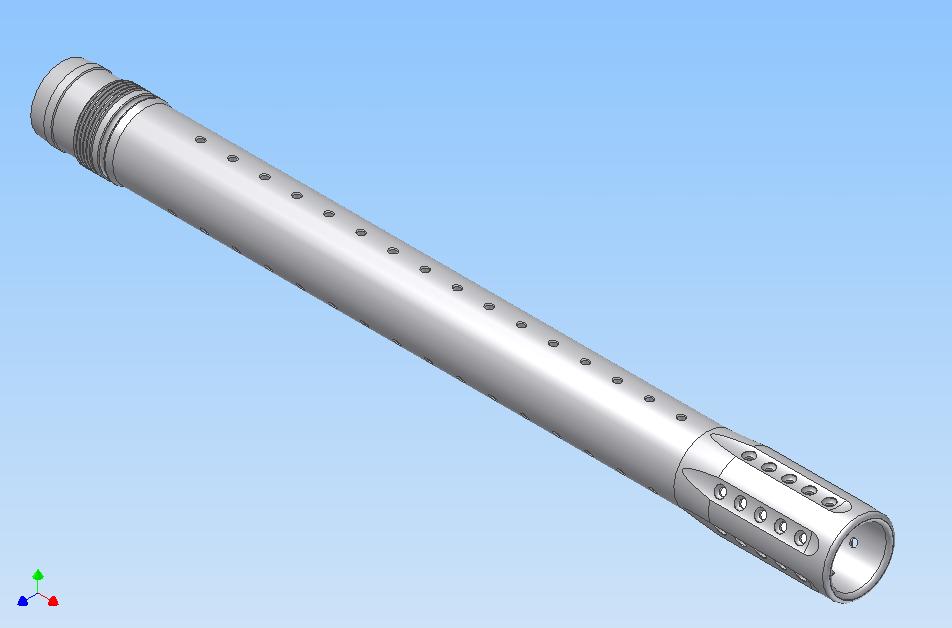

Part: Ultralite 16 inch front
Created by: Ydna
Description: This barrel front mates with an Ultralite back to form a 16 inch barrel in total.
Description: This barrel front mates with an Ultralite back to form a 16 inch barrel in total.

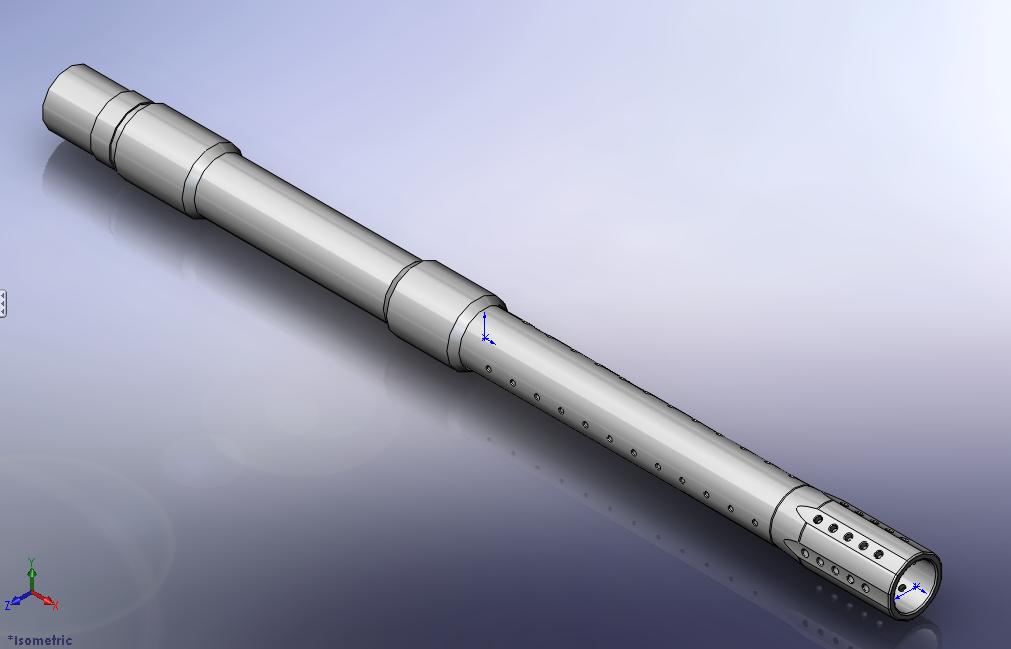

Part: Dye Boomstick Assembly
Formats:
SolidWorks assembly file (.sldasm)
SolidWorks assembly file (.sldasm)
Created by: Chris Martin
Description: This folder contains two part files (barrel back and barrel front) as well as a SolidWorks assembly file mating the two together. Threads not included but their related diameters are present.
Description: This folder contains two part files (barrel back and barrel front) as well as a SolidWorks assembly file mating the two together. Threads not included but their related diameters are present.
