Reverse-engineered parts used by Axe markers. Note that Axes share some items with Invert/Empire Minis; check there for other parts.

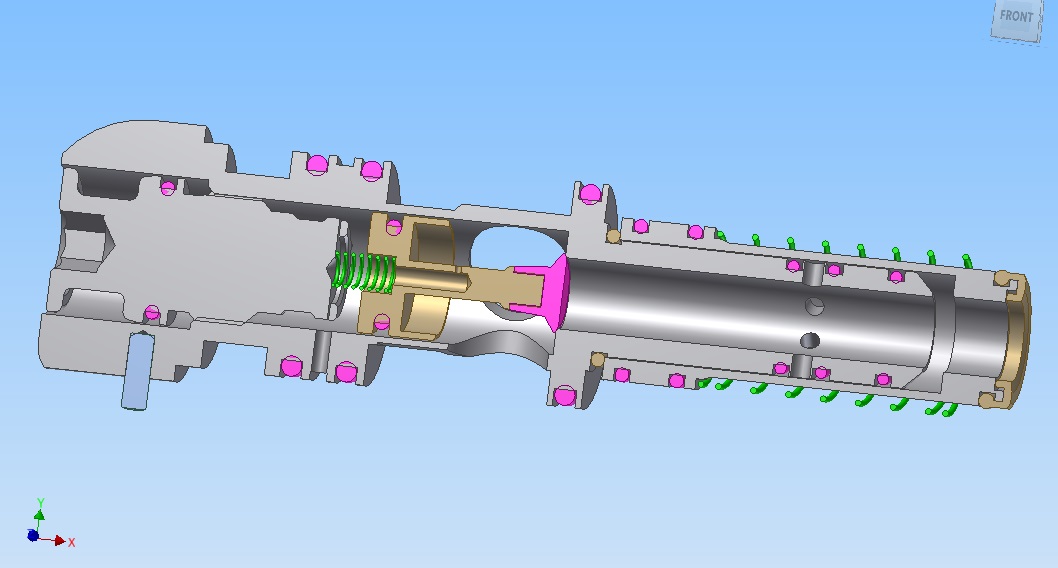

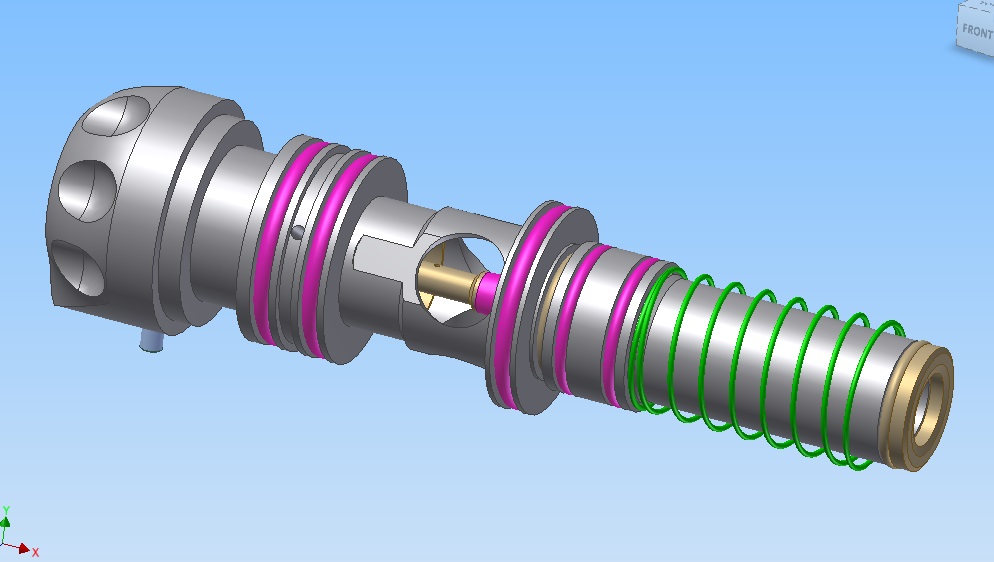

Part: Axe firing assembly
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: These models were used to approximate the firing assembly. This file contains multiple components for each piece of the assembly.
Description: These models were used to approximate the firing assembly. This file contains multiple components for each piece of the assembly.

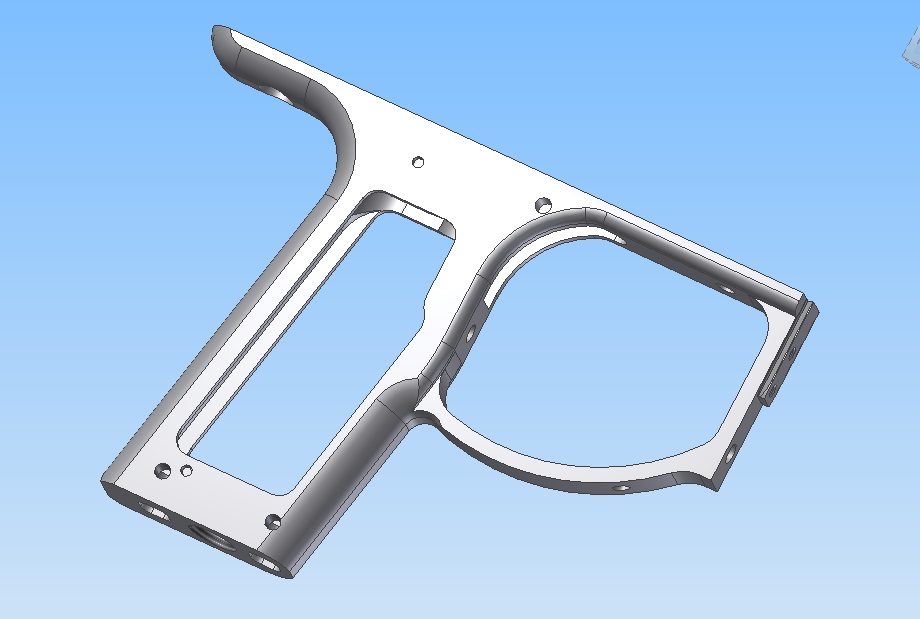

Part: Axe stock frame
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: Reasonably accurate model of an Axe stock frame.
Description: Reasonably accurate model of an Axe stock frame.
Part: Axe transfer plate
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

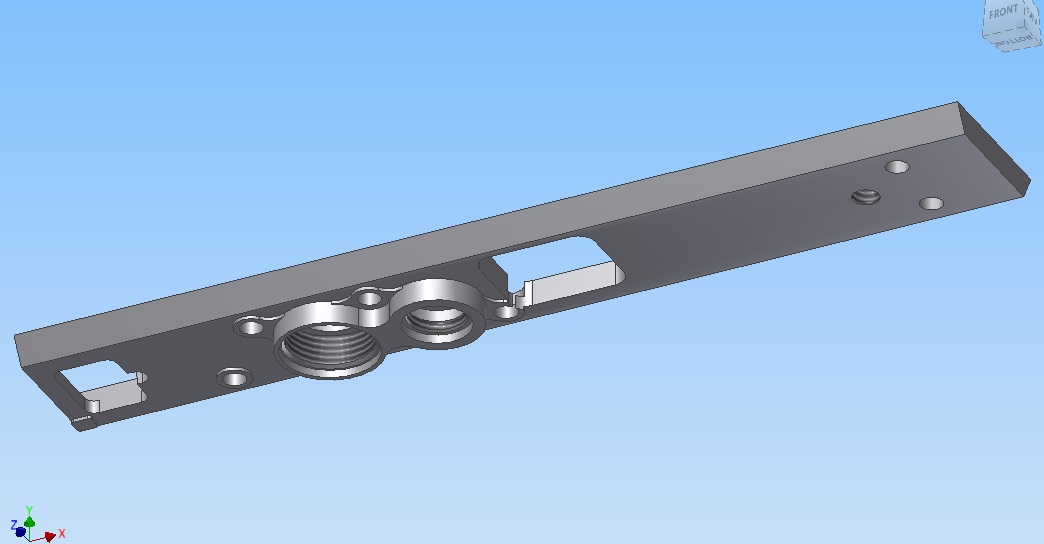

Description: Reasonably accurate model of an Axe stock transfer plate.
Description: Reasonably accurate model of an Axe stock transfer plate.

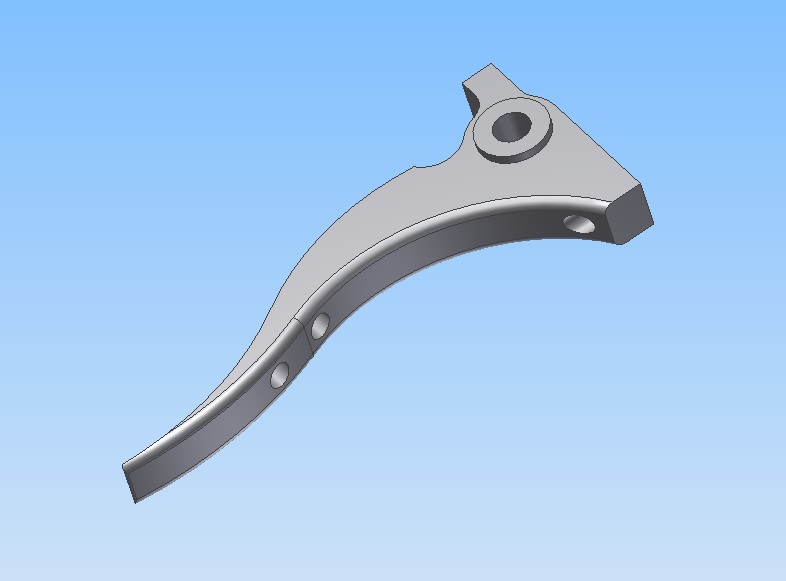

Part: Axe stock trigger
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: Stock trigger from an Axe or AxePro. Note that the stock trigger used in Mini-GS markers is almost identical, but using a bushing instead of a bearing.
Description: Stock trigger from an Axe or AxePro. Note that the stock trigger used in Mini-GS markers is almost identical, but using a bushing instead of a bearing.
Part: Mini/Axe detent cap
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

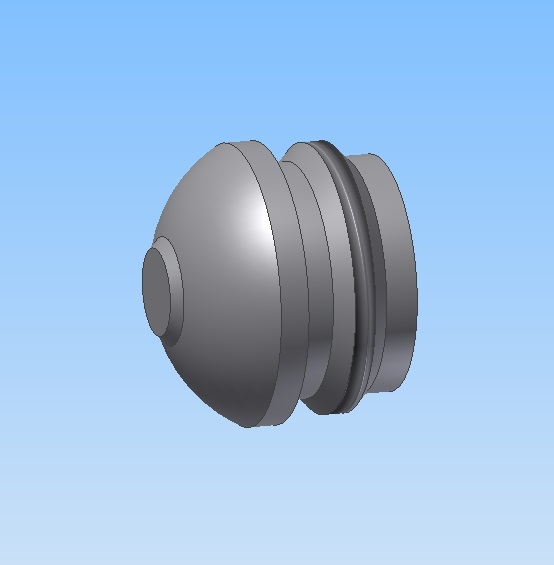

Description: Detent screw cap used on an Axe. I believe this is the same part used with classic Minis and MiniGS's.
Description: Detent screw cap used on an Axe. I believe this is the same part used with classic Minis and MiniGS's.

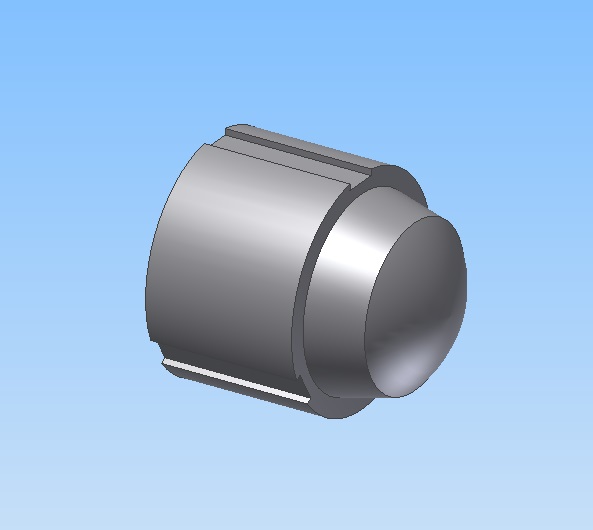

Part: Mini/Axe detent plunger v2
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: Detent plunger used for classic Mini, MiniGS, and classic Axe.
Description: Detent plunger used for classic Mini, MiniGS, and classic Axe.

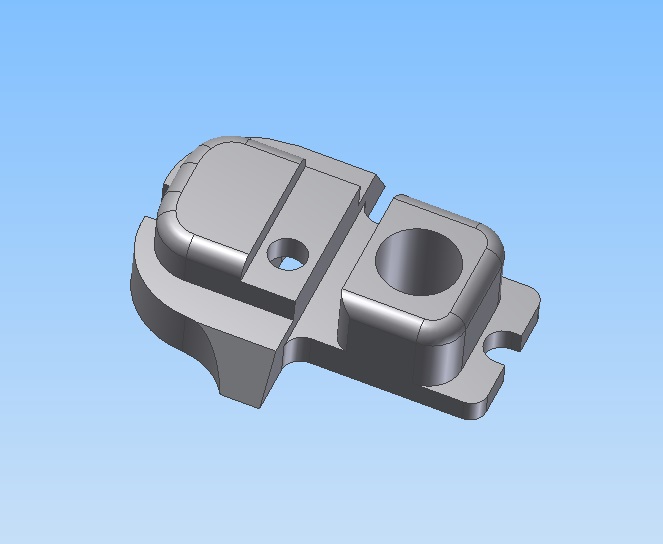

Part: Quickrelease pin follower
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: This cast steel item contains the quickrelease pin and prevents it from shooting out the back of the marker body. It has a small bearing ball imbedded in the middle, which isn't modeled into the part.
Description: This cast steel item contains the quickrelease pin and prevents it from shooting out the back of the marker body. It has a small bearing ball imbedded in the middle, which isn't modeled into the part.
Part: Quickrelease button
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

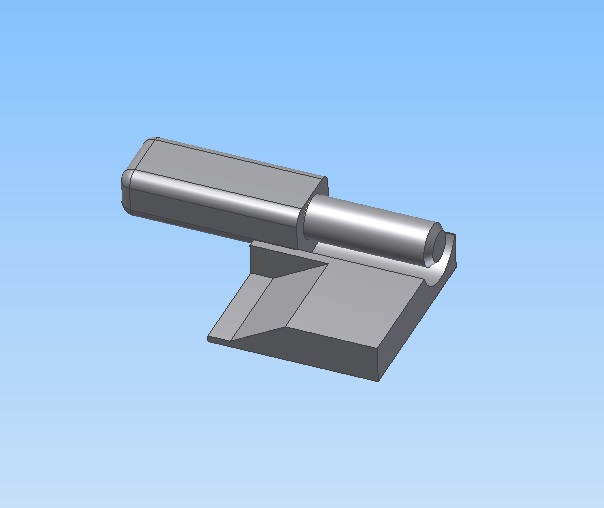

Description: This component sits within the top of the frame. The pin section is a separate component, but both are modeled together in this part.
Description: This component sits within the top of the frame. The pin section is a separate component, but both are modeled together in this part.

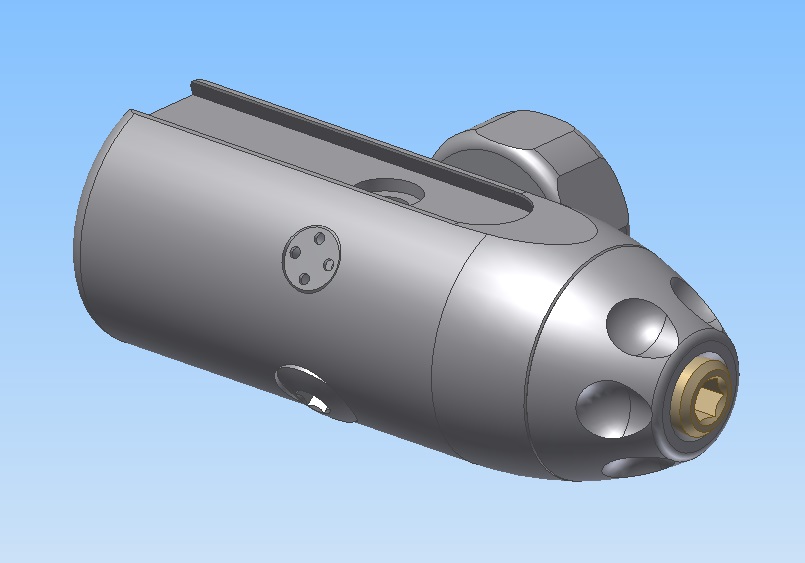

Part: Relay ASA external assembly
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

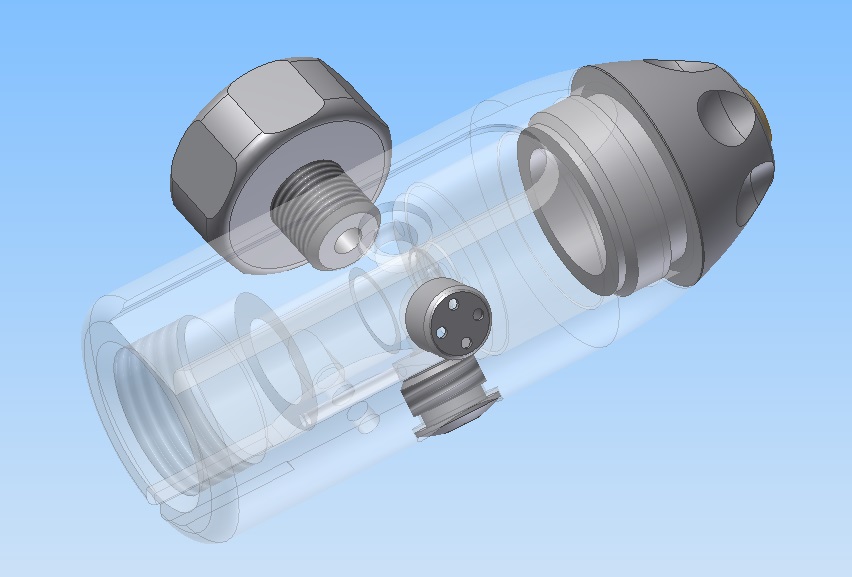

Description: Tank regulator/ASA from an Axe. This can also be used with classic Minis. The assembly file contains the housing, adjustment cap/screw, microgauge, input filter cap, and blowoff cap. None of the internals are included.
Description: Tank regulator/ASA from an Axe. This can also be used with classic Minis. The assembly file contains the housing, adjustment cap/screw, microgauge, input filter cap, and blowoff cap. None of the internals are included.
Part: Axe sensor board assembly
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

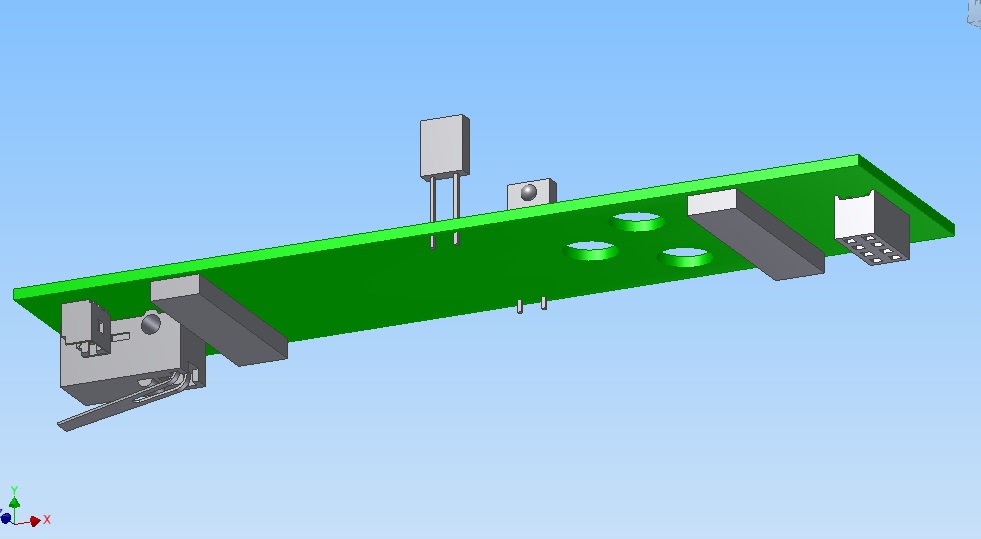

Description: Assembly file from an Axe sensor board. It includes the PCB, eyes, rubber pads, trigger microswitch, and connectors.
Description: Assembly file from an Axe sensor board. It includes the PCB, eyes, rubber pads, trigger microswitch, and connectors.
Nummech Axe Components:

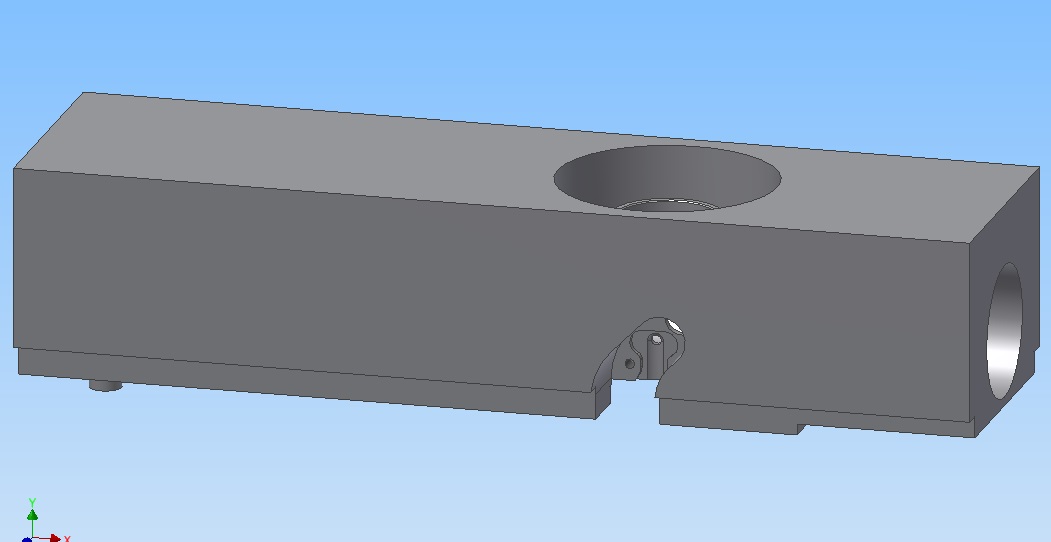

Part: Num-Axe extended Slug body - unmilled blank
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products

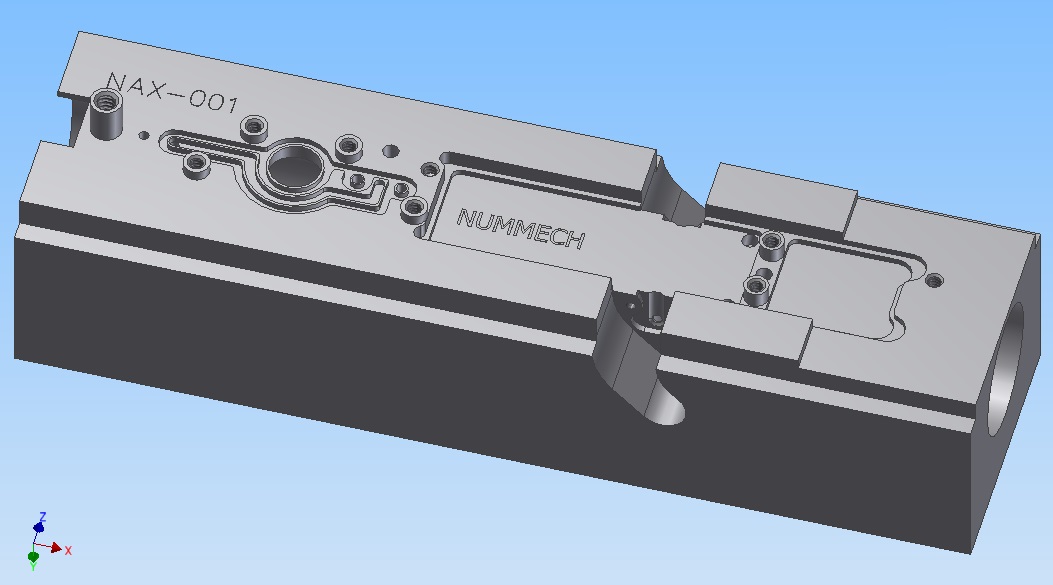

Description: Published model for a Nummech Axe body blank in its unmilled state. This model includes pockets for eye covers which are separate components.
Note: You must double-check your designs to ensure your new cosmetics don't extend beneath the eye cover area which is much wider than the rest of the breech area. Use the "Tube model" body to verify your design.
Description: Published model for a Nummech Axe body blank in its unmilled state. This model includes pockets for eye covers which are separate components.
Note: You must double-check your designs to ensure your new cosmetics don't extend beneath the eye cover area which is much wider than the rest of the breech area. Use the "Tube model" body to verify your design.

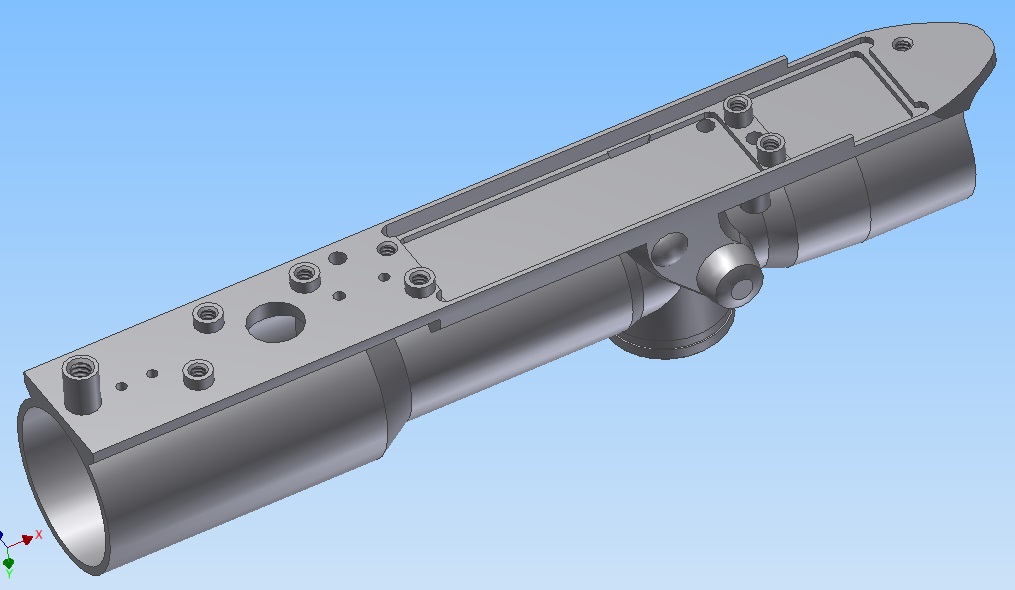

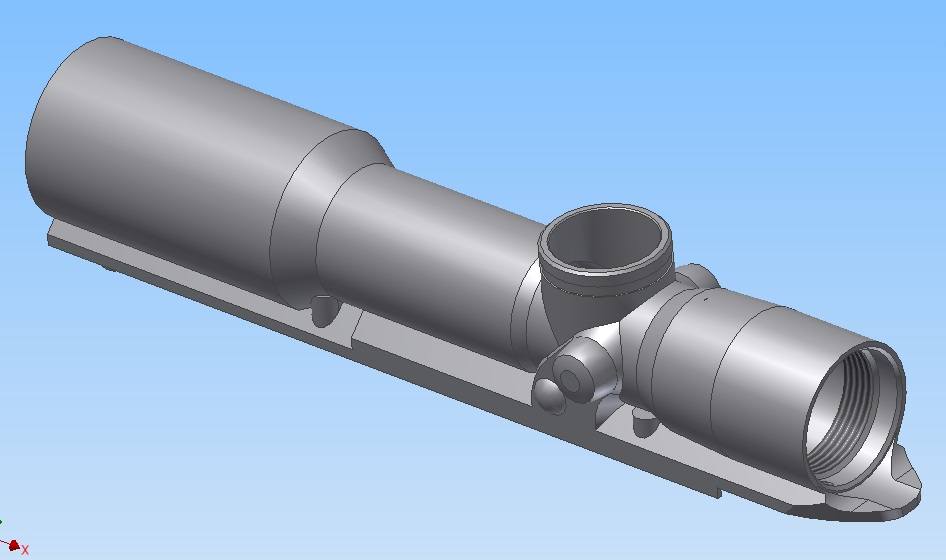

Part: Num-Axe extended Slug body - Tube model
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products
Description: This body is functionally identical to the unmilled blank in terms of internals. The outside has been altered to show the minimum amount of material required to make a functional Axe. This model can be used as a safety check, or the model can be used as a starting point to "add" cosmetic features outwards from the tube shapes.
Note: You must double-check your designs to ensure your new cosmetics aren't too deep. Do not create any cuts into the eye cover section, otherwise you'll come in contact with the eye cover screw head, detent spring, etc.
Description: This body is functionally identical to the unmilled blank in terms of internals. The outside has been altered to show the minimum amount of material required to make a functional Axe. This model can be used as a safety check, or the model can be used as a starting point to "add" cosmetic features outwards from the tube shapes.
Note: You must double-check your designs to ensure your new cosmetics aren't too deep. Do not create any cuts into the eye cover section, otherwise you'll come in contact with the eye cover screw head, detent spring, etc.
Part: Nummech side fixture assembly
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products

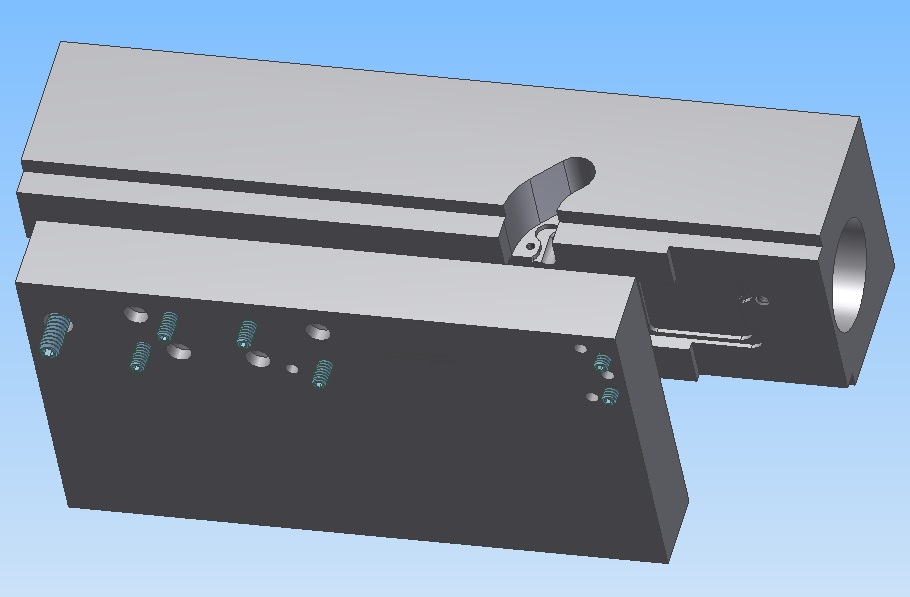

Description: This file shows one possible sample body workholding fixture which can be used to mill cosmetics onto a Slug body. This fixture can be used to position the body in order to access the right side, left side, and top side. This is absolutely the most simple fixture you could use on any type of milling machine, although there are many possible ways to complete the same job.
The fixture uses the following hardware: 1qty 10-24 x 1" set screw, 6qty 6-32 x 1" set screw; 4qty 1/8"dia x 5/8" dowel pins.
Note: this fixture is not meant for use with an Empire OEM Axe body. Factory bodies do not have alignment pinholes.
Description: This file shows one possible sample body workholding fixture which can be used to mill cosmetics onto a Slug body. This fixture can be used to position the body in order to access the right side, left side, and top side. This is absolutely the most simple fixture you could use on any type of milling machine, although there are many possible ways to complete the same job.
The fixture uses the following hardware: 1qty 10-24 x 1" set screw, 6qty 6-32 x 1" set screw; 4qty 1/8"dia x 5/8" dowel pins.
Note: this fixture is not meant for use with an Empire OEM Axe body. Factory bodies do not have alignment pinholes.
Part: Axe Slug body, printed reference sheets
Formats:
PDF file (.pdf)
PDF file (.pdf)
Created by: Ydna via Nummech Products

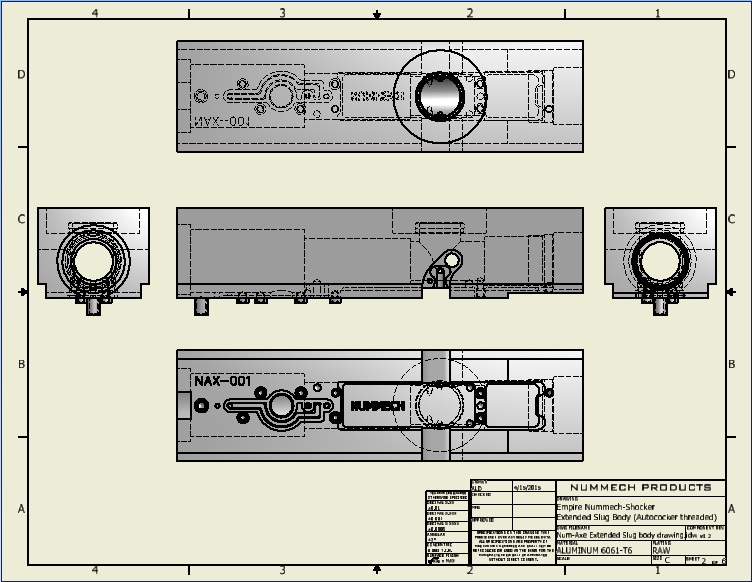

Description: These drawings are meant to accompany a Slug body to be of use for any machinist looking to design a fixture or otherwise perform work on the unmilled body. The drawings show details on how the bodies were made, areas that can be used for accurate measurements, along with areas that are not accurate. The reference sheets show drawings depicting the sample milling fixture (also available for download).
Description: These drawings are meant to accompany a Slug body to be of use for any machinist looking to design a fixture or otherwise perform work on the unmilled body. The drawings show details on how the bodies were made, areas that can be used for accurate measurements, along with areas that are not accurate. The reference sheets show drawings depicting the sample milling fixture (also available for download).
Common parts:
Check the CAD file post index for links to universal parts which are compatible between multiple markers. This may include feednecks, regulators, air fittings, solenoids, and others.
