Generic files for use with Autococker parts.
Part: Prostock Autococker body only
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

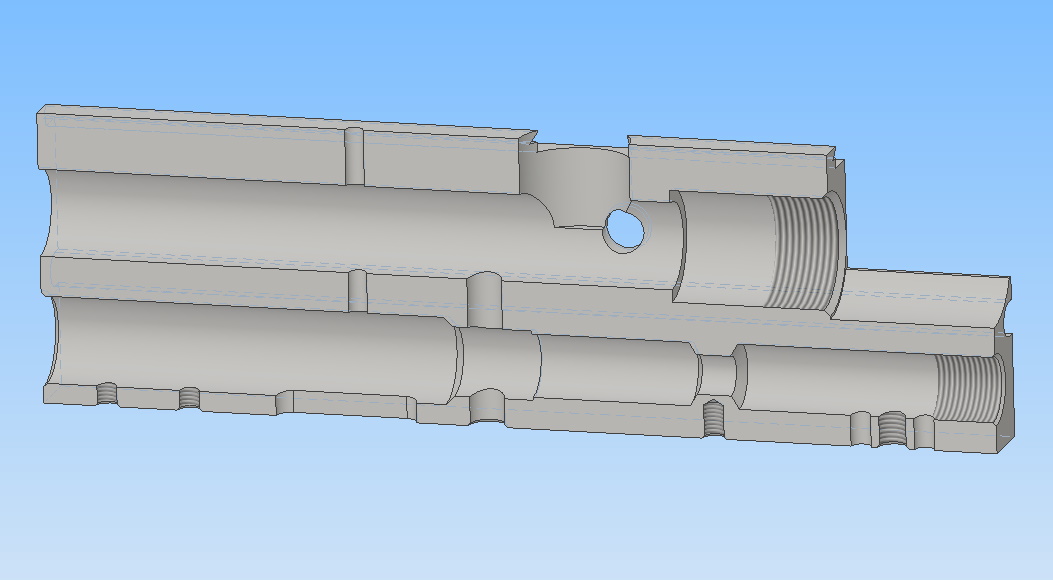

Description: 3d model for a Prostock Autococker body (vertical feed). The valve style is 9/16" using a jam-nut. All holes on the bottom of the body were measured using a coordinate measurement machine, which makes this model fairly accurate. It's not 100% perfect but it's close enough for any screw placement that you may have for other WGP bodies.
Description: 3d model for a Prostock Autococker body (vertical feed). The valve style is 9/16" using a jam-nut. All holes on the bottom of the body were measured using a coordinate measurement machine, which makes this model fairly accurate. It's not 100% perfect but it's close enough for any screw placement that you may have for other WGP bodies.
Part: 2000 RF & VF body
Formats:
Solidworks part file (.sldprt)
Solidworks part file (.sldprt)
Created by: Aimn4u2

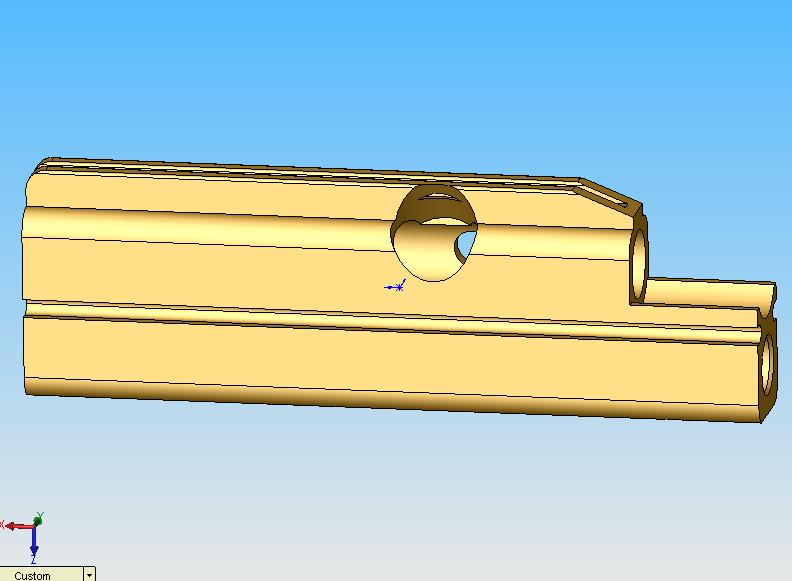

Description: This 3d model of a 2000 body includes both the right feed and vertical feed bodies. The part file will download with the RF model operations active, and the VF operations surpressed. You can selectively activate/deactivate the parts to change the model.
Description: This 3d model of a 2000 body includes both the right feed and vertical feed bodies. The part file will download with the RF model operations active, and the VF operations surpressed. You can selectively activate/deactivate the parts to change the model.
Part: 2000 VF body
Formats:
AutoCAD drawing (.dwg)
AutoCAD drawing (.dwg)
Created by: Josh "pbjosh" Coray
Description: Solid model for a 2000 vertical feed Autococker body in AutoCAD format. It includes the valve. "It's fairly close, and short of EXACT outside dims for those curves, and some valve internals, and the threads, it is fairly right on."
Description: Solid model for a 2000 vertical feed Autococker body in AutoCAD format. It includes the valve. "It's fairly close, and short of EXACT outside dims for those curves, and some valve internals, and the threads, it is fairly right on."
Part: Autococker three-way shaft
Formats:
AutoCAD exchange format (.dxf)
AutoCAD exchange format (.dxf)
Created by: Have Blue
Description: 2d specifications for the stock brass Autococker three-way valve shaft.
Description: 2d specifications for the stock brass Autococker three-way valve shaft.
Part: AKALMP Merlin extrustion 2d
Formats:
AutoCAD drawing (.dwg)
AutoCAD drawing (.dwg)
Created by: Ydna
Description: 3d solid model for an 8.05" Merlin body extrustion which were once available through Airsoldier.com (however they have ran out of stock as of approx 2016). The file depicts a 2d shape using an AutoCADfile.
Description: 3d solid model for an 8.05" Merlin body extrustion which were once available through Airsoldier.com (however they have ran out of stock as of approx 2016). The file depicts a 2d shape using an AutoCADfile.
Part: AKALMP Merlin extrustion solid
Formats:
Inventor 10 part (.ipt)
Inventor 10 part (.ipt)
Created by: Ydna
Description: Same model as above (8.05" Merlin body extrustion) but this time it's a 3d solid model rather than a 2d file.
Description: Same model as above (8.05" Merlin body extrustion) but this time it's a 3d solid model rather than a 2d file.
Part: Prostock VASA
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

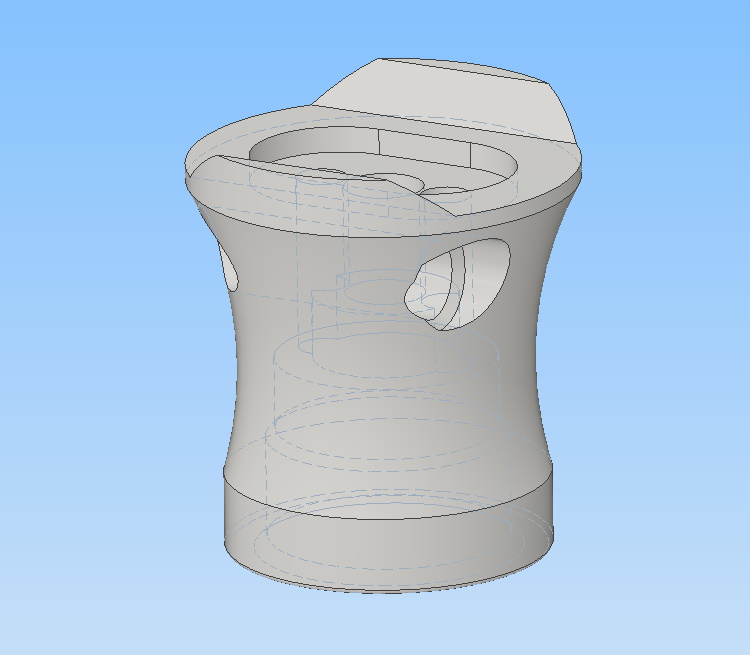

Description: Reverse-engineered model for a vertical ASA adapter ("VASA") that was used on a 2004 Prostock Autococker.
Description: Reverse-engineered model for a vertical ASA adapter ("VASA") that was used on a 2004 Prostock Autococker.
Frame parts:
Part: Benchmark 45 Slider frame
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: Reverse-engineered model for a Benchark 2k slider frame.
Description: Reverse-engineered model for a Benchark 2k slider frame.
Part: Pre-98 slide trigger plate
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna

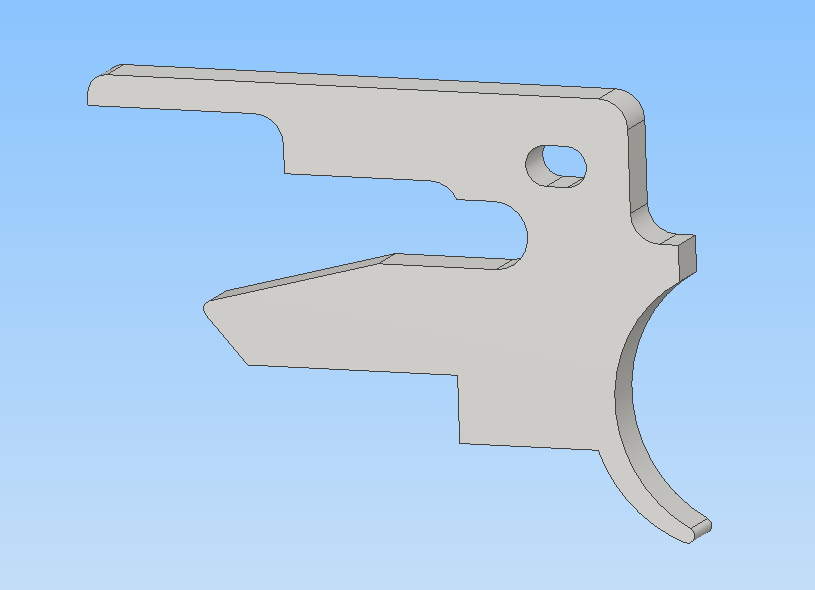

Description: Reverse-engineered model for a trigger plate. This version is from 1998 and earlier, when the trigger had three bottom ridges.
Description: Reverse-engineered model for a trigger plate. This version is from 1998 and earlier, when the trigger had three bottom ridges.
Part: Post-98 slide trigger plate
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: Reverse-engineered model for a trigger plate. This version is the 1999+ which has two bottom ridges.
Description: Reverse-engineered model for a trigger plate. This version is the 1999+ which has two bottom ridges.
Part: WGP Sear
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna
Description: Reverse-engineered model for a WGP sear. This version came from a 2004 Prostock grip frame frame.
Description: Reverse-engineered model for a WGP sear. This version came from a 2004 Prostock grip frame frame.
Part: Nummech N-autococker grip frame plexiglass grip panel
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products
Description: 3d model for a slim grip panel shape made specifically for an Nautococker grip frame (both slider or hinge version). The grip is curved on top so it won't ride parallel with the marker body, however you could modify the shape if you prefer.
Description: 3d model for a slim grip panel shape made specifically for an Nautococker grip frame (both slider or hinge version). The grip is curved on top so it won't ride parallel with the marker body, however you could modify the shape if you prefer.
Nummech Autococker bodies:
Part: Nummech 2k full-length Autococker body - unmilled blank
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products

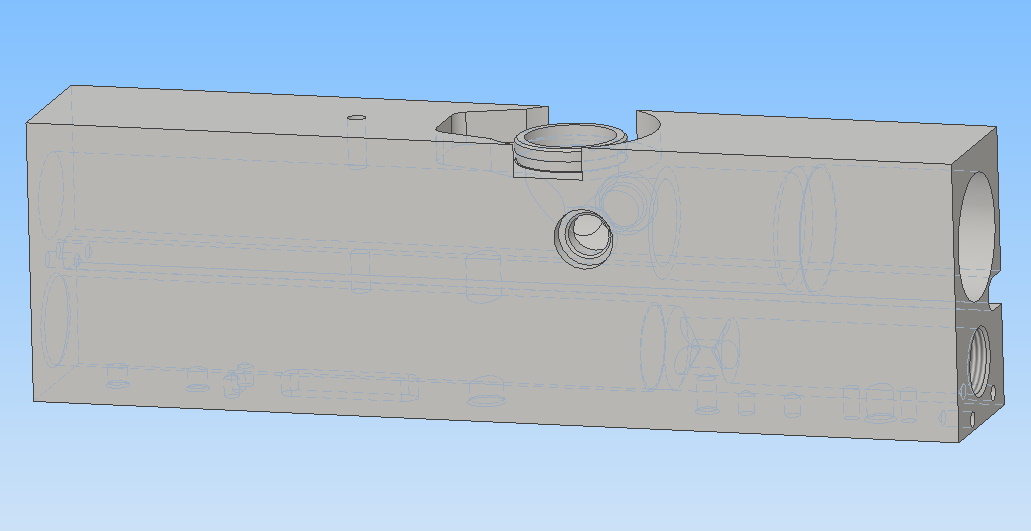

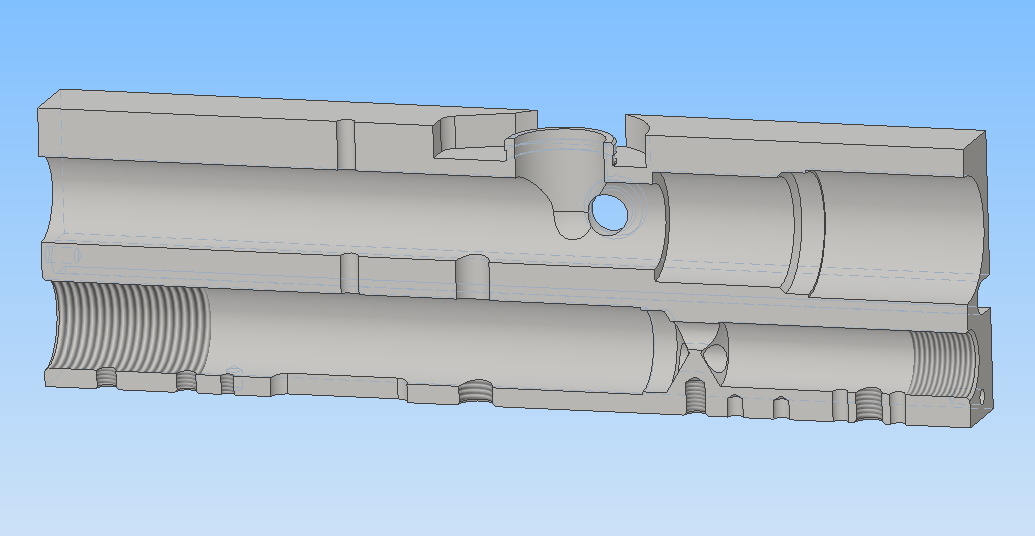

Description: 3d model for one of Nummech's unmilled body blanks. These bodies measure 1.250" wide which allows for additional material on the sides and top. All internal cuts are modeled, including an offset Empire-spec feedneck, 11/16" bores, tri-port air transfer to the valve chamber, and left-side pump slot only. The bodies have 1/8" diameter pinholes on the bottom which can be used for fixturing if needed.
Description: 3d model for one of Nummech's unmilled body blanks. These bodies measure 1.250" wide which allows for additional material on the sides and top. All internal cuts are modeled, including an offset Empire-spec feedneck, 11/16" bores, tri-port air transfer to the valve chamber, and left-side pump slot only. The bodies have 1/8" diameter pinholes on the bottom which can be used for fixturing if needed.
Part: Nummech 2k full-length Autococker body - Tube body
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products

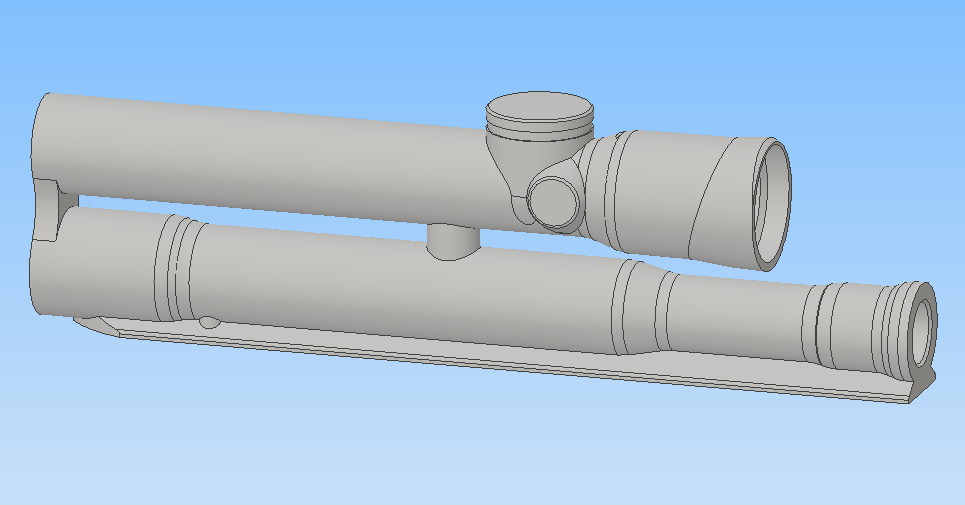

Description: 3d model of an "ultralite" milled Autococker body using a Nummech blank as the basis. This model can be used as a branching-off point to create new cosmetics and other features. It can also be used as a verification model to check whether your cosmetics will be too thin surrounding critical areas like the bores or holes.
This model is similar to an UL-milled Autococker but Nummech blanks have some design differences such as the offset feedneck, detents, and holes on the bottom of the body. Therefore this is not intended to be used with a typical Autococker body.
Description: 3d model of an "ultralite" milled Autococker body using a Nummech blank as the basis. This model can be used as a branching-off point to create new cosmetics and other features. It can also be used as a verification model to check whether your cosmetics will be too thin surrounding critical areas like the bores or holes.
This model is similar to an UL-milled Autococker but Nummech blanks have some design differences such as the offset feedneck, detents, and holes on the bottom of the body. Therefore this is not intended to be used with a typical Autococker body.
Part: Nummech 2k mid-block Autococker body - unmilled blank
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products

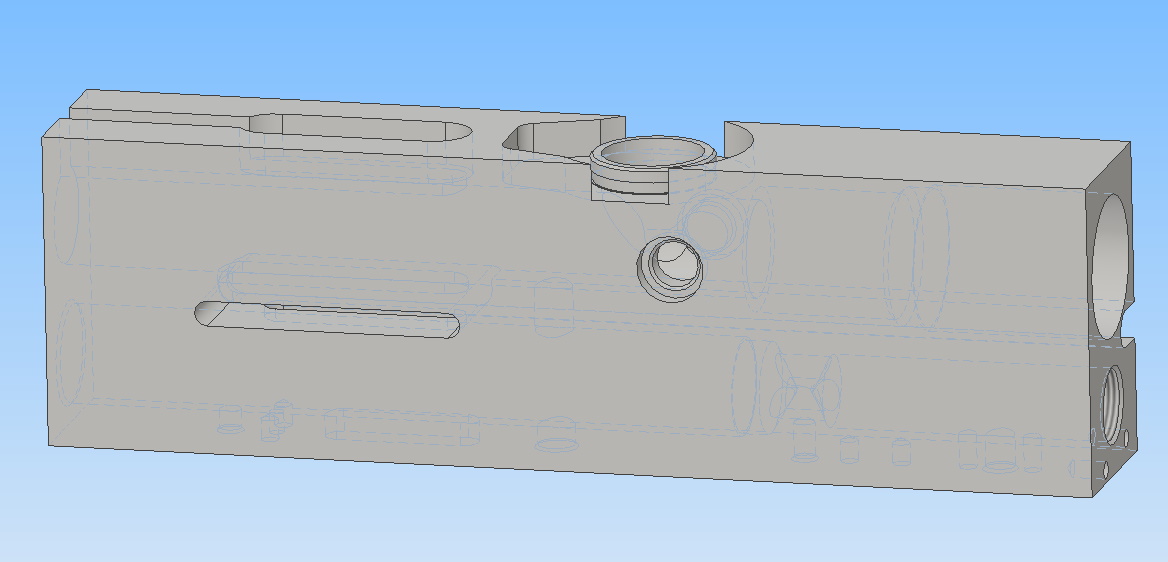

Description: 3d model for one of Nummech's unmilled body blanks. These bodies measure 1.250" wide which allows for additional material on the sides and top. All internal cuts are modeled, including an offset Empire-spec feedneck, 11/16" bores, tri-port air transfer to the valve chamber, and left-side pump slot only. The bodies have 1/8" diameter pinholes on the bottom which can be used for fixturing if needed.
Description: 3d model for one of Nummech's unmilled body blanks. These bodies measure 1.250" wide which allows for additional material on the sides and top. All internal cuts are modeled, including an offset Empire-spec feedneck, 11/16" bores, tri-port air transfer to the valve chamber, and left-side pump slot only. The bodies have 1/8" diameter pinholes on the bottom which can be used for fixturing if needed.
Part: Nummech 2k mid-block Autococker body - Tube body
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products
Description: 3d model of an "ultralite" milled Autococker body using a Nummech blank as the basis. This model can be used as a branching-off point to create new cosmetics and other features. It can also be used as a verification model to check whether your cosmetics will be too thin surrounding critical areas like the bores or holes.
This model is similar to an UL-milled Autococker but Nummech blanks have some design differences such as the offset feedneck, detents, and holes on the bottom of the body. Therefore this is not intended to be used with a typical Autococker body.
Description: 3d model of an "ultralite" milled Autococker body using a Nummech blank as the basis. This model can be used as a branching-off point to create new cosmetics and other features. It can also be used as a verification model to check whether your cosmetics will be too thin surrounding critical areas like the bores or holes.
This model is similar to an UL-milled Autococker but Nummech blanks have some design differences such as the offset feedneck, detents, and holes on the bottom of the body. Therefore this is not intended to be used with a typical Autococker body.
Part: Front block - unmilled blank
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products
Description: This item is identical to other front blocks, but the size of the o-ring groove is slightly smaller because this front block uses a 16/70 o-ring to seal, and it has 1/8" alignment pinholes drilled for use with a Nummech body. This front block also has internal air port between the banjo and LPR that isn't visible on the outside.
Description: This item is identical to other front blocks, but the size of the o-ring groove is slightly smaller because this front block uses a 16/70 o-ring to seal, and it has 1/8" alignment pinholes drilled for use with a Nummech body. This front block also has internal air port between the banjo and LPR that isn't visible on the outside.
Part: Back block - unmilled blank
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products
Description: 3d model of an unmilled back block used on a full-length Autococker. This part is identical to other full-length back blocks, with the minor addition of 1/8" pinholes that are used during the manufacturing process (the holes have no use once the part has been machined).
Description: 3d model of an unmilled back block used on a full-length Autococker. This part is identical to other full-length back blocks, with the minor addition of 1/8" pinholes that are used during the manufacturing process (the holes have no use once the part has been machined).
Part: Midblock sled
Formats:
ACIS SAT file (.sat)
ACIS SAT file (.sat)
Created by: Ydna via Nummech Products
Description: Nummech's delrin midblock sled. This is based off the basid design used by the injection molded sled from an Empire Sniper.
Description: Nummech's delrin midblock sled. This is based off the basid design used by the injection molded sled from an Empire Sniper.
