Overview:
Below you can see some views of the Mini-GS exterior. The overall size is very similar to the classic Mini markers, but the GS version has some changes made to the bolt assembly, foregrip and frame, feedneck, and bottomline regulator.

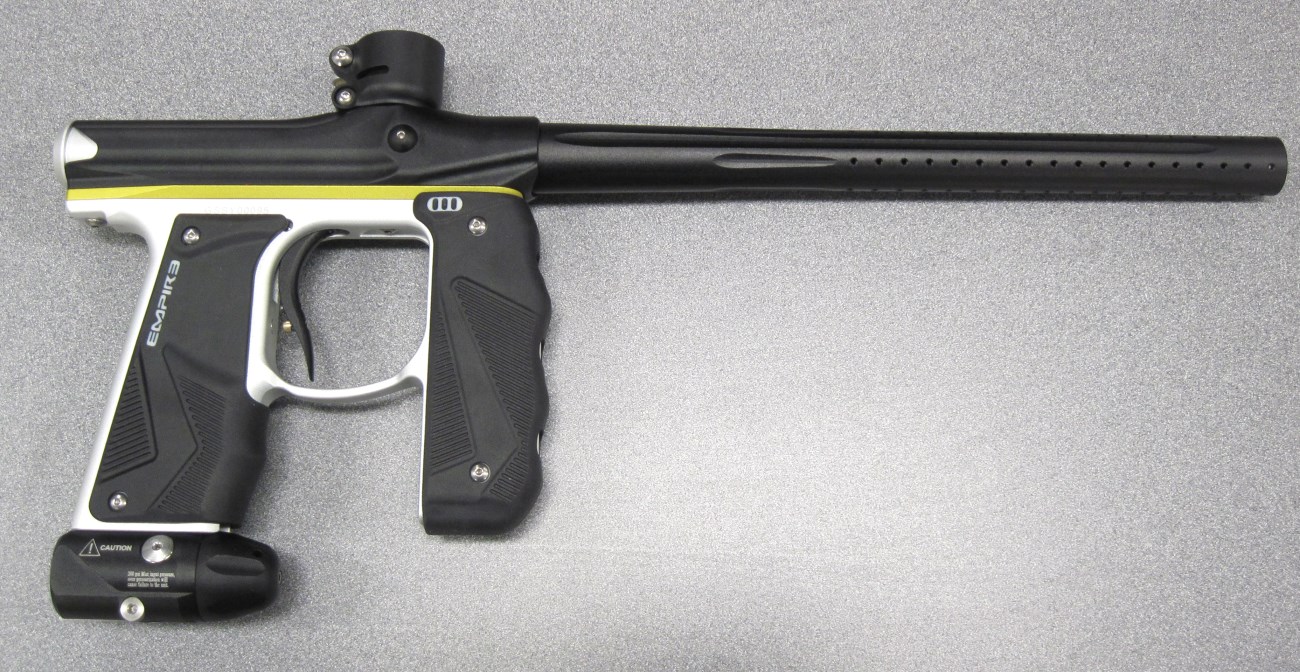

Mini-GS wide view (right side)
Mini-GS wide view (right side)
Mini-GS wide view (left side)
Mini-GS wide view (left side)

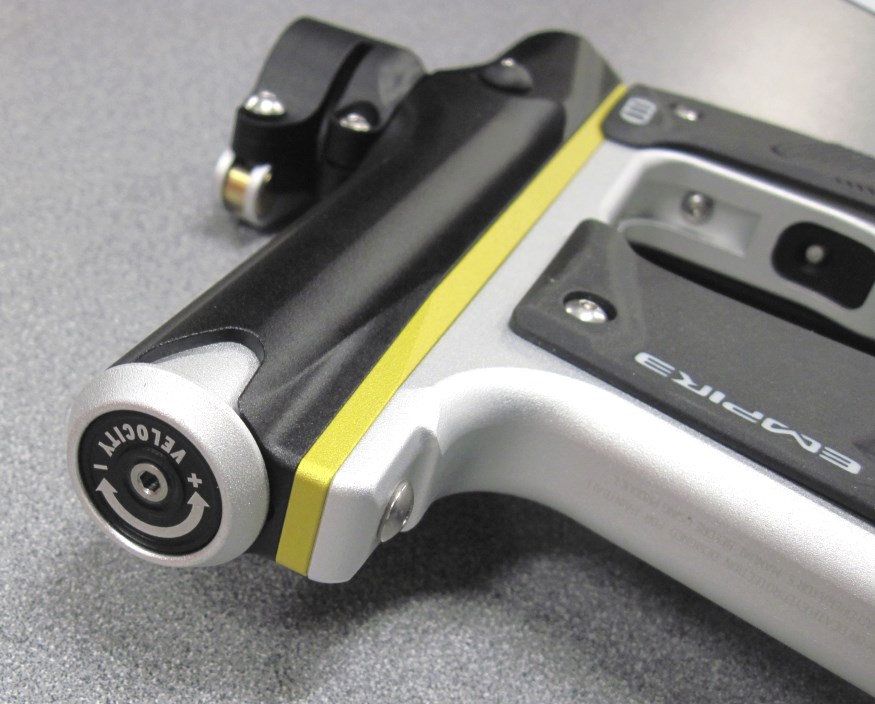

Bolt endcap; velocity adjustment; bolt quickstrip
Bolt endcap; velocity adjustment; bolt quickstrip
Trigger guard; LED and power button
Trigger guard; LED and power button

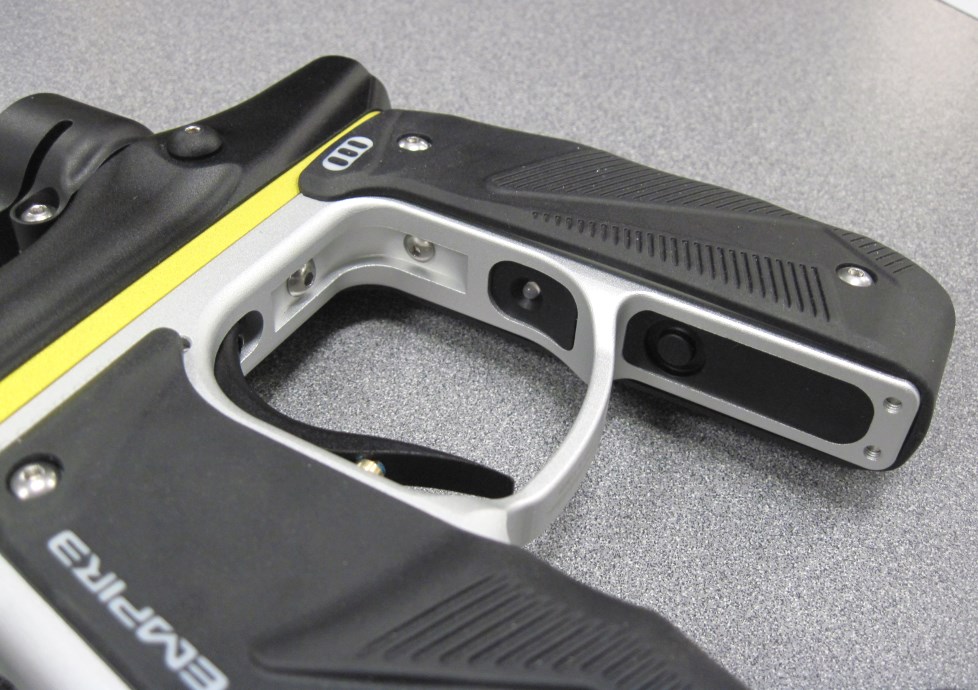

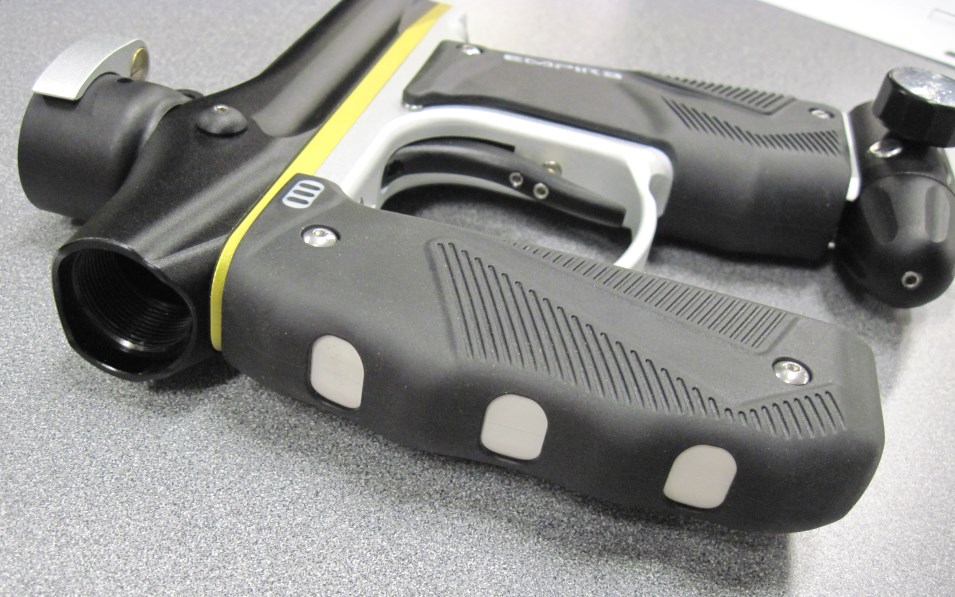

Foregrip frontside
Foregrip frontside
ASA regulator
ASA regulator

Field-Strip & Firing Assembly:
Mini-GS firing assemblies share some components with the previous Axe and classic Mini markers. Namely, compatible parts include the firing poppet and bolt (along with its spring). Non-compatible parts include the bolt guide and velocity adjustment endcap.

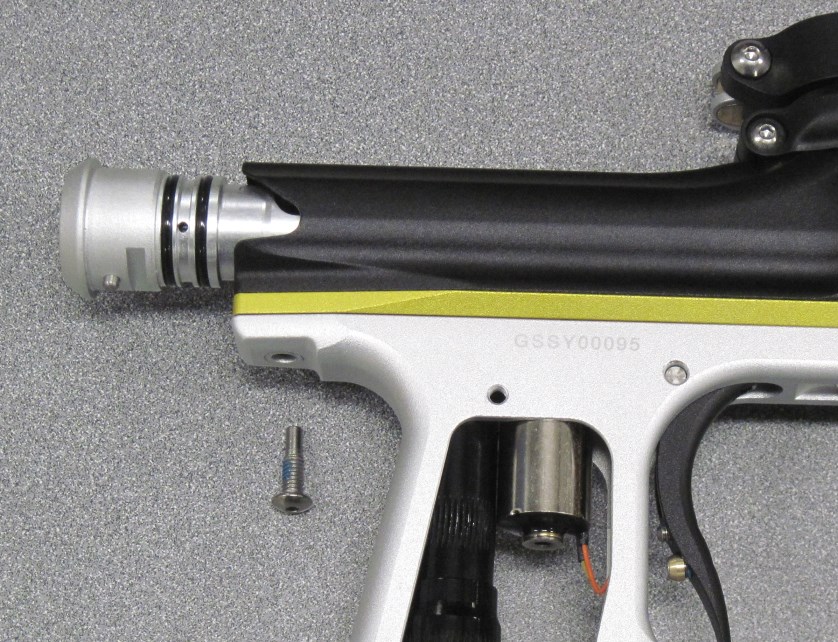

Firing assembly removal
Firing assembly removal

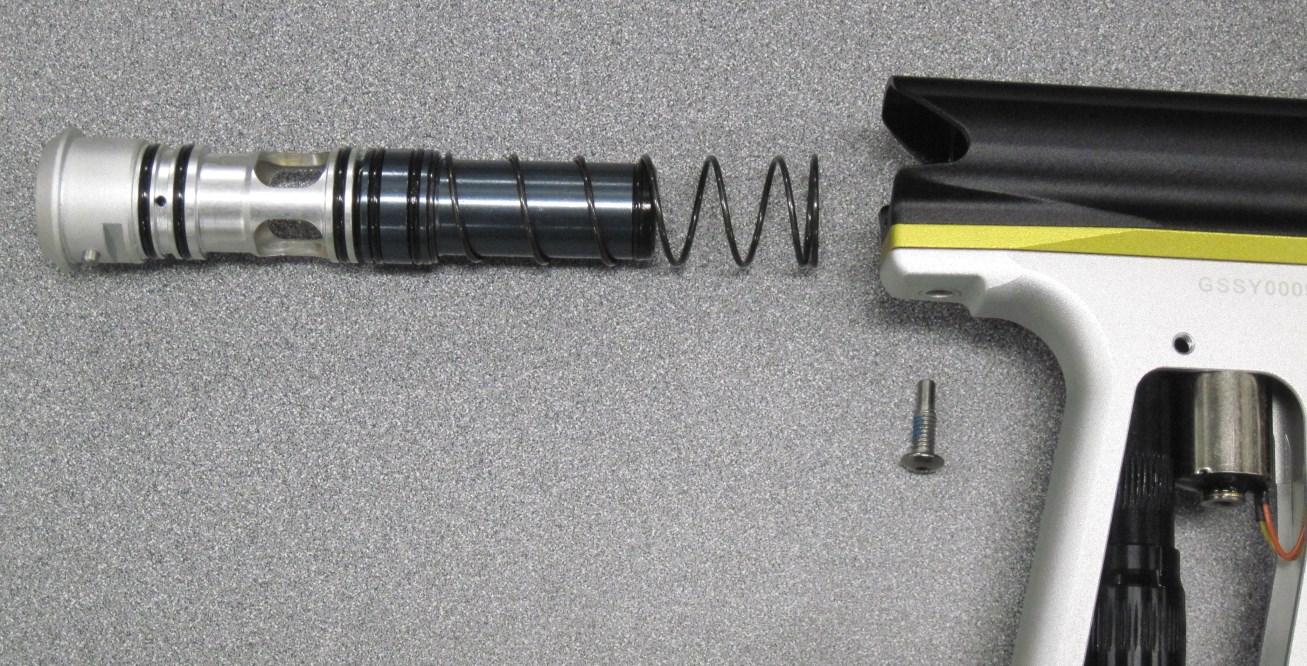

Firing assembly removed
Firing assembly removed

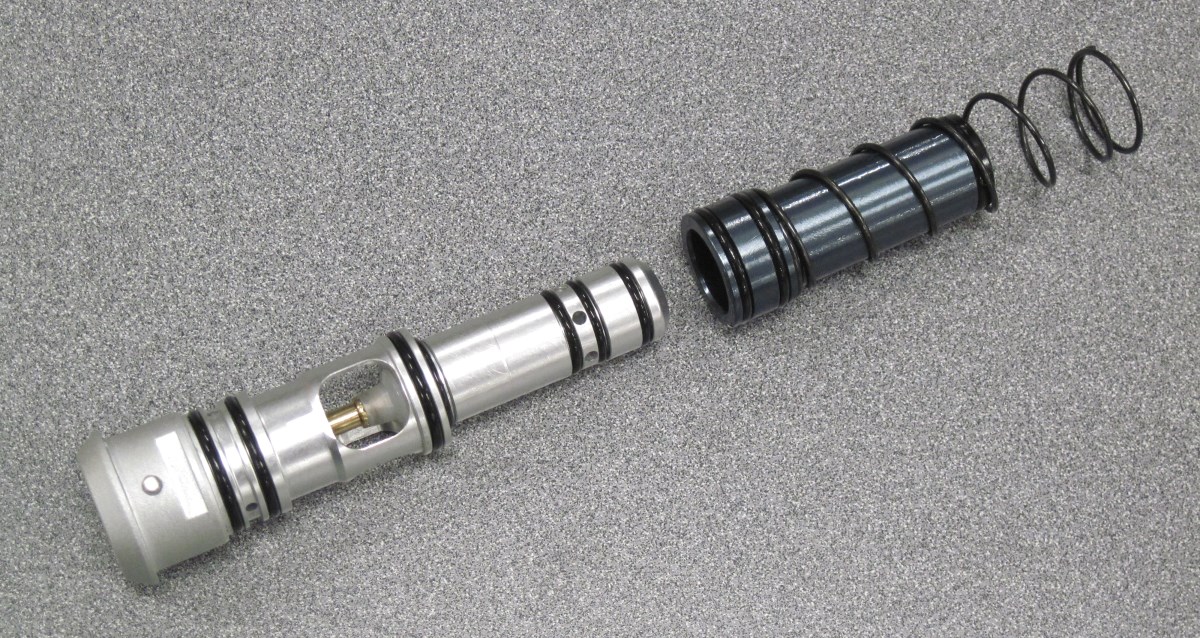

Firing assembly bolt and bolt guide
Firing assembly bolt and bolt guide
The assembly is removed in a similar way as with classic Minis; removing the rear frame screw allows you to pull the bolt endcap out the back of the marker body. The screw size and thread are different compared to classic Minis.

Frame Removal:
Further disassembly requires removing the frame from body. The foregrip is integrated into the body so the board can only be removed when the frame is free. The frame's internals are visible ocne you remove both the grip wraps and the foregrip wraps. They all use the same 6-32 threaded button head cap screws. The frame attaches to the body using three screws, one of which will release the firing assembly.

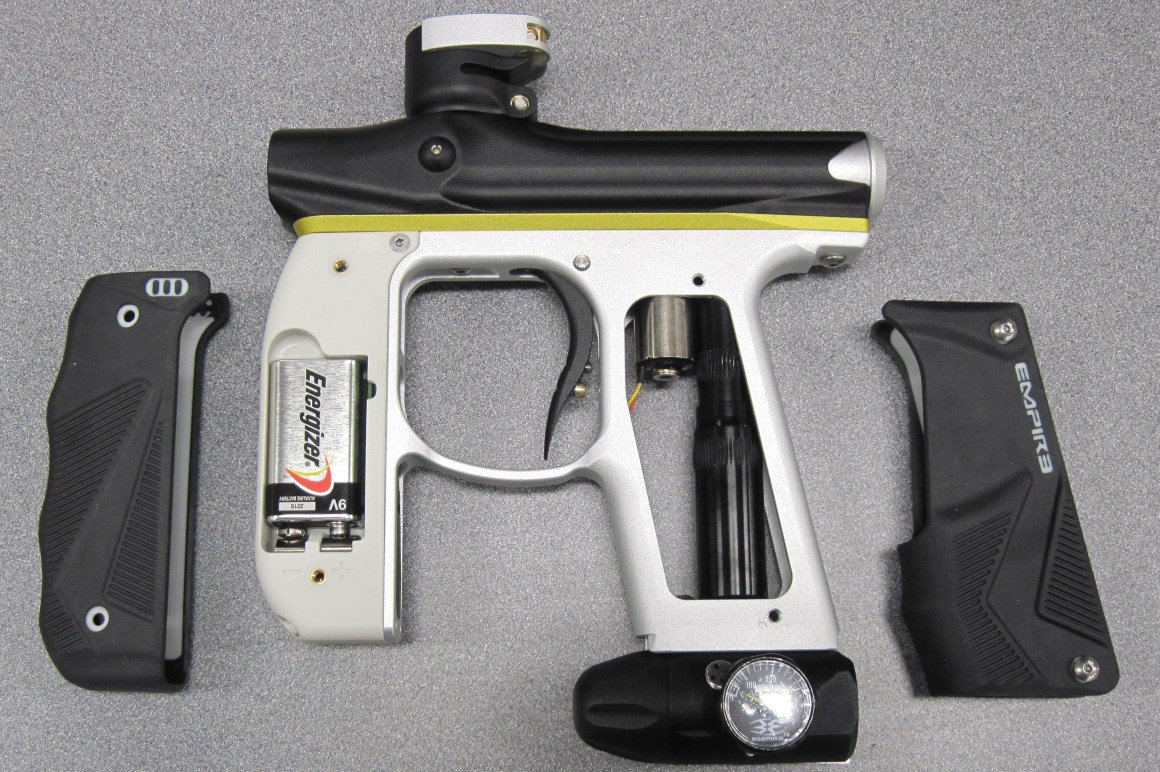

Grips removed
Grips removed

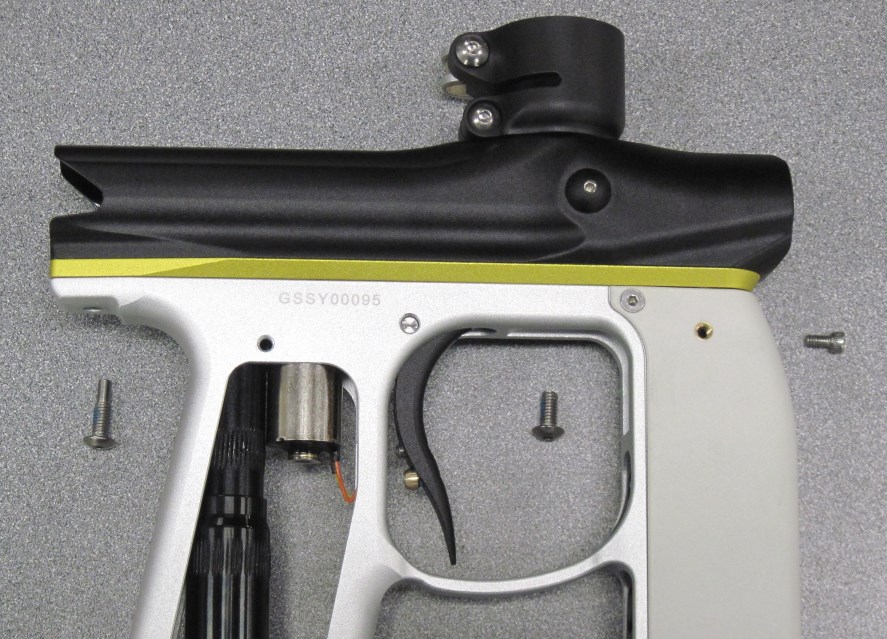

Frame screws removed
Frame screws removed

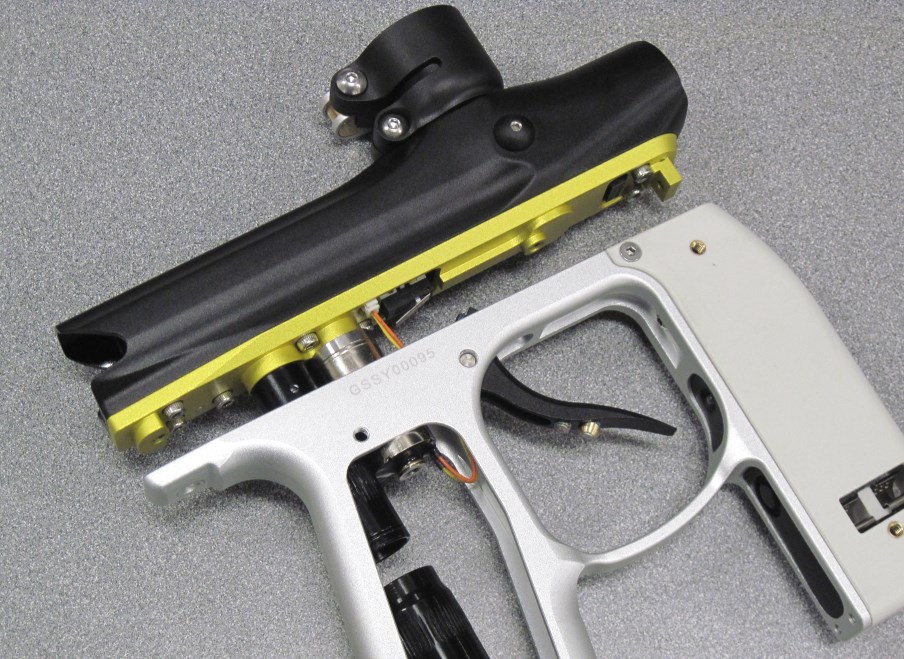

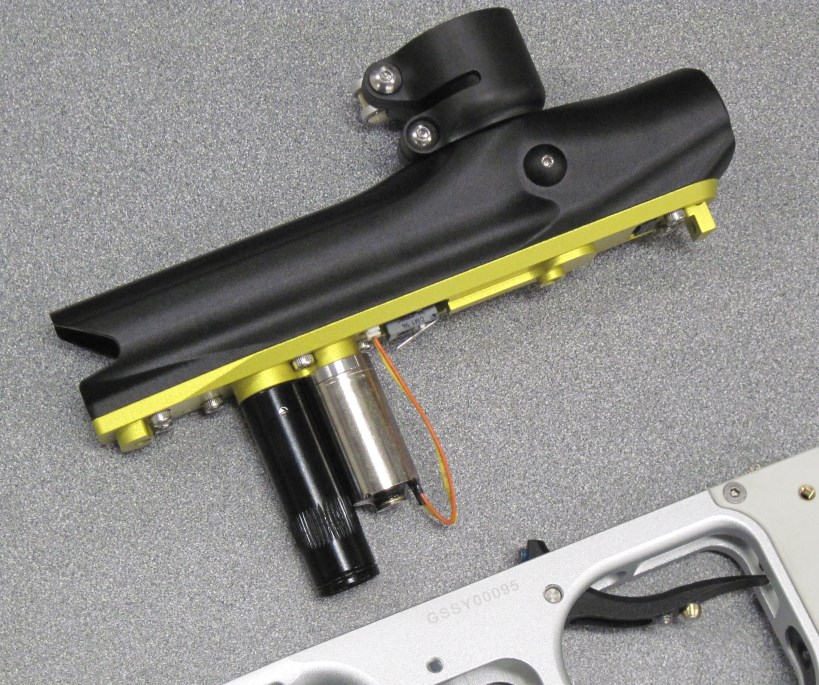

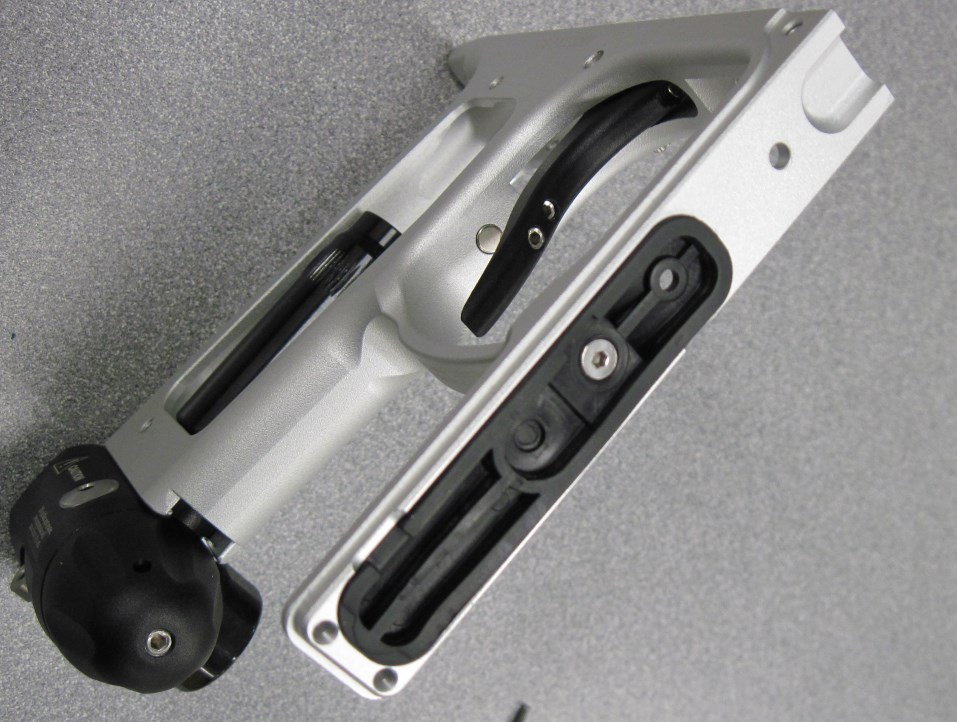

Frame separation from body
Frame separation from body
Frame separation from body
Frame separation from body

The plastic "foregrip frame" component can be removed while the frame is still attached to the marker, but the board cannot be removed and you can't access the button pad. These components can only be accessed when the frame is removed from the body.

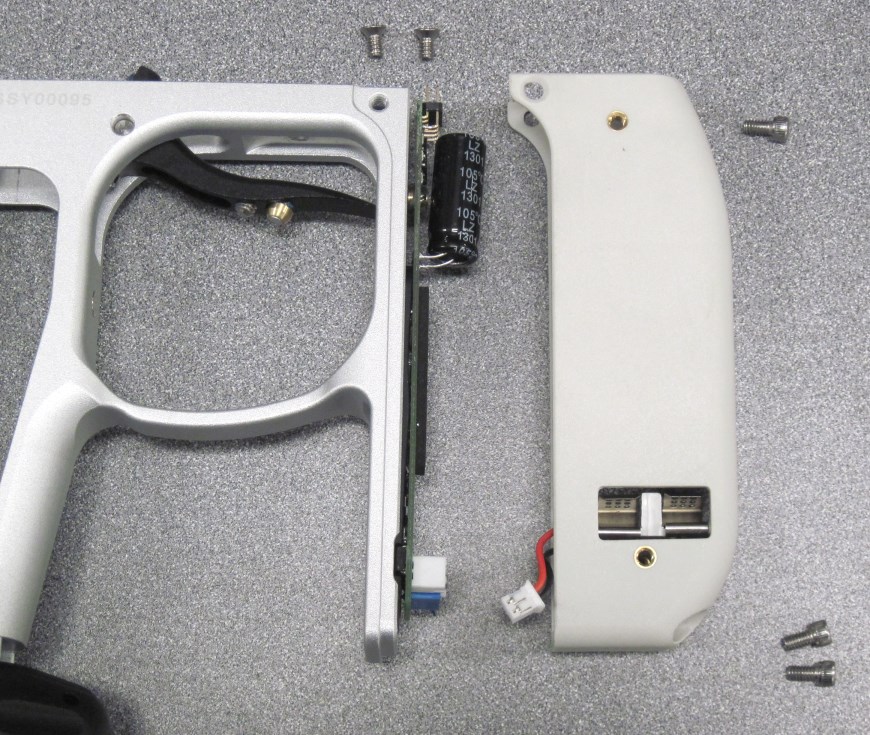

Foregrip frame removed
Foregrip frame removed

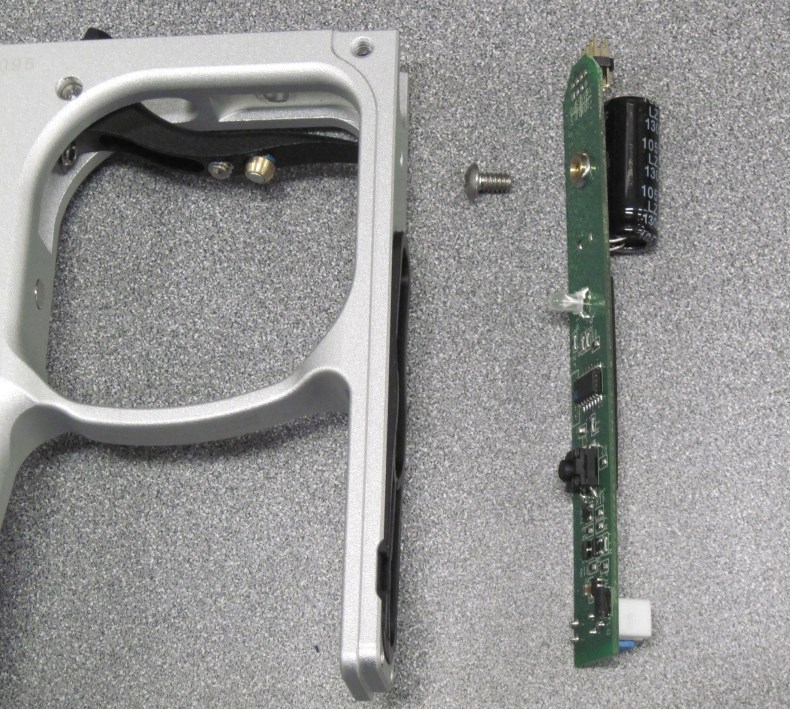

Mainboard removed
Mainboard removed

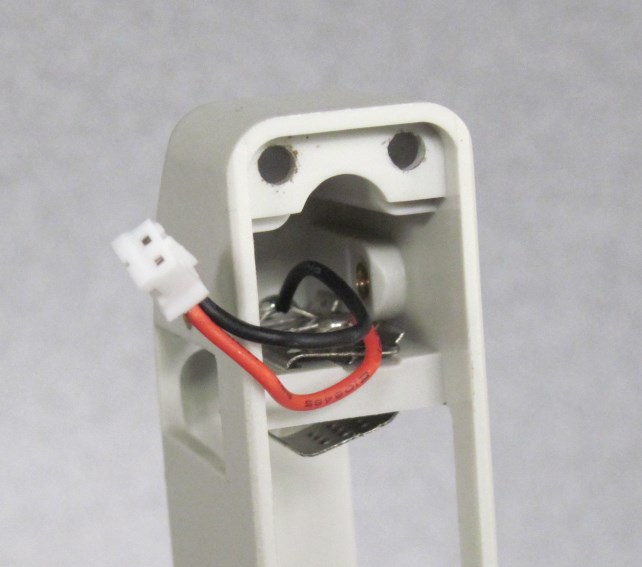

Battery snaps held within the foregrip frame
Battery snaps held within the foregrip frame
The plastic foregrip frame holds the small 9v battery snaps in position. This makes installing and removing the battery easy to do, though you must take care to avoid damaging the solder connections.

The button pad is held in place using a single screw, facing inward toward the trigger guard. This plastic button pad might accumulate debris over time.

Foregrip button pad
Foregrip button pad
Foregrip button pad removed
Foregrip button pad removed
Foregrip button pad removed
Foregrip button pad removed

Trigger is slid out by removing the pivot pin. One side oft he pin is knurled and digs into the surrounding hole; the pin should be pushed out from the non-knurled end. The trigger itself is the same as those used by Axes, however the Mini-GS stock trigger doesn't use a bearing (instead uses a pair os plastic bushings).

Trigger removed
Trigger removed

Regulator:
ASA regulator removal can be accomplished by unscrewing the bottom air transfer tube and unscrewing the two screws hidden within the inside of the frame. These can be tricky to remove unless you have ball-rounded allen keys, but in truth everyone reading this should own them (yes you!)

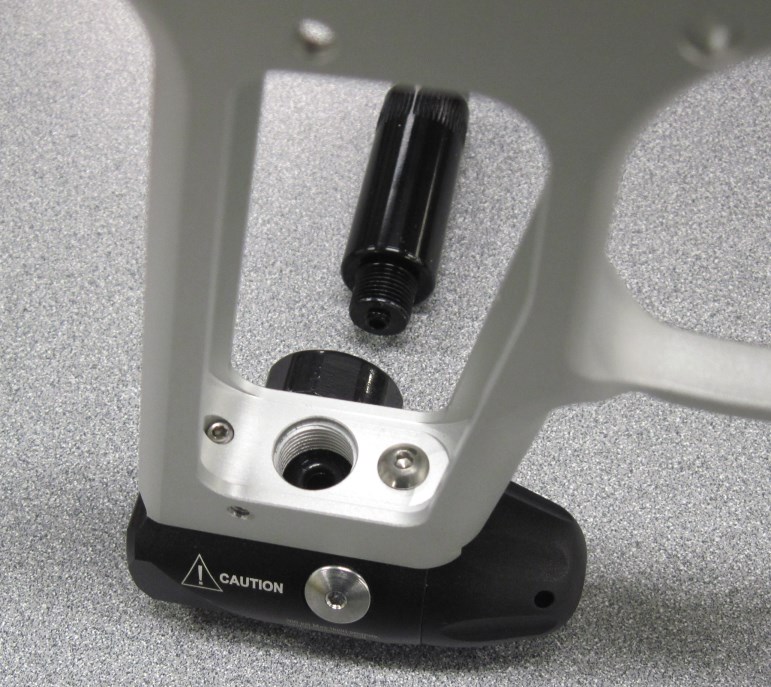

Bottom air tube removal; view of the regulator o-ring
Bottom air tube removal; view of the regulator o-ring

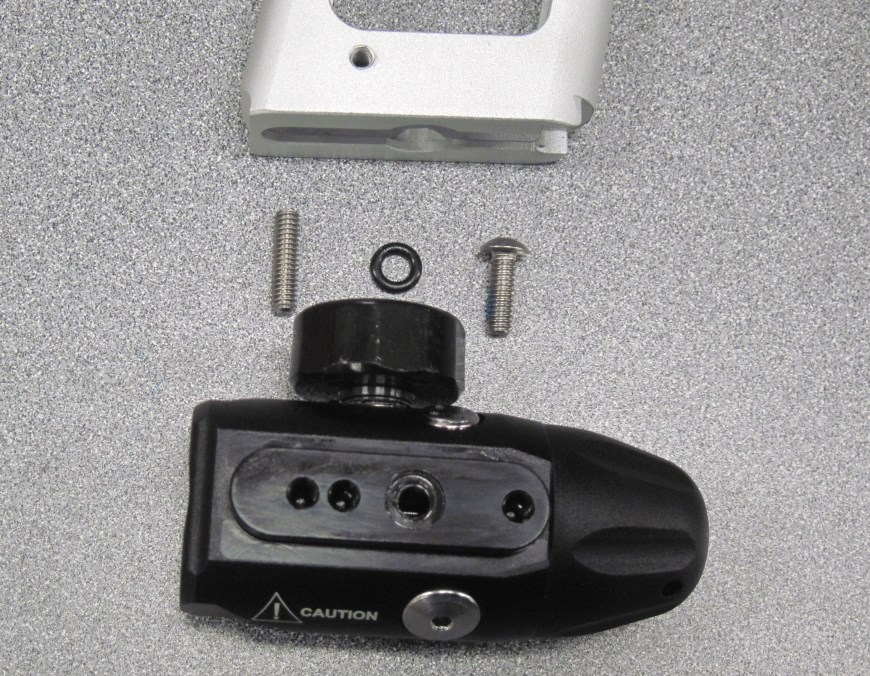

Regulator mounting T-slot
Regulator mounting T-slot
View of the top of the regulator ASA.

Body Disassembly:
As with Axes and classic Minis, the solenoid and top air chamber are screwed into the underside of the body. The body underside is a separate component called the transfer plate, which bolts onto the body. The two components can be unscrewed by hand.

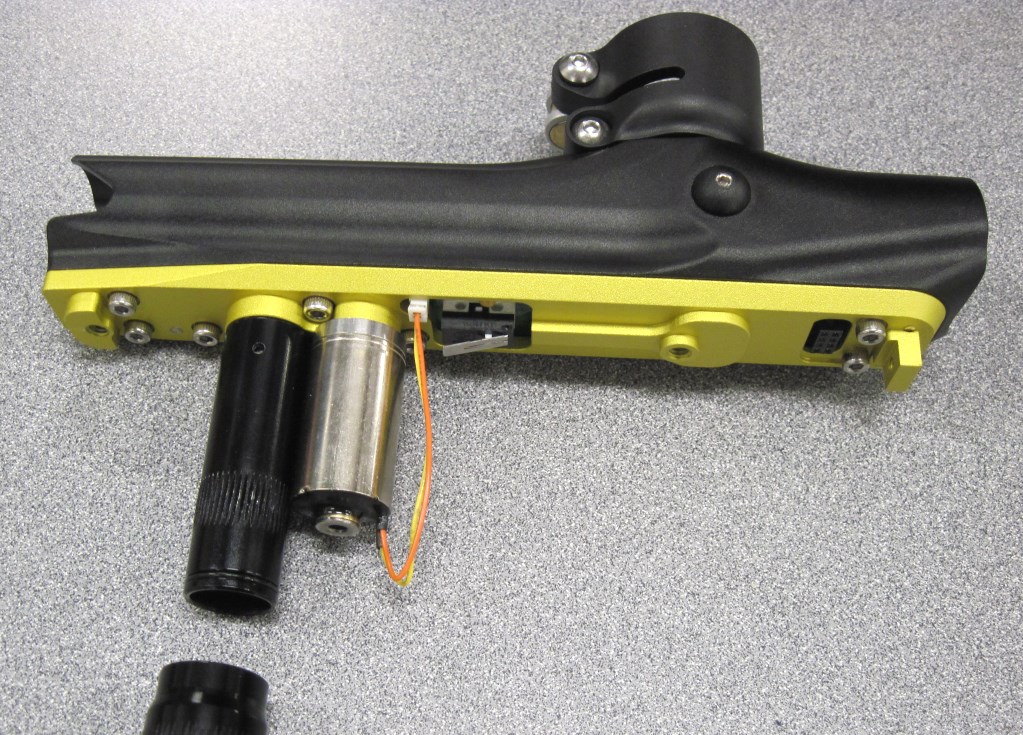

Body underside components (top air tube, solenoid)
Body underside components (top air tube, solenoid)

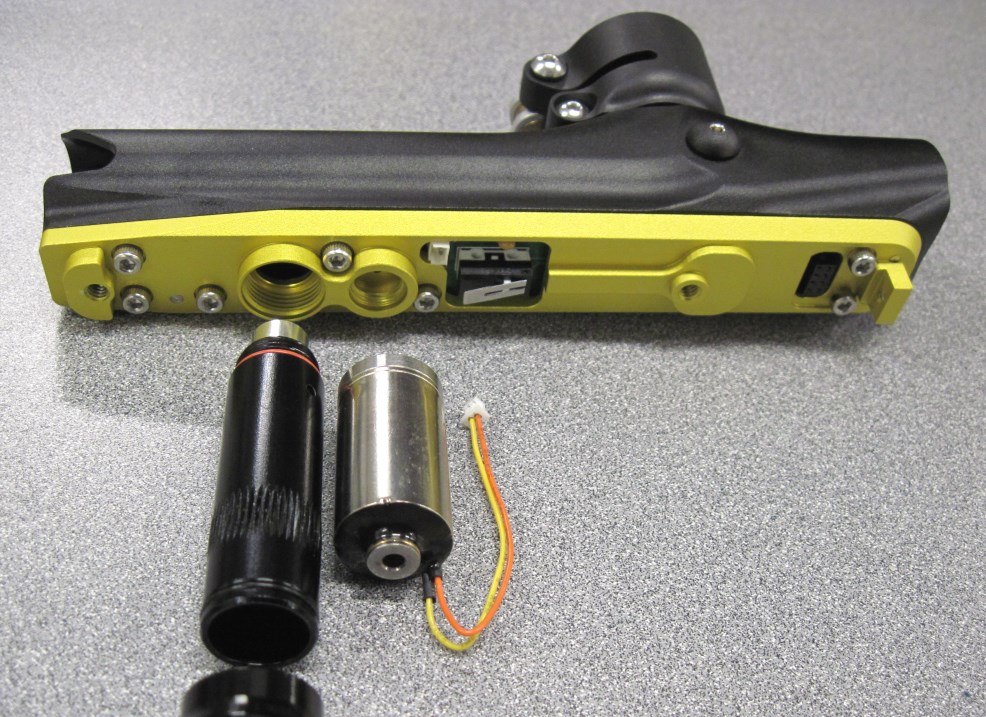

Body underside components removed (top air tube, solenoid)
Body underside components removed (top air tube, solenoid)

The transfer plate can be separated from the body by unscrewing the seven(7) cap screws holding them together. The transfer plate sandwiches a complex gasket between it and the body; the sensor board is also captured between the two.

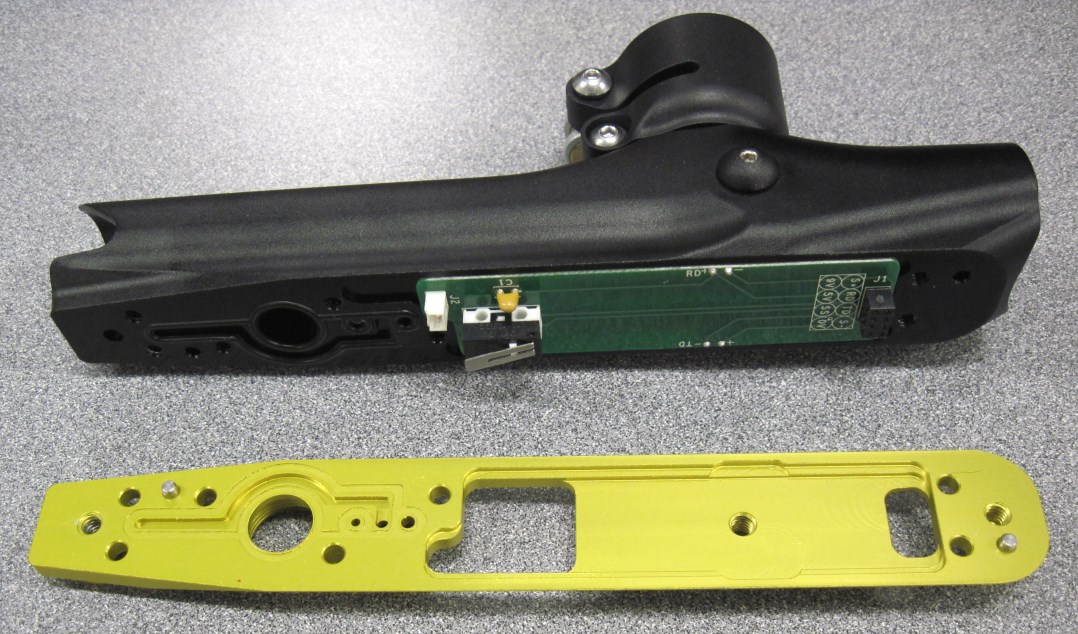

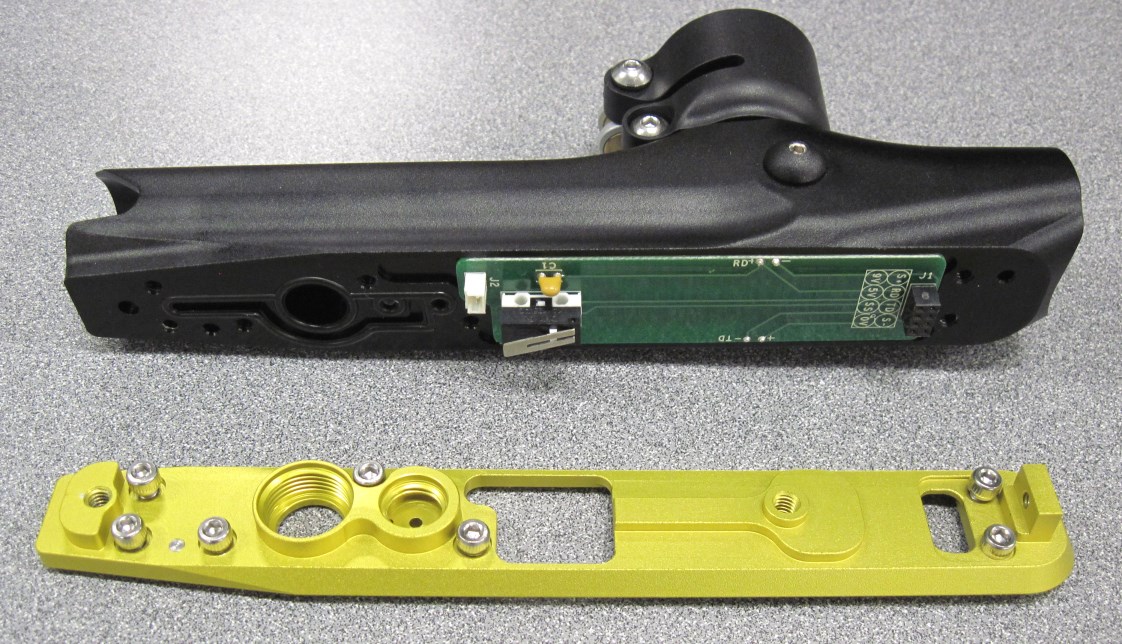

Transfer plate separated from body
Transfer plate separated from body
Transfer plate separated from body
Transfer plate separated from body

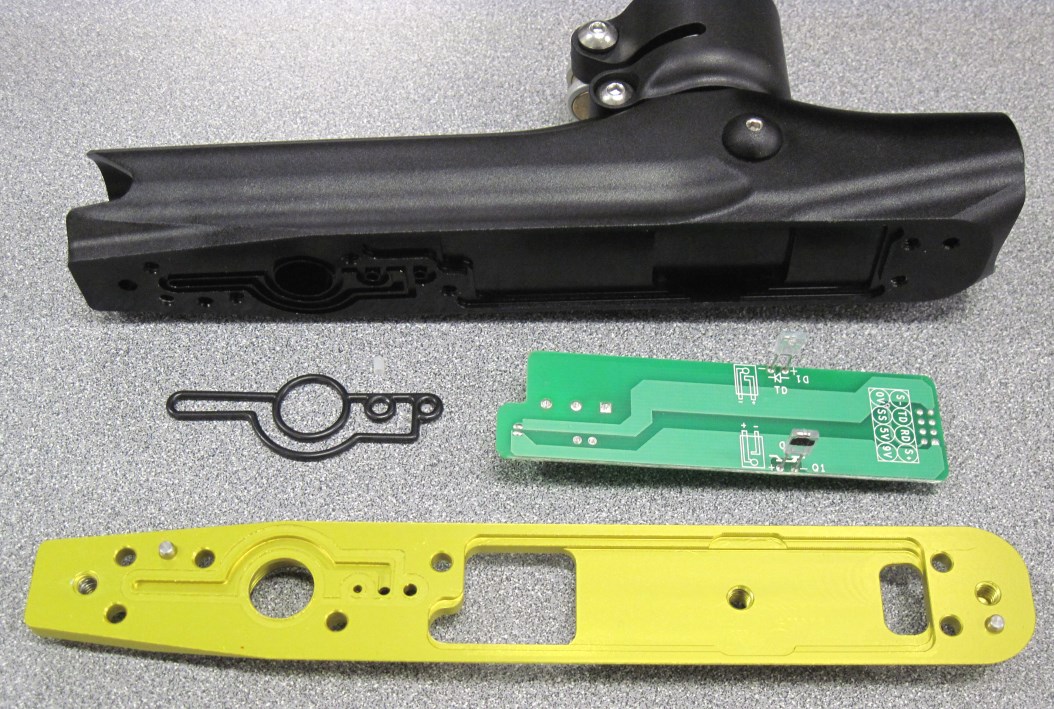

Gasket, flow restrictor, and sensor board removed from body
Gasket, flow restrictor, and sensor board removed from body

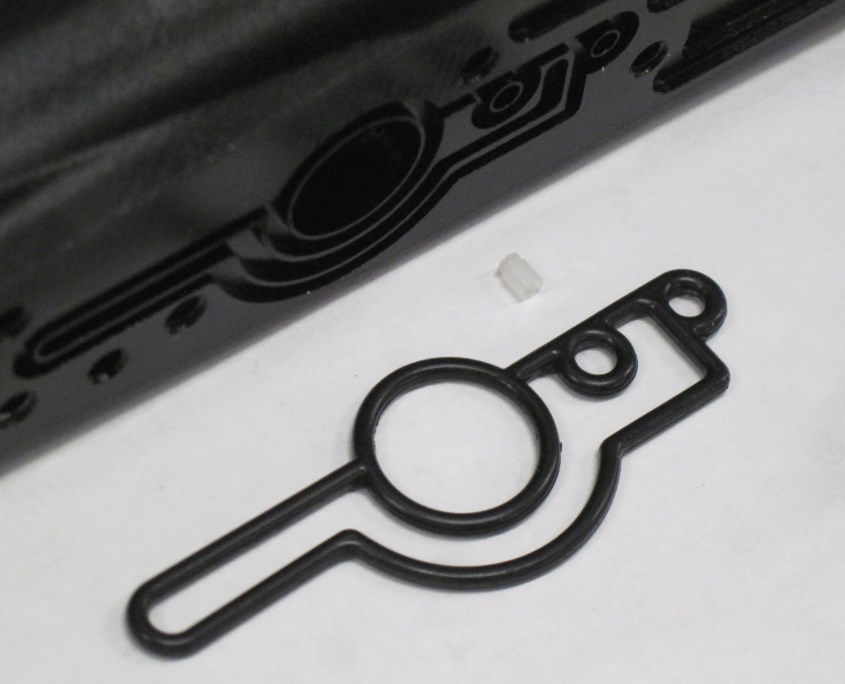

Flow restrictor and gasket
Flow restrictor and gasket

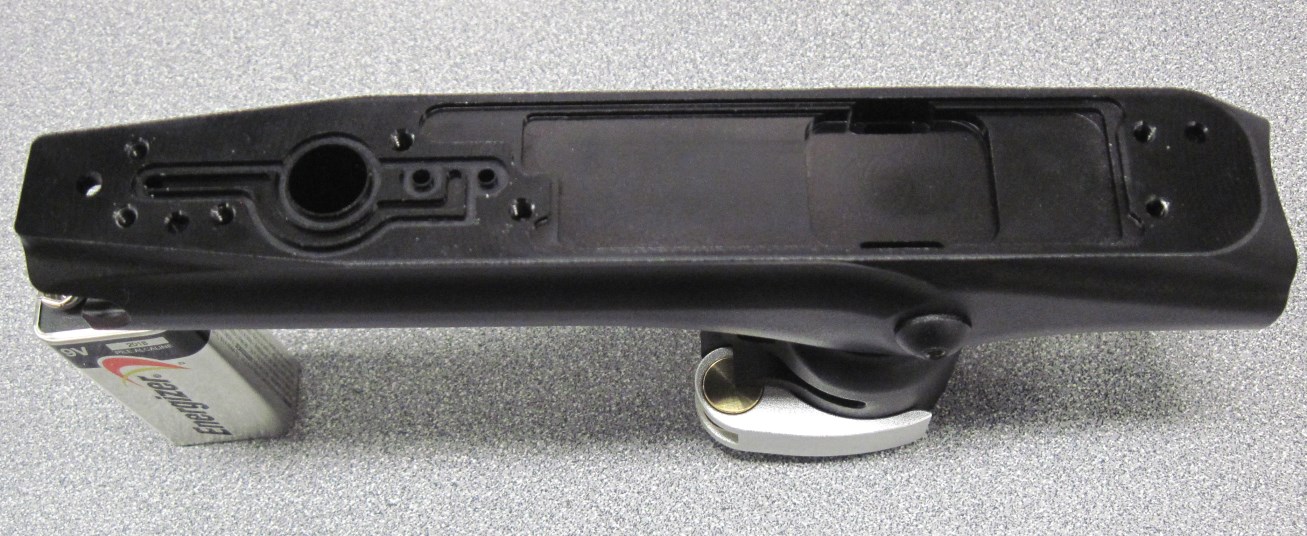

Body underside
Body underside

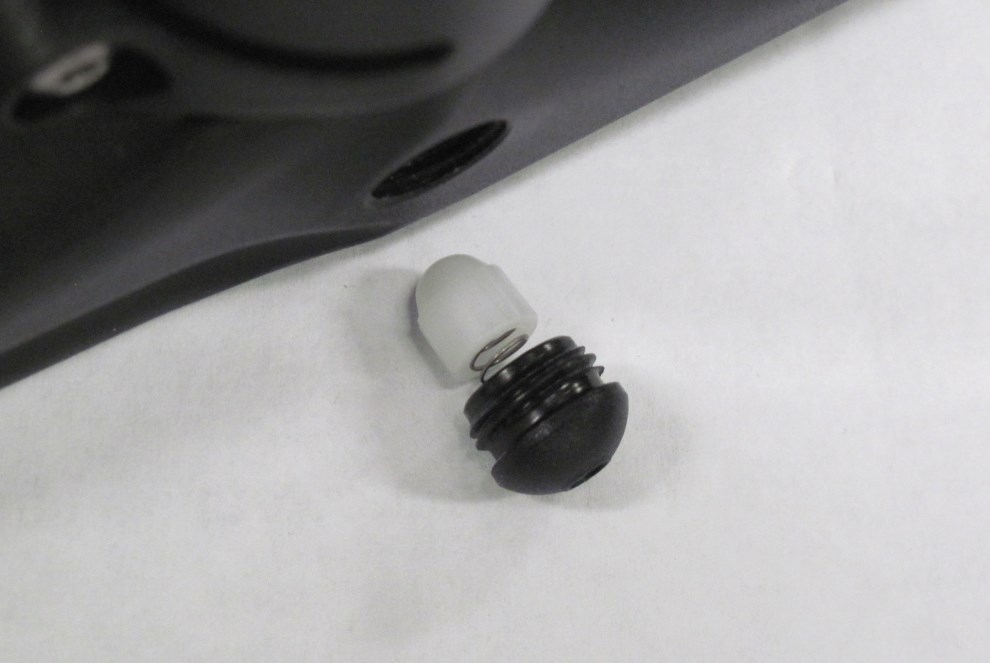

Detent removed from body
Detent removed from body
Detents can be unscrewed using an allen key. These appear to be the same as the detents used in classic Minis.

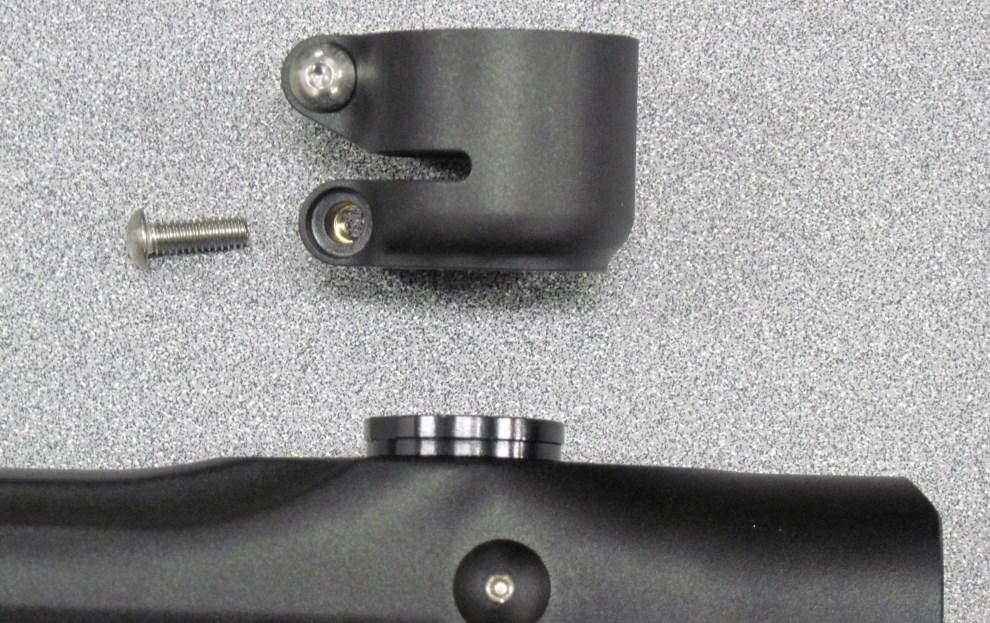

Feedneck removed from body
Feedneck removed from body
The feedneck is a combination of a threaded boss which is semi-permanently attached to the body. The reason I call it "semi-permanently" is because there probably isn't a way to remove the boss without destroying it. I don't know the feedneck threads but I assume they're the same as clssic Minis, which are the same as Impulse, Shocker SFT, Nerve, Bushmaster, Piranha, Omen, and some others.

Air tube plunger c-clip
Air tube plunger c-clip
One remaining part is the top air chamber plunger system. This item involves a spring-loaded air piston that moves upward into the firing assembly when the marker is pressurized, to prevent the bolt from being removed while the marker is pressurized.

Circuit boards:
At the time of this writing the stock board in Empire Minis, Empire Axes, and Empire Mini-GSs is the Shockwave board. This is different from the previous classic Minis which used the Optimas boards. However, the boards are all physically compatible despite the programming and hardware changes. It's safe to assume you can use other LED-based Mini/Axe upgrade baords inluding those from Virtue, APE, Seventh Element, or Tadao.

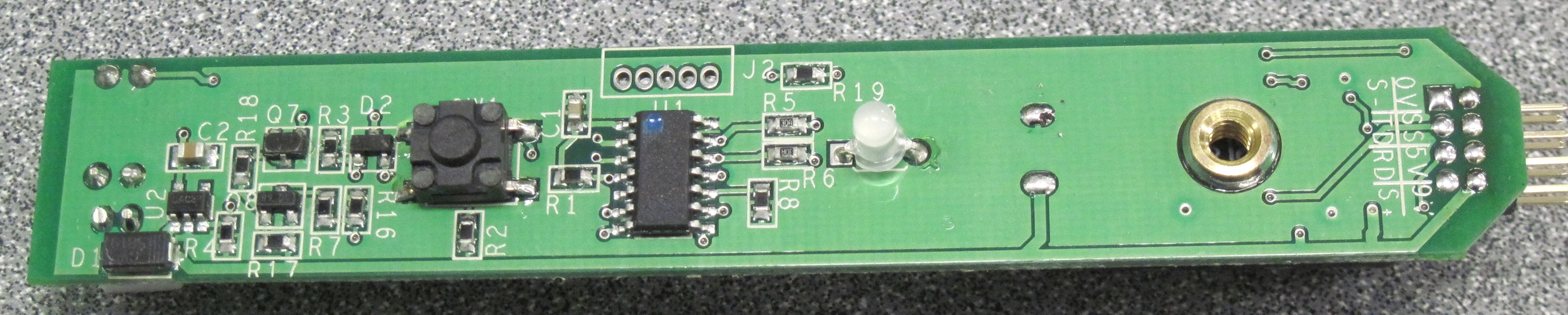

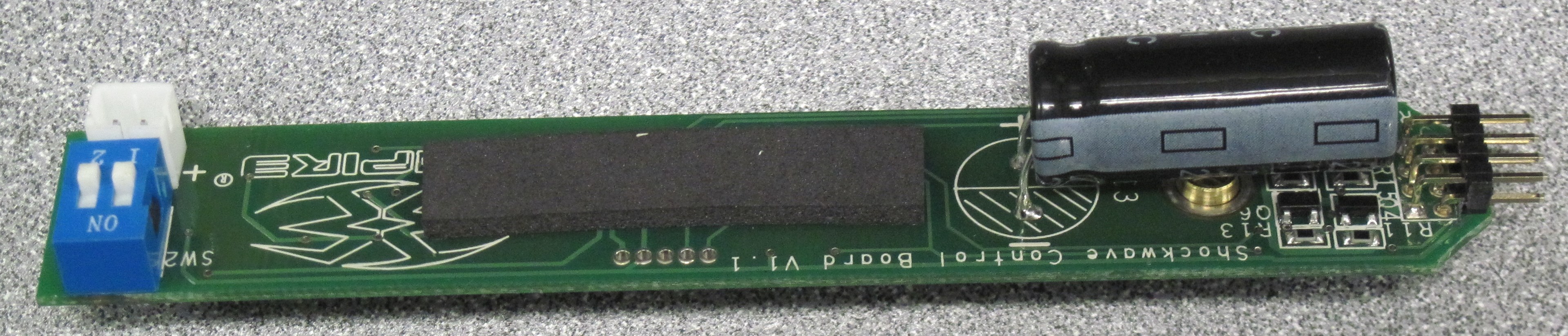

Shockwave mainboard (backside)
Shockwave mainboard (backside)
Shockwave mainboard (frontside)
Shockwave mainboard (frontside)
Shockwave mainboard.

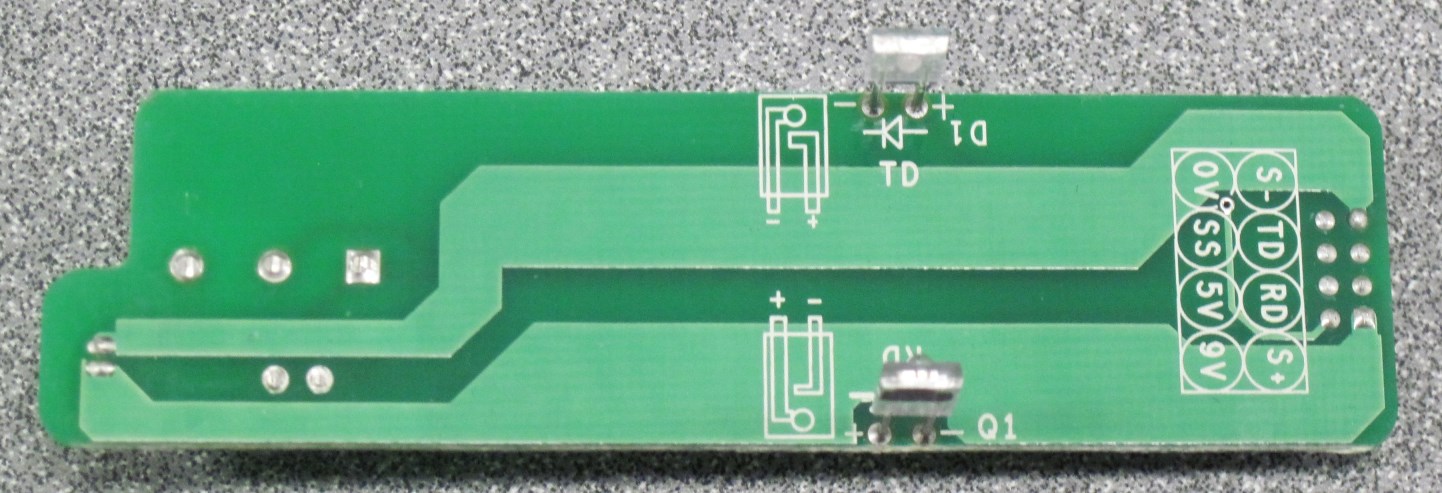

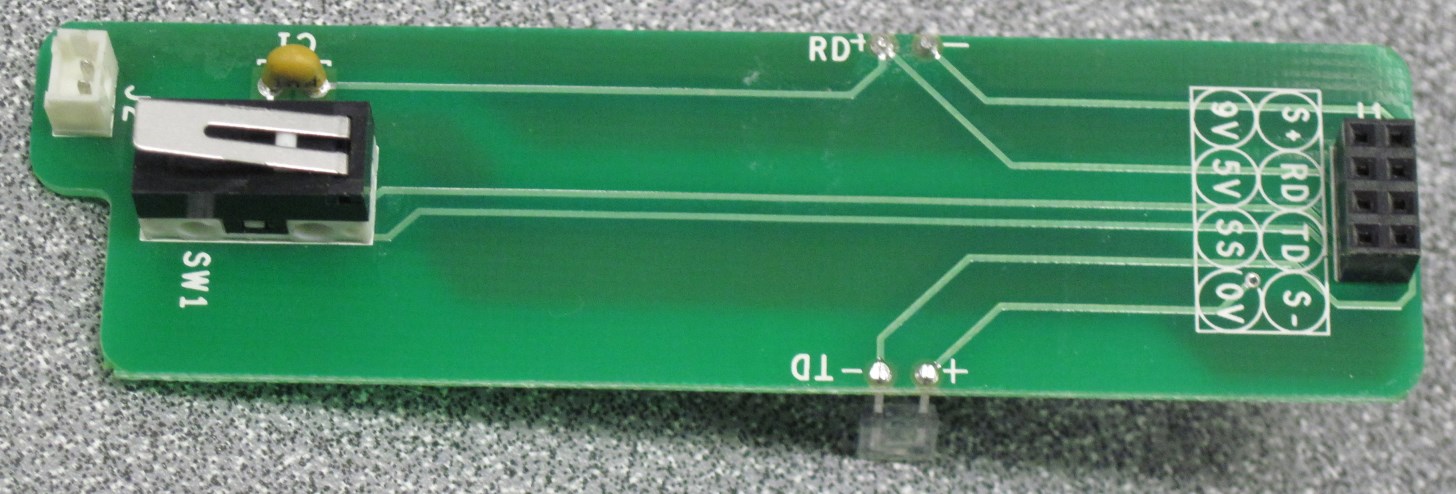

Mini-GS sensor board (top)
Mini-GS sensor board (top)
Mini-GS sensor board (bottom)
Mini-GS sensor board (bottom)
Mini-GS sensor board.
