This is the operations and programming manual for the drop-in version of the Predator boards made for the Shocker and the Nerve. If you have the custom-installed version in your marker, the registers and settings will be different (check the Manuals & Documentation page for a more complete list).
Note: This is only a guide for HOW to adjust the board. Information regarding WHERE to set adjustments at can be found on the Setting Electronics and Pressure mainpage.
Upgrading: Predator boards can be upgraded to the most current programming by sending them back into TAG.
Original manual: Predator original (no register 11); Predator original (with register 11)
Note: Only boards purchased within the first two-three weeks will be flashed with the first original programming.
Board Operation:
To turn on the marker, press and hold the power button for one second. The LED behind the button will light, and the LEDs on the surface of the board will also begin to pulse (if you have clear grips then you will be able to see them, if not then nevermind). At this point the marker is active, ready to fire, and the eyes are on. There is no forced shot; the board automatically knows the difference between a ball being loaded and a ball not being loaded.
As said, the eyes are enabled when the marker is first activated. You can toggle between eyes on and off by pressing the power button at any time. The eyes will then be disabled and the board will be capped at whatever you set the max ROF at in register 11 (if present). When no ball has loaded (or no ball is detected), you can force a shot by holding the trigger for 3/4 of a second. While the eyes are active, the maximum rate of fire will be set to whatever you have it at in register 2.
The board tracks the movement of the bolt from shot to shot and uses this informaiton to optimize the firing cycle and tell if there's an eye problem or not. Therefore, if you aren't actually cycling the bolt with paint and air while the eyes are active, the ROF will be put into fault mode and the max speed will be capped. The board will fire much faster when there is paint and air present.
Solid LED: Ball loaded, marker ready to fire
Slow-blinking LED: No ball loaded
Fast-blinking LED: Eyes off
DIP Switch Settings:

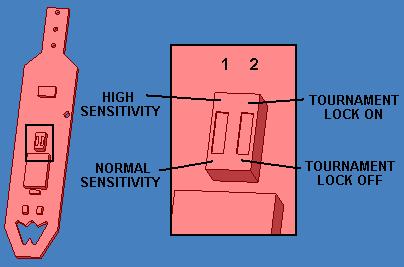

The DIP switchbank on the surface of the board controls the tournament lock and eye sensitivity...
DIP switch "1" is the eye sensitivity control for the board. Turning it on will lower the sensitivity range to detect more dark or rough-shelled paintballs. During normal operation you should leave DIP switch 1 off.
DIP switch "2" is the tournament lock toggle for the programming mode. Turning it on will disable all trigger programming. When the lock is on, the board will be set to the last settings and you won't be able to adjust them until it is turned off.
Programming:
All settings are stored electronically. To adjust the programming, the tournament lock DIP switch (switch 2) must be off
1. To enter the programming mode, turn the board on as normal (hold the power button for one section) while holding down the trigger. The LED will blink once then turn dim.
2. At this point you are expected to select a register. A register is simply one of the board's adjustment settings. To select a register, click the trigger the appropriate number of times corresponding to the register you want to adjust (listed below).
3. Once you have selected a register, the LED will blink a certain number of times to tell you what the current setting is set to.
Note: if you accidentially selected the wrong register, simply turn the board off then back on again to continue programming.
4. Once the LED stops blinking, click the trigger to input the new amount for that setting.
5. Once you have entered the new amount, wait one second and the board will store the new setting then blink the LED twice.
6. After the new setting has been stored, you return to the "main menu" where you can select another register to adjust. If adjusting register 1 (firing mode), after you select the new mode the marker will exit the programming mode and the gun will then be ready to fire.
You can turn the board off at any time by holding the power button.
| Register: | Function: | Settings: | Default: |
| Fire mode | 1 for semiautomatic | ||
| 2 for autoresponse | |||
| 3 for fully-automatic | |||
| mROF | Maximum ROF in balls-per-second; adjusted between 1-255 bps. | ||
| Debounce setting | Trigger debounce filter; adjusted between 1-255. | ||
| Dwell | Solenoid dwell in milliseconds; adjusted between 1-255 ms. | ||
| Fire holdoff | Bolt movement fire holdoff time; adjusted between 1-255 ms. | ||
| Eye holdoff | Eye holdoff time; adjusted between 1-255 ms. | ||
| AFA firing mode | 1 - semiautomatic (no AFA mode) | ||
| 2 - AFA1 (debounce drops slowly to ramp the ROF) | |||
| 3 - AFA2 (debounce quickly drops to ramp the ROF) | |||
| 4 - AFA3 (NXL fullayuto, capped using the mROF setting) | |||
| 5 - AFA4 (NXL fullyauto, capped at 15-bps) | |||
| 6 - AFA5 (breakout mode with AFA2) | |||
| 7 - AFA6 (breakout mode with AFA3) | |||
| ABS activation time | 1 - ABS disabled | ||
| 2 - ABS activates after 5 seconds | |||
| 3 - ABS activates after 10 seconds | |||
| 4 - ABS activates after 15 seconds | |||
| ABS dwell time | Added dwell time for the first shot if ABS is active; adjusted betwwen 1-255 ms. | ||
| AFA level | AFA activation speed in balls-per-second; adjusted between 1-12 bps. Setting 1 will disable AFA mode. |
||
| ROF, eyes disabled | Rate of fire in balls-per-second when the eyes are disabled; adjusted between 1-255 bps. | ||
| ROF increment | 1 - no ROF increment | ||
| 2 - mROF plus 0.2 seconds | |||
| 3 - mROF plus 0.4 seconds | |||
| 4 - mROF plus 0.6 seconds | |||
| 5 - mROF plus 0.8 seconds | |||
| Eye sense | 1 - stock reflective eyes | ||
| 2 - custom-install beam-break eyes |
Fire mode (register 1): Three firing modes available. If you wish to use an AFA mode, select semiauto (setting 1) along with the AFA mode of your choice in register 7.
Maximum ROF (register 2): Max ROF in balls-per-second.
Debounce setting (register 3): Please note that this isn't in full millisecond intervals; it's closer to 1/3-ms intervals.
Dwell (register 4): Amount of time that the solenoid will remain open, that the bolt will remain forward.
Fire holdoff time (register 5): This is the amount of time after the eye senses the bolt open that it will allow the marker to fire again, adjusted in milliseconds.
Eye holdoff time (register 6): Delay between the ball being detected and when the board will allow the marker to fire, adjusted in milliseconds.
AFA mode (register 7): These are the board's ramping modes. To use these modes, set firing mode (register 1) to semiauto.
ABS activation time (register 8): Amount of time after the last shot that the ABS will engage to add milliseconds to the dwell for the next first shot.
ABS dwell time (register 9): Amount of dwell time that will be added to the normal dwell setting for the first shot when register 8 is enabled.
AFA level (register 10): Activation speed in balls-per-second that you must reach to activate an AFA ramping mode. Setting this at "1" will disable the AFA mode.
Eyes off ROF (register 11): Max speed wheil the eyes are diabled. This is also how fast the board will fire if the eyes are in fault mode.
ROF increment (register 12): This register is used to fine-tune your ROF settings by including fractions of a second to the max speed. For example, if you set the mROF to 15-bps, register 12 to 0.4 seconds, it will make the mROF 14.4-bps.
Eye sense (register 13): For the stock eye, use "reflective". If you have beam-break eyes installed, this must be set to "beam-break". If you are unsure, leave it on reflective.
This is a video I made of an example of programming. In this video I increase the dwell by three milliseconds, then select semiauto.
