Nerve NXT Board ZDSPB.com > Tech index > Shocker NXT > Electronics adjustment > Nerve NXT Board Adjustment
The "Nerve NXT" board comes stock in all Shocker NXT markers. It is based on the previous version of the "Nerve" boards which were stock from November 2004 and later. All Nerve boards programmed in August 2006 and later will fall under the "NXT" category.

Note: This is only a guide for HOW to adjust the board. Information regarding WHAT to set adjustments at can be found on the Setting Electronics and Pressure mainpage.

Upgrading: This is the current version of the stock board. No upgrades are necessary.

Board Operation:
To activate the board, push and hold the power button for a small period of time. When the board activates you will hear it chirp and the blue board indicator LED will light up. The board is activated in Vision mode, ready to fire. You can toggle between eyes on and off at any time, by pressing the power button once (it will chirp and the LED pattern will change). To deactivate the board, hold the power button in until the board chirps once more and the LED no longer blinks (this will occur after two seconds).

The LED in non-Vision mode blinks twice fast every one second (the interval between blinks is 1/4 of a second). The LED in beam-break Vision mode will stay solid continuously, and dim when you fire. The LED in reflective Vision mode will blink four times each second when a ball is loaded; if no ball is loaded then the LED will blink once every second. As said, to toggle eyes on and off, press the power button once. Information about reflective and beam-break eye modes is given below.

Programming:
The only adjustable settings on the Nerve NXT board are dwell, recharge, firing mode, and eye sense. To adjust any of these, you must first remove the left side of the grip panels so that you can have access to the lower, vertical circuit board. You will see two grey buttons located on the side of the board; these are referred to as the dwell buttons and are used to adjust all three settings. The top button will increase the setting wheras the bottom one will decrease it, denoted by the text UP and DN printed on the back of the circuitry.

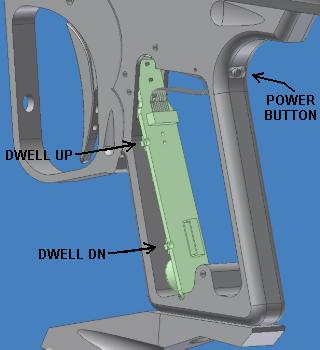

Dwell buttons

Dwell:
To adjust the dwell setting, simply push either the dwell UP or DN button to decrease or increase the setting respectively. Don't hold the trigger down while doing this or the dwell won't be adjusted.
Never set your dwell below 12 chirps, as the solenoid is not designed to cycle at this speed.

Tech On Nerve NXT boards, dwell is adjustable between 3 and 19 milliseconds, in 0.25 millisecond increments (64 settings total). This means your dwell increases one millisecond for every four chirps, with the minimum setting being 3-ms. Information for "where to set dwell to" is often given in chirps and NOT milliseconds. For purposes of upgrading the board to another one (which uses milliseconds to adjust), you may need to know how many milliseconds the dwell setting was for the Nerve board.

How long is my dwell time, in milliseconds, if I have it set to chirps?

Recharge Rate: (aka. ROF delay)
Recharge rate is the term we use to describe the length of time that has to expire after the gun is fired before it can fire again. Because of this definition, increases in recharge rate will allow more time between shots, thus decreasing your maximum rate of fire (and vice-versa). Recharge is only used to determine the max ROF for the marker; it has nothing to do with consistency, efficiency, recoil, or any other factor. All it will do is slow down or speed up your maximum cycling speed. It has no influence on how the marker fires. You're only adjusting the ROF, so the gun will fire the exact same regardless of where it's set (basically). People seem to have a very difficult time understanding this, so I'm hoping that me stating it five times just now will help. For demonstration, a diagram of the firing cycle with adjustments can be seen here...
Firing cycle diagram
This diagram shows that after increasing your dwell setting, the recharge time will stay the same, thus the ROF will be a little lower since the firing cycle takes longer. To compensate you need to then lower the recharge. This is an example and uses example numbers.

To adjust your marker's recharge rate, hold the trigger down while pushing the dwell DN or UP buttons to decrease or increase the recharge time respectively.
Recharge is adjustable between 15 and 70 milliseconds in one-millisecond increments (55 settings total). This is different from the previous versions of the stock board (non-Nerve), where recharge began at 30 milliseconds.

If you wish your marker to fire the maximum speed, simply set the recharge setting to 0 chirps. If you wish to cap the marker's rate of fire at a lower speed, you can use this chart below to find your recharge setting. To use this chart, match up your current dwell setting (left column) with your desired BPS cap (top row) and the corresponding number in the table will be your recharge setting in chirps.
The chart starts at 11.5-bps because that's the minimum speed for most dwell amounts. The chart only goes up to 17-bps because there isn't much point to "capping" the gun at anything faster than 17-bps, since that's already extremely fast and you won't be able to audibly tell the difference between exact speeds at that point.

11½-bps
12-bps
12½-bps
13-bps
13½-bps
14-bps
14½-bps
15-bps
15½-bps
16-bps
16½-bps
17-bps
Dwell 20 chirps
-
-
-
54
51
48
46
44
42
40
38
36
Dwell 21 chirps
-
-
-
53
51
48
45
43
41
39
37
36
Dwell 22 chirps
-
-
-
53
51
48
45
43
41
39
37
35
Dwell 23 chirps
-
-
-
53
50
48
45
43
41
39
37
35
Dwell 24 chirps
-
-
-
53
50
47
45
43
41
39
37
35
Dwell 25 chirps
-
-
-
53
50
47
45
42
40
38
36
35
Dwell 26 chirps
-
-
-
52
50
47
44
42
40
38
36
34
Dwell 27 chirps
-
-
55
52
49
47
44
42
40
38
36
34
Dwell 28 chirps
-
-
55
52
49
46
44
42
40
38
36
34
Dwell 29 chirps
-
-
55
52
49
46
44
41
39
37
35
33
Dwell 30 chirps
-
-
55
51
49
46
43
41
39
37
35
33
Dwell 31 chirps
-
-
54
51
48
46
43
41
39
37
35
33
Dwell 32 chirps
-
-
54
51
48
46
43
41
39
37
35
33
Dwell 33 chirps
-
-
54
51
48
45
43
41
39
37
35
33
Dwell 34 chirps
-
-
54
50
48
45
42
40
38
36
34
32
Dwell 35 chirps
-
-
53
50
48
45
42
40
38
36
34
32
Dwell 36 chirps
-
-
53
50
47
44
42
40
38
36
34
32
Dwell 37 chirps
-
-
53
50
47
44
42
39
37
35
33
32
Dwell 38 chirps
-
-
53
49
47
44
41
39
37
35
33
31
Dwell 39 chirps
-
-
53
49
46
44
41
39
37
35
33
31
Dwell 40 chirps
-
55
52
49
46
43
41
39
37
35
33
31
Dwell 41 chirps
-
55
52
49
46
43
41
39
36
34
32
31
Dwell 42 chirps
-
55
52
48
46
43
40
38
36
34
32
30
Dwell 43 chirps
-
55
51
48
45
43
40
38
36
34
32
30
Dwell 44 chirps
-
54
51
48
45
42
40
38
35
34
32
30
Dwell 45 chirps
-
54
51
48
45
42
40
37
35
33
31
30
Dwell 46 chirps
-
54
51
47
45
42
39
37
35
33
31
29
Dwell 47 chirps
-
54
50
47
44
42
39
37
35
33
31
29
Dwell 48 chirps
-
53
50
47
44
41
39
37
35
33
31
29
Dwell 49 chirps
-
53
50
47
44
41
39
36
34
32
30
29
Dwell 50 chirps
-
53
50
56
44
41
38
36
34
32
30
28
Dwell 51 chirps
-
53
49
46
43
41
38
36
34
32
30
28
Dwell 52 chirps
-
52
49
46
43
40
38
36
34
32
30
28
Dwell 53 chirps
-
52
49
46
43
40
38
35
33
31
29
28
Dwell 54 chirps
55
52
49
45
43
40
37
35
33
31
29
27
Dwell 55 chirps
55
52
48
45
42
40
37
35
33
31
29
27
Dwell 56 chirps
55
51
48
45
42
39
37
35
33
31
29
27
Dwell 57 chirps
55
51
48
45
42
39
37
34
32
30
28
27
Dwell 58 chirps
54
51
48
44
42
39
36
34
32
30
28
26
Dwell 59 chirps
54
51
47
44
41
39
36
34
32
30
28
26
Dwell 60 chirps
54
50
47
44
41
38
36
34
32
30
28
26
Dwell 61 chirps
54
50
47
44
41
38
36
33
31
29
27
26
Dwell 62 chirps
53
50
47
43
41
38
35
33
31
29
27
25
Dwell 63 chirps
53
50
46
43
40
38
35
33
31
29
27
25
Dwell 64 chirps
53
49
46
43
40
37
35
33
31
29
27
25
11½-bps
12-bps
12½-bps
13-bps
13½-bps
14-bps
14½-bps
15-bps
15½-bps
16-bps
16½-bps
17-bps

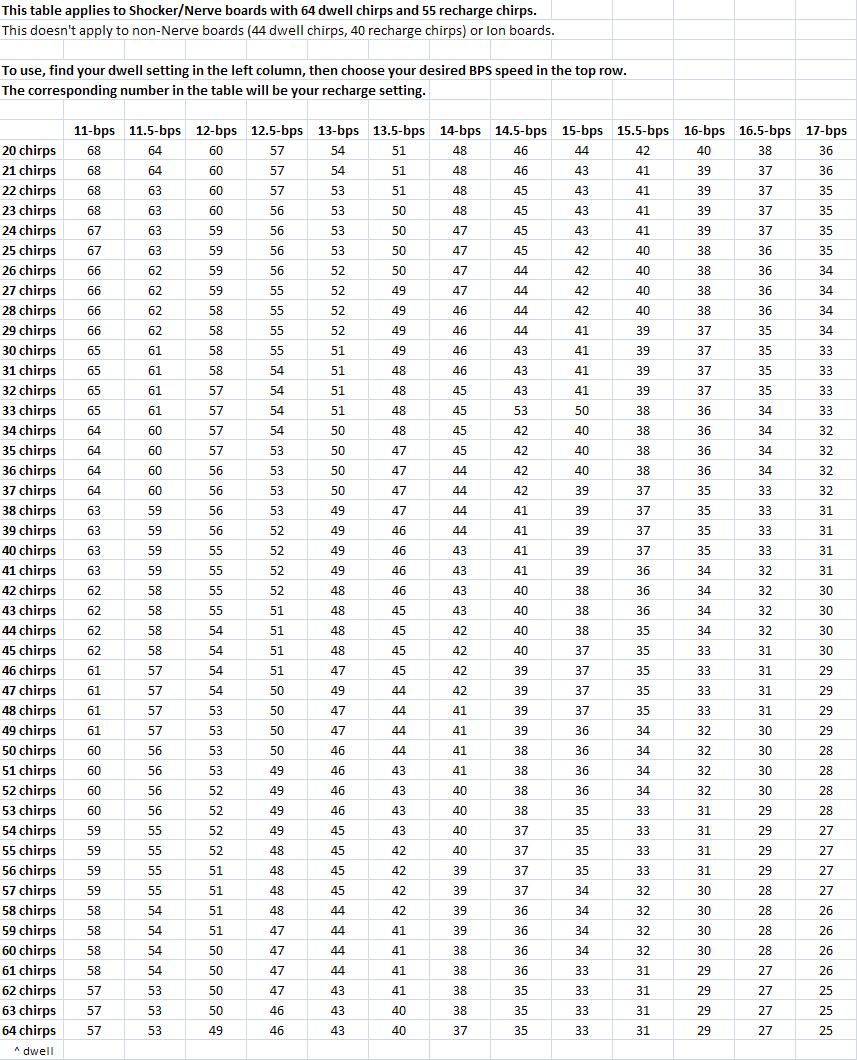

Click here for a printable picture of the above chart: Recharge chart

Tech If you wish to know the formula used to create the above chart, here it is:
(DwellChirps/4) + 18 - (1000/DesiredROF)
or DwellMilliseconds + 15 - (1000/DesiredROF)
...This will give you a negative number. Ignore the negative sign and round the number up, and that will be your recharge setting. Example: If you want to cap it at 15-bps and your dwell is set to 40, the formula will look like this:
13 + 15 - (1000/15)
(40/4) + 18 - (1000/15)
This will give you -38.6667. Ignore the negative and round it up, and you have 39.

Rebound:
Rebound is the name for the ramping modes available on the stock Nerve boards. Rebound mode will activate once you fire a certain speed; once that speed is reached, the board will quickly add shots to the current rate of fire, and the marker will fire faster than you actually pull. This speed will be limited by the recharge setting, or the hopper's maximum feed rate. If you pause for 1/4 second between firing, the mode will reset and you'll have to hit the activation speed again.

The Nerve board has five rebound modes, all of which are adjusted using the dwell buttons as well. To change the active rebound mode, push and hold in the power button while using the dwell buttons to select your desired rebound level. Pushing dwell DN will lower rebound level; dwell UP will increase it (the modes are displayed below). Note that the bottom rebound mode is the equivalent to semiauto (turns rebound mode off). Also note that, while adjusting rebound, you must push one of the dwell buttons within a period of two seconds after initially pressing the power button...or else the marker will shut off.

Rebound
Setting:
Activation ROF:
5
7-bps
4
8-bps
3
10-bps
2
12-bps
1
n/a

According to this chart, if you have the marker set to the highest rebound level, you will have to fire 7-bps in order for the mode to kick in; if you have the marker set to the next lowest rebound level, you will have to fire 8-bps; etc etc. Again, setting the board to rebound level 1 will disable the mode and fire only in semiauto. Also please note that the ROF amounts in this chart are only accurate to the nearest 0.4-bps.

Eye Sense:
Eye sense (aka eye type) determines how the board operates its eye system. This is adjustable between beam-break (stock) or reflective, and beam-break eyes have two types of their own.
· Beam-break forced: This is the stock eye mode and will work 98% of the time. In this mode, the marker will fire if a ball is detected, and not fire if a ball isn't detected.
· Beam-break toggle: This is an alternate version of the stock beam-breka eye system, which allows you to use the marker during some types of eye malfunctions. Toggle mode is used if you are experiencing a paintball rollback problem (balls rolling around in the chamber and fooling the eyes), detent problem (balls falling too far forward and fooling the eyes, also causes chopping problems). During this mode the eye system will register a ball loaded then allow the marker to fire regardless of the current state of the chamber (could be a ball loaded, or not). After the shot is fired the eye system will have to register a new ball load before it will allow you to fire again. The purpose of this mode is that, under normal conditions, if the ball moves around as described then the eyes may tell the board that no ball is loaded when there actually is one. By using this mode you will still be able to effectively fire the marker and prevent chopping.
· Reflective (toggle): This mode is used if the marker has reflective eyes from a previous Shocker installed.

Eye sense modes are adjusted on board startup, as described below:
· To select beam-break forced, hold the dwell UP button while turning the marker on.
· To select beam-break toggle, hold the dwell DN button while turning the marker on.
· To select reflective, hold both the dwell UP and DN buttons while turning the marker on.
The current board setting will be used each time you turn the marker on, until you change it to something else.

Demonstrational Videos:
This is a universal Nerve board adjustment video, it applies to the following adjustments: dwell, recharge, rebound mode. NXT eye mode isn't included in this video.
Nerve board adjustment, high-res (16-MB)
Nerve board adjustment, low-res (7-MB)
This next video demonstrates activating each of the three eye sense modes. Beam-break forced, beam-break toggle, and reflective (in that order):
NXT eye sense activation
