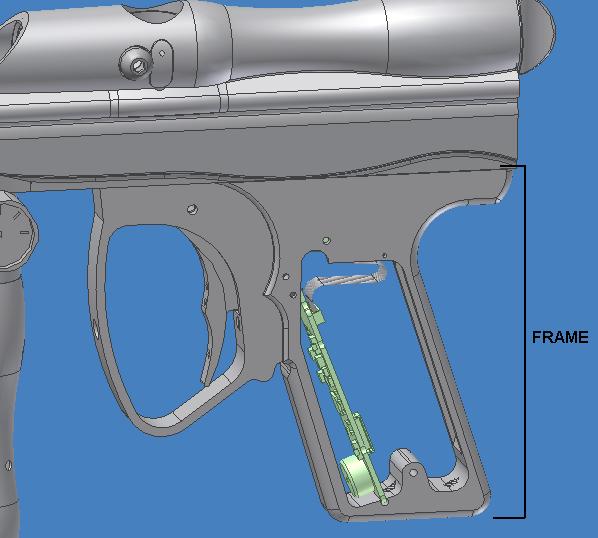

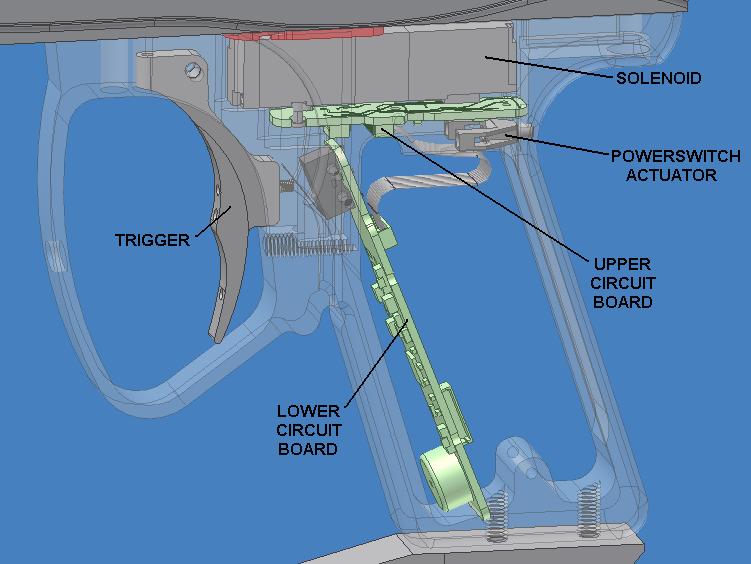

The frame of a Nerve is the grip / handle section. Its main function is to give you a platform with which to shoot (by holding it in your hand) but the frame also serves to cover and protect the marker's electronics and solenoid assembly.
The frame on a Nerve is functionally identical as the frame on a Shocker, however there are cosmetic and a few internal differences. You can use a Nerve frame on a Shocker, however some Shocker frames won't work on a Nerve (due to the trigger rest plate, explained later). The frame is held onto the body by one 10-32 x 11/16" screw in the front (1/8" allen wrench) and one other 10-32 x 1/2" screw in the rear (5/32" allen). The rear screw is countersunk into the frame for a better feel.
The only concern you need to keep in mind regarding the frame is caution during reassembly to the body. If done incorrectly the wire harness will get pinched and damage the electronics. This is explained in further detail on the powerswitch actuator page.
Trigger Rest Plate:

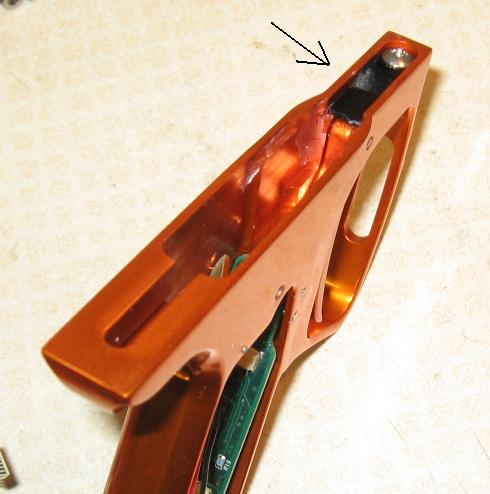

The trigger rest plate is a small piece of aluminum, located in the top of the frame, that the trigger pre-travel screw rests under. This is only present on all Nerve frames however some Shocker frames don't come with this. If the Shocker frame doesn't have this component, it won't work on a Nerve.
As a result, the trigger rest plate is required for your Nerve frame to operate correctly. Without it installed, the trigger pre-travel screw will fall into the Vision eye hole in the body (which basically makes it useless). The rest plate is held into the frame using a 6-32 x 5/16" screw (same as the grip panel screws).
Aftermarket Frames:
There are many frames available for aftermarket purchase, each with their own list of enhancements and features. For a complete list, check the Shocker frame page.
Overview:
· Caution must be taken when reassembling the frame.
· Multiple aftermarket frames are available.
