ELECTRONICS: connectors

Assorted connectors and parts for wiring are available here. Some items are OEM replacements while others are intended for custom installations.

Soldering skills are required for almost every item on this page.
· If needed, practice your soldering skills using spare wires.
· Some wires are thin and may be difficult to strip. Leave plenty of extra length in case you need to strip again.
· Double and triple check your connections when wiring up your marker. Every marker uses different wires for their components so you will need to make a diagram of your own, or find one online. Unfortunately it's not possible to use the same colors as your factory wire harness because the same connectors are used on multiple boards.
· Be sure to use heatshrink tube or electrical tape to insulate your solder connections. A small amount of heatshrink is included with every item on this page.

Wire pigtails:

Bare wire pigtails:
Bare wire pigtails
Bare wire pigtails
Connector comparison
Connector comparison

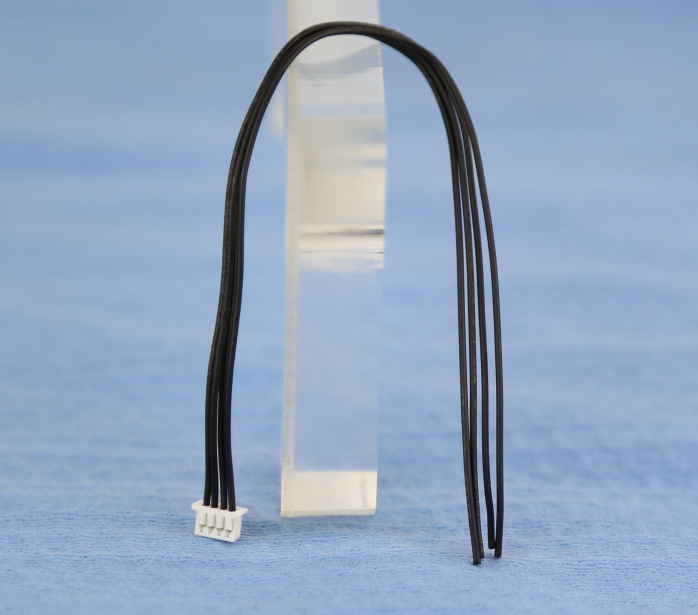

· All pigtails ship with 6 inches of black wire pre-attached to the header. The wires are ready to be trimmed, stripped, and soldered.

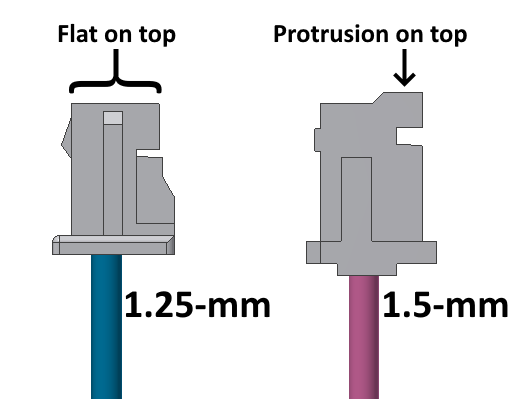

Identification: check your current wire harness. The 1.25mm connectors are flat on top whereas 1.5mm connectors have a small protrusion sticking out (see picture)

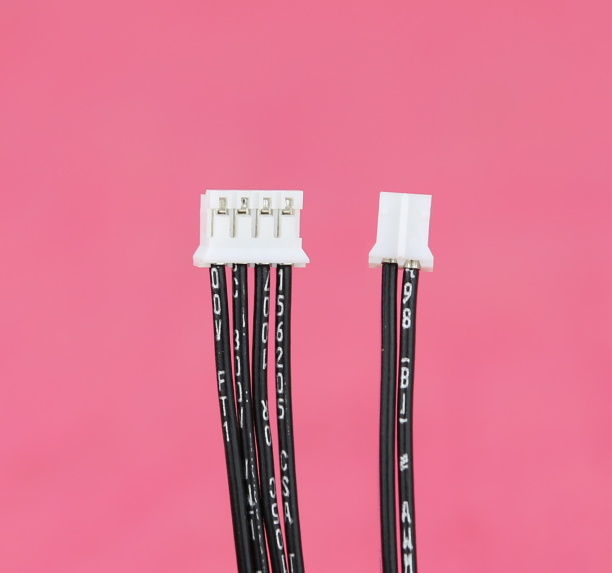

1.25mm wire pigtail
$4.99 each
Type:
1.25mm pigtail
1.25mm pigtail (4-pin and 2-pin shown)
Molex 1.25mm connectors are the most connector style used for paintball markers; they're found on the following platforms:
· AKALMP boards
· Bob Long boards
· DLX Luxe boards
· Dangerous Power boards
· Diablo Wrath
· DM3 Matrix LCD
· Eclipse Ego and E-blade boards
· FEP Quest solenoid
· Field-One boards
· Invert/Empire Mini/Axe/TM
· Empire Vanquish boards
· J4 Torque boards
· MacDev boards
· Many aftermarket Virtue boards
· PredatorII board
· Tadao Ion board
· Others

1.5mm wire pigtail
$4.99 each
Type:
1.5mm pigtail

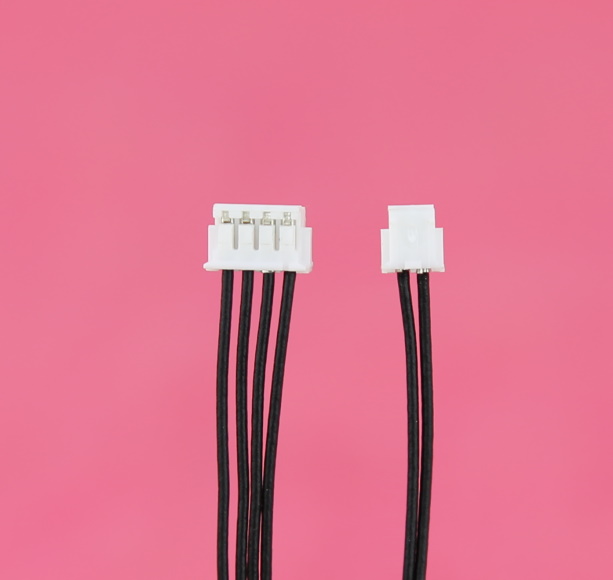

1.5mm pigtail (4-pin and 2-pin shown)
Japanese 1.5mm connectors are used on many markers in various configurations; they're found on the following platforms:
· WDP/APS Angel boards
· Dye DM boards
· Dye Ultralite frame boards
· Proto Matrix boards
· SP Shocker RSX/XLS boards
· JT Impulse boards
· Halo boards
· Others

2.0mm wire pigtail
$4.99 each
Type:
2.0mm pigtail
2.0mm pigtail (4-pin and 2-pin shown)
The larger 2.0mm connectors are used on a few types of equipment:
· 2-pin: Smart Parts Impulse
· 3-pin: Draxxus Pulse RF transmitters (remove the center wire)
· 4-pin: Smart Parts Shocker Sport 1998-2002

1.0mm wire pigtail
$4.99 each
Out of stock
1.0mm pigtail
Pico-Blade pigtail
The small Japanese 1.0mm connectors are uncommon due to their tiny size, but they can be found on some markers:
· J4 Torque (eyes)
· Smart Parts Shocker SFT/Nerve (10-pin) and Ion (4-pin). The double-ended wire harness are purchased as a complete unit further down the page.

Molex 2.0mm "Milli-Grid" crimp housing
$0.99 each
Type:
Milli-Grid crimp housing
Milli-Grid crimp housing

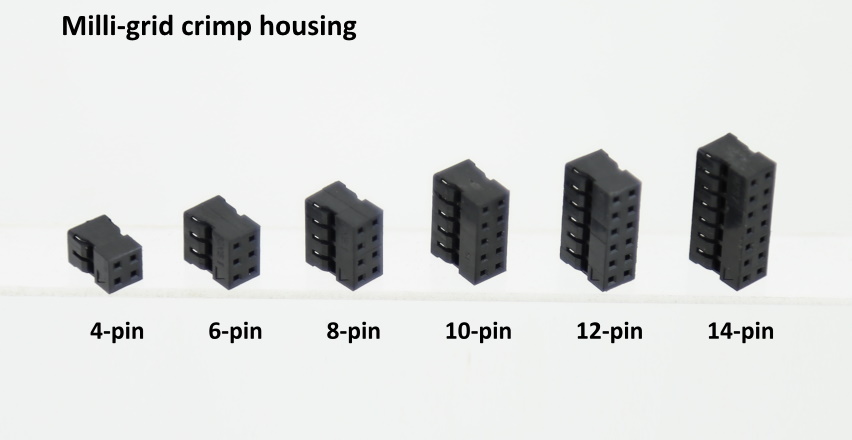

Milli-grid wire harnesses are used in some older markers (listed below). You can build your own Milli-grid connector using pre-crimped wires and a crimp housing to hold them.
· 4-pin: (nothing?)
· 6-pin: NME boards, some DM3 boards
· 8-pin: NME, Shocker Sport HSW S-Frame, some DM3 boards
· 10-pin: (nothing?)
· 12-pin: Bushmaster (including Chaos boards), Morlock boards, Intimidator, Freestyle.
· 14-pin: Intimidator
The below pre-crimped wires are inserted into this housing to form a functional pigtail connector.
This ships as an empty housing as shown in the picture; nothing else included.
Instructions for assembling a Milli-Grid connector can be found in the tech section.

Molex 2.0mm "Milli-Grid" pre-crimped wire
$0.99 each
Color:
Milli-Grid pre-crimped wire
Milli-Grid pre-crimped wire

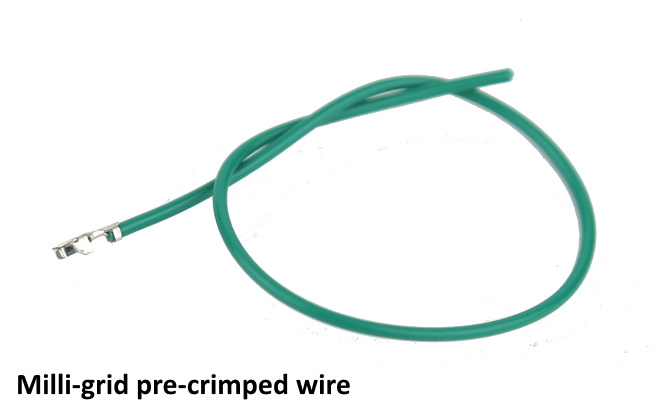

This is a pre-crimped wire that is used to form a pigtail used by the Milli-Grid connectors. This wire plugs into a crimp housing (below) to form a pigtail.
The markers that use this series connector are listed below.
This ships as a bare 3 inches (7.5 millimeters) of 26 gauge wire, with one end crimped. You'll need multiple pre-crimped wires to form a complete pigtail.
· Available in black, red, blue, green, or yellow.

9v battery connector
$0.65 each
Type:
9v battery connectors
9v battery connectors

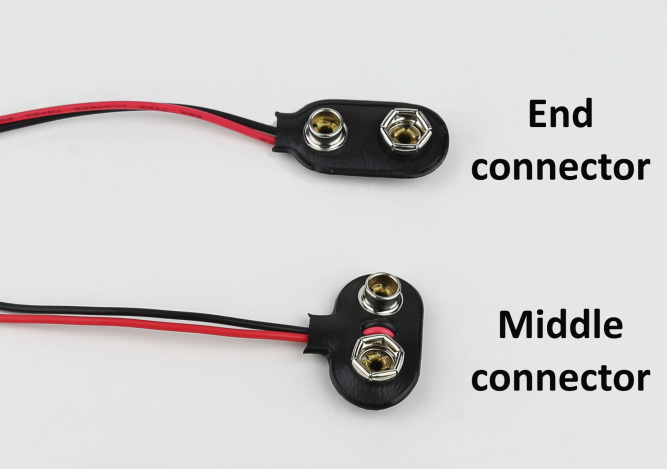

Connectors for 9v batteries, suitable for just about every electronic marker out there that uses one. The connector has eight inches of wire and comes in two types:
· Middle snap: Wires connect to the middle/side of the battery snap. This is suggested for Shockers and Nerves, or other markers with a small battery compartment.
· End snap: Wires connect to the end of the battery snap. This is suggested for Ions, Impulses, Shocker Sports, or other markers with larger space available for the battery to sit.

Complete Wire Harnesses:

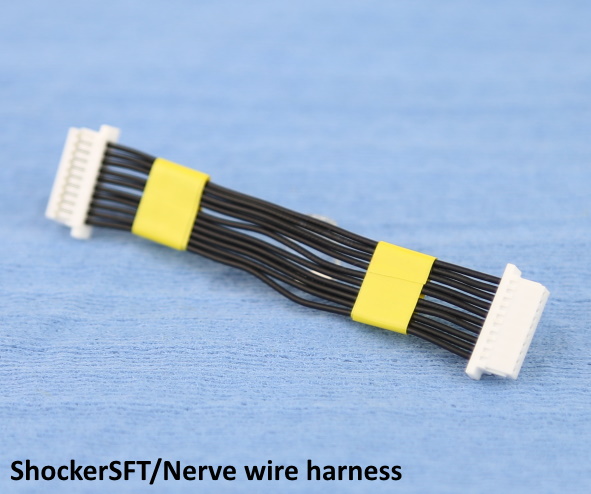

Shocker/Nerve wire harness
$9.99 each
Out of stock

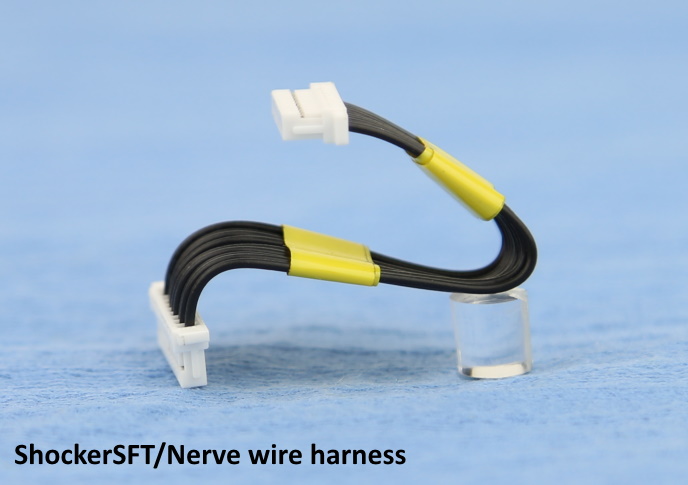

SFT wire harness
Shocker/Nerve wire harness
SFT wire harness
Shocker/Nerve wire harness
SFT wire harness
Shocker/Nerve wire harness
Used with all Shocker/Nerve circuit boards. The marker's upper and lower boards are connected together using this 10-pin wire harness.

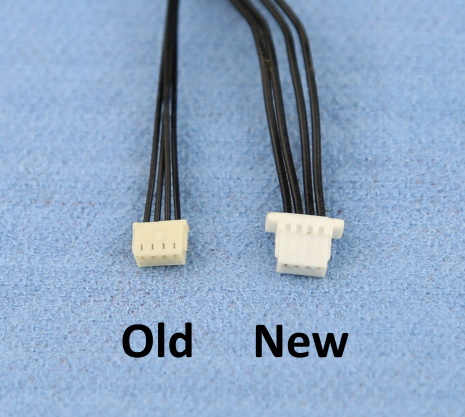

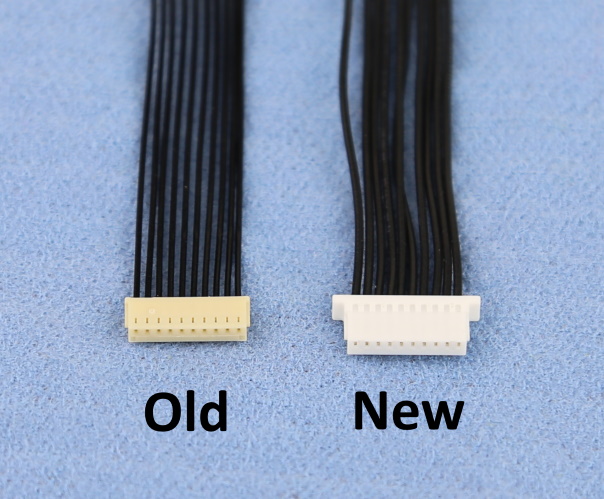

This wire harness is updated and has "protrusions" on the plugs, which allow easier removal and installation. The wires are also thicker.

Ion eye wire harness
$4.99 each
Out of stock

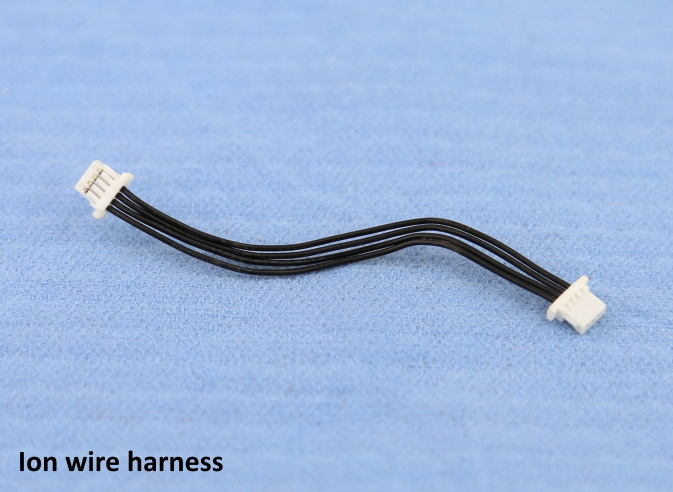

Ion wire harness
Ion wire harness
Ion wire harness
Ion wire harness
Used with all Ion circuit boards. The marker's mainboard and eye-board are connected together using this 4-pint wire harness.
This wire harness is updated and has "protrusions" on the plugs, which allow easier removal and installation. The wires are also thicker.

Board Connector Headers:

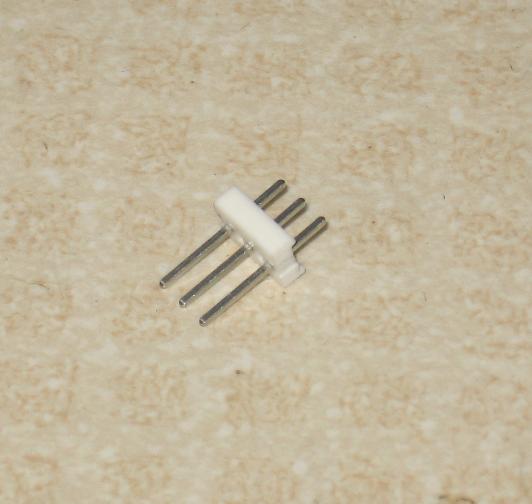

Ion membrane pad connector
$1.50 each
Membrane pad connector
Membrane pad connector
Male connector that is compatible with the Dye DM4/5/C membrane pad. The spacing between each solder terminal is 0.100 inches.
This is not for use with a DM4/5 board, rather it's commonly used for custom modifications that involve installing a membrane pad on another marker.

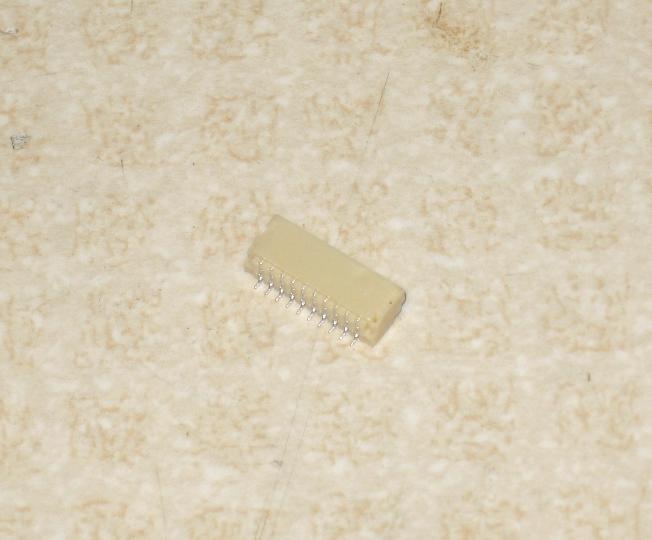

Shocker/Nerve wire harness connector
$4 each
Shocker/Nerve wire harness connector
Shocker/Nerve wire harness connector
Replacement crimp connector header for the Shocker and Nerve wire harness. This will work with the stock upper and lower board, as well as all aftermarket boards. Precision soldering skills required to install.
Ships as pictured, header only; no wire harness is included.

Ion eye wire connector
$3 each
Type:
Ion eye harness connector
Ion eye harness connector

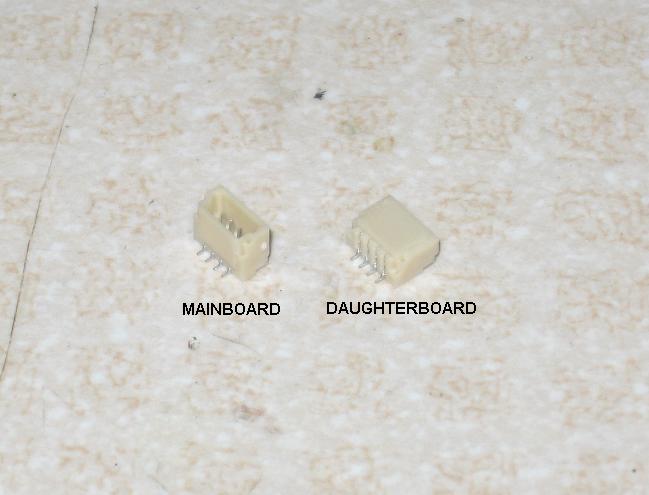

Replacement crimp connector header for the Ion eye wire harness. Choose between the top-entry (located on the mainboard) or the side-entry (located on the eye daughterboard). These will work with the stock and all aftermarket boards. Precision soldering skills required to install.
Ships as pictured, header only; no wire harness is included.
